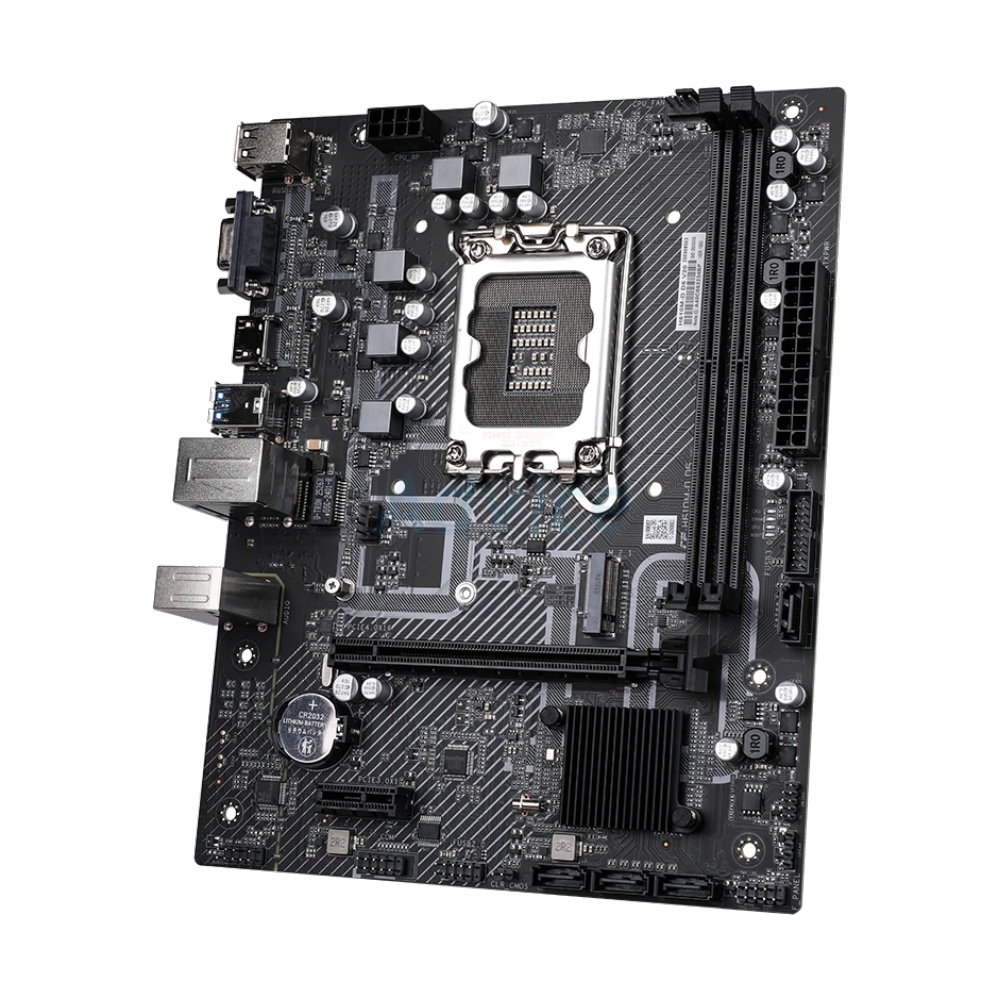

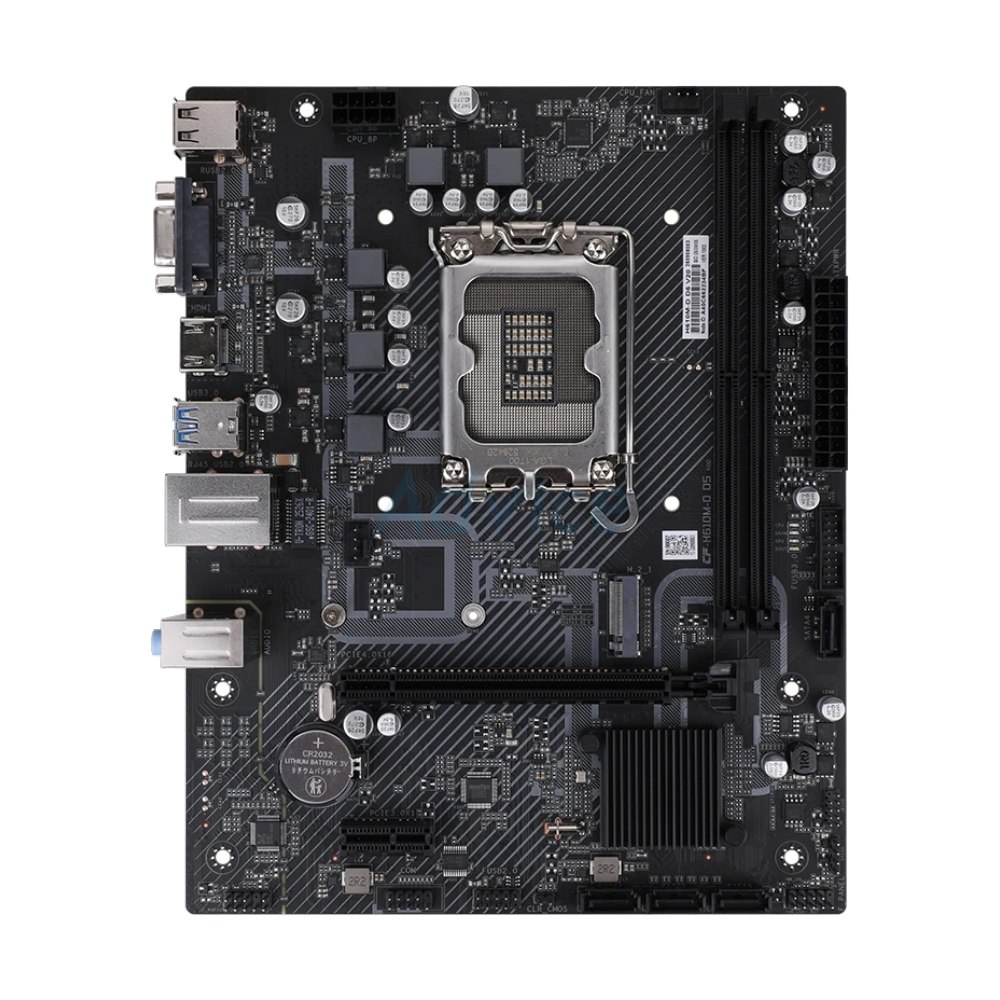

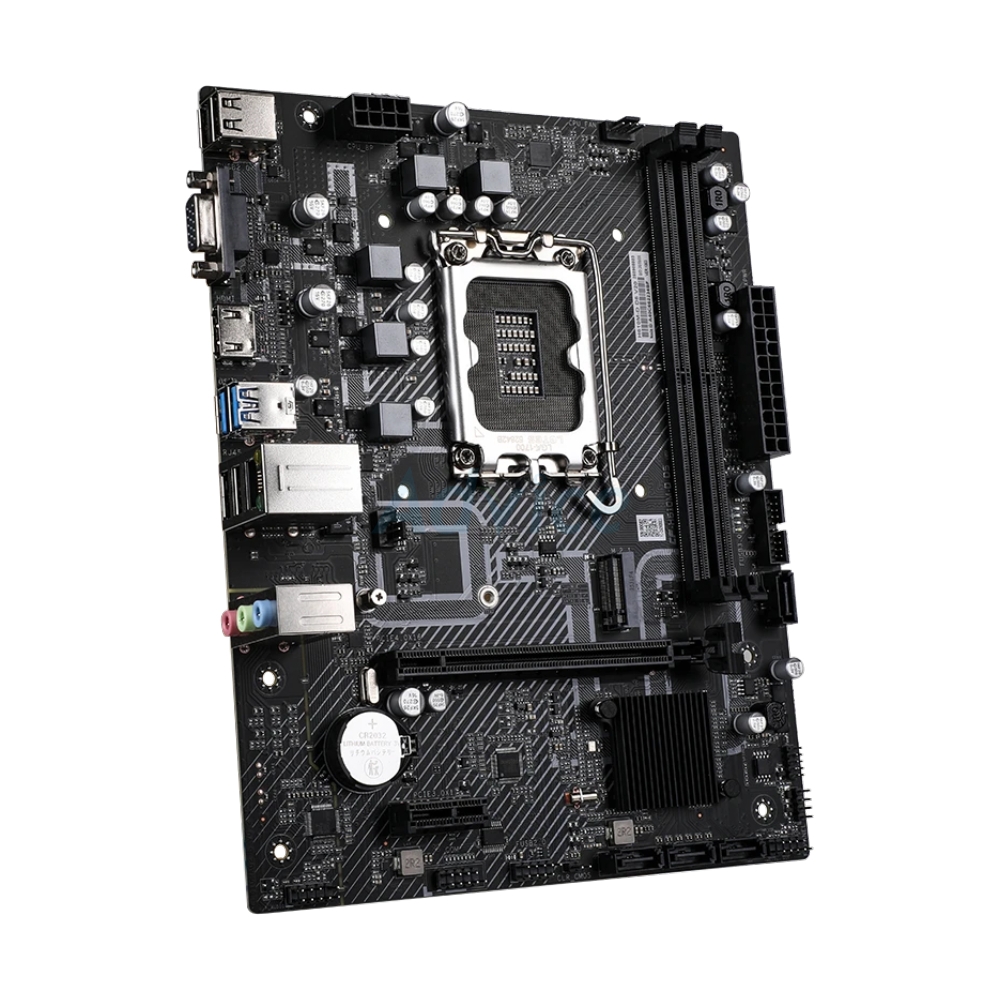

MAINBOARD (1700) COLORFUL H610M-D V20 DDR5
- Support CPU : 14th / 13th / 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors
- Form Factor : Micro ATX
- Chipset : Intel H610 Chipset
- Memory Channel : Dual Channel DDR5 2DIMM
- Memory Support : up to 5600
- Memory MAX : 96GB
- M.2 Slot : 1 slot
- SATA III 6G : 4 ports
- PCIe 4.0x16 : 1 slot
- Lan Port : 1 Gigabit LAN
- Equipped with a Realtek ALC897 audio chip, supporting up to 5.1 channels
ข้อมูลผลิตภัณฑ์
H610M-D D5 V20 DDR5
Support the 14th/13th and 12th generation Intel adapting to the LGA 1700 slot of the motherboard ® Core TM, Pentium ® And Cylon ® processor
(* Please visit www.colorful.cn for the latest memory compatibility list)
Intel
1700
Intel H610
2 x DDR5 memory sockets are provided, which can support up to 96 GB of memory (a single socket can support up to 48 GB of memory)
Paired with 13th generation Intel ® Core ™ i9/i7 processors:
- Support DDR5-5600/5400/5200/5000/4800MHz memory
Paired with 13th generation Intel ® Core ™ i5/i3 processors and 12th generation Intel ® Core ™, Pentium ® And Cylon ® processors
- Support DDR5-4800MHz memory
- Supports dual channel memory technology
(* Please visit www.colorful.cn for the latest memory compatibility list)
5600
1 x HDMI 1.4 interface, supporting up to 4K 30Hz resolution
1 x VGA interface
None
Realtek ALC897 high-fidelity decoding chip, supports 5.1 channels
1 x PCIe 4.0 x16 slot
1 x PCIe 3.0 x1 slot
PCIe 4.0
1 x M.2 slot and 4 x SATA 6Gb/s hard disk interfaces
-M.2 slot: supports 2242/2280 specification M.2 SSD (PCIe 3.0 x4, PCH channel)
NVMe
1

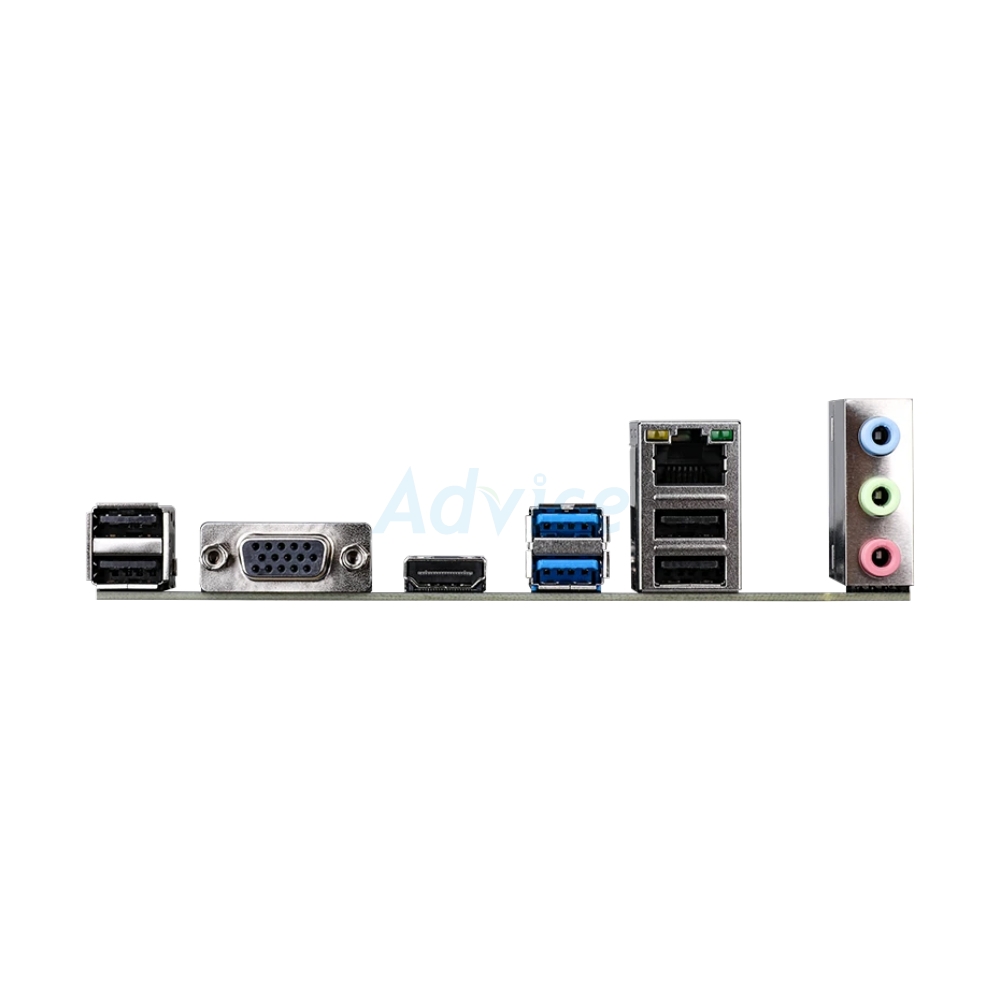

Back Panel
4 x USB 2.0 interfaces
2 x USB 3.2 Gen 1 Type-A interfaces
Internal
1 x USB 2.0 pin can be expanded to 2 USB 2.0 Type-A interfaces
1 x USB 3.2 Gen 1 pin can be expanded to 2 USB 3.2 Gen 1 Type-A interfaces
1 x CPU fan pin
1 x System fan pin
1 x USB 2.0 pin can be expanded to 2 USB 2.0 Type-A interfaces
1 x USB 3.2 Gen 1 pin can be expanded to 2 USB 3.2 Gen 1 Type-A interfaces
1 x Front audio pin
1 x Front panel pin
1 x Speaker pin
1 x Clear CMOS jumper
1 x BIOS burner pin
1 x COM port pin
4 x USB 2.0 interfaces
2 x USB 3.2 Gen 1 Type-A interfaces
1 x HDMI 1.4 interface, supporting up to 4K 30Hz resolution
1 x VGA interface
1 x Gigabit network interface
3 x Audio interfaces (audio input/audio output/microphone)
RTL8111H Gigabit network card
None
Micro ATX
CPU fan speed controllable, system fan speed controllable, CPU temperature monitoring, System temperature monitoring, and each group voltage monitoring
128M UEFI, support multiple languages
Support S3, S4, network S5 wake-up, support scheduled startup, call startup
N/A
Windows 11
