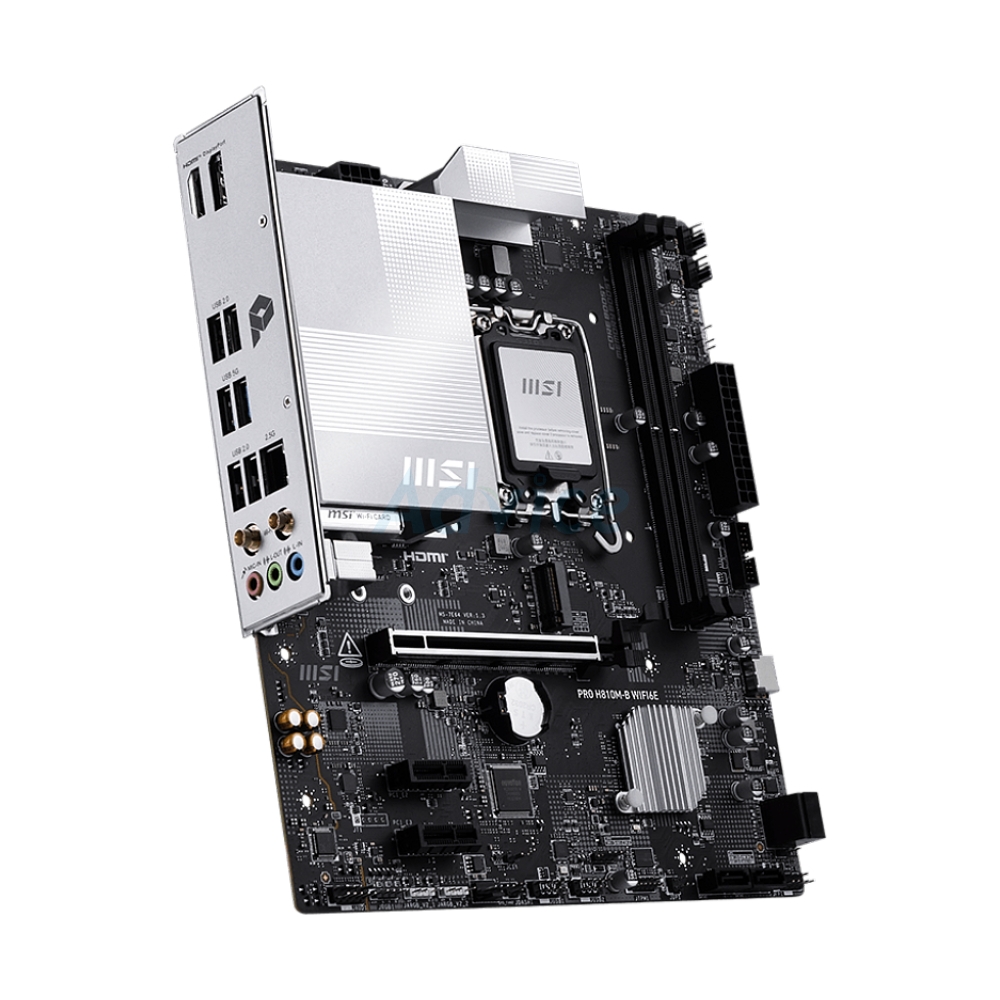

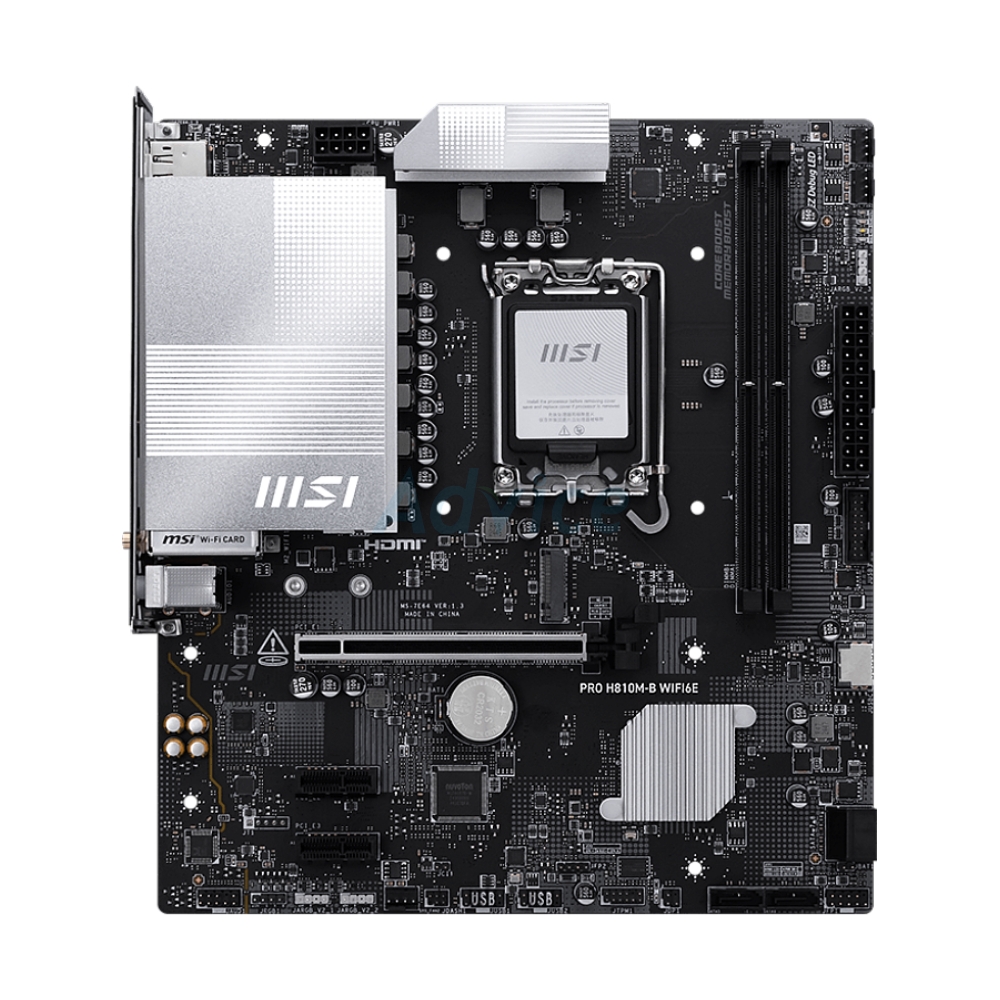

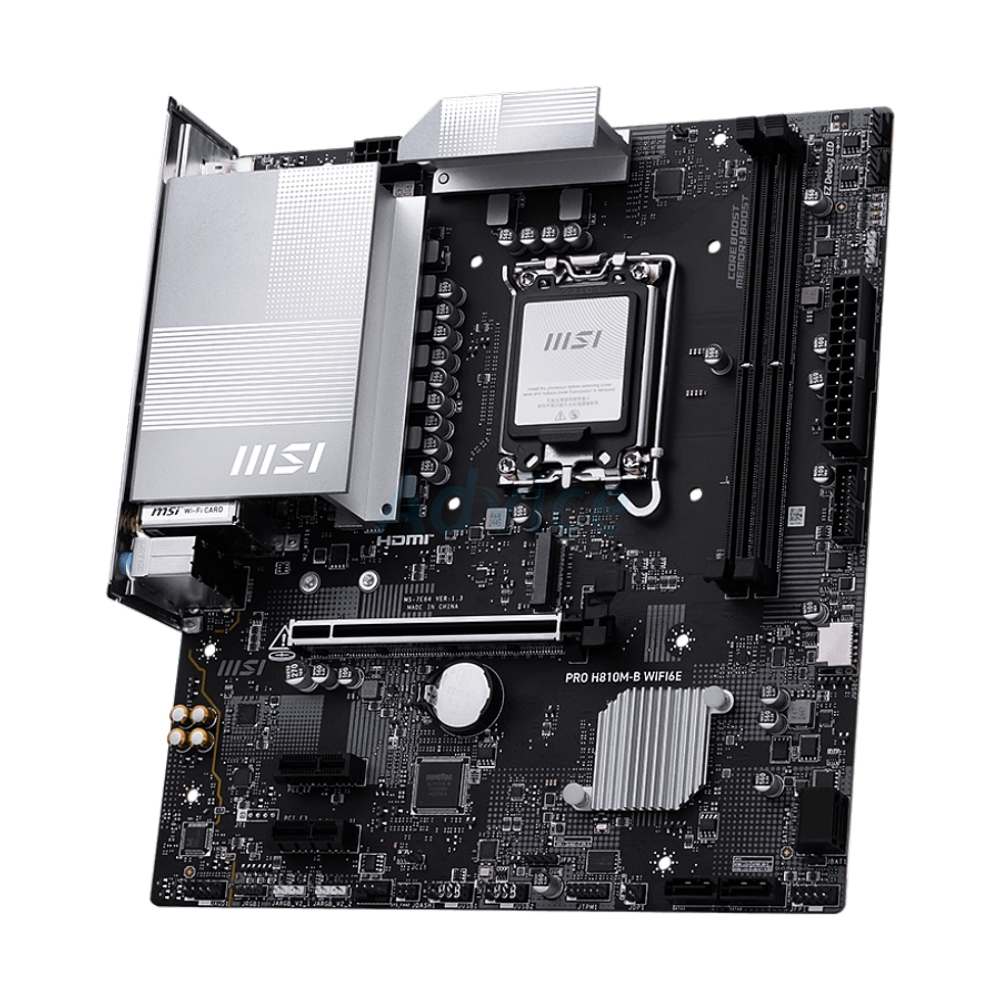

MAINBOARD (1851) MSI PRO H810M-B WIFI6E DDR5
- Support CPU : Intel Core Ultra Processors (Series 2)
- Form Factor : Micro ATX
- Chipset : Intel H810 Chipset
- Memory Channel : Dual Channel DDR5 2DIMM
- Memory Support : up to 6400
- Memory MAX : 128GB
- M.2 Slot : 1 slot
- SATA III 6G : 4 ports
- PCIe 5.0x16 : 1 slot
- Lan Port : 2.5 Gigabit LAN
- Wireless : Wi-Fi 6E
- Core Boost: With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability, and compatibility
- Frozr Guard: Extended Heatsink and MOSFET thermal pads rated for 7W/mK are built for high performance system and non-stop experience
- EZ DIY: EZ M.2 Clip II and EZ PCIe Clip II
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
รายละเอียดสินค้า
อ้างอิงจาก : www.msi.com
ข้อมูลผลิตภัณฑ์

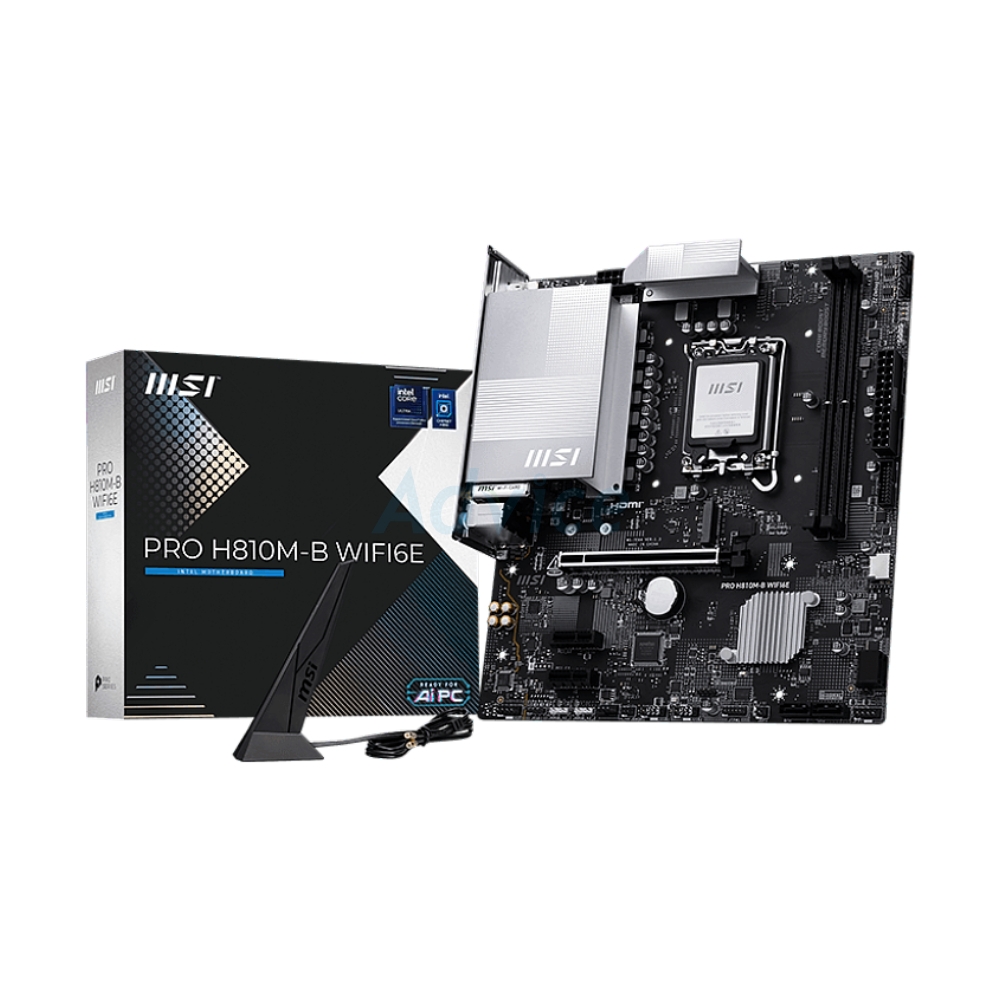

PRO H810M-B WIFI6E
Supports Intel® Core™ Ultra Processors (Series 2)
LGA 1851
Intel
1851
Intel H810
2 x DDR5 UDIMM, Maximum Memory Capacity 128GB
Memory Support DDR5 6400 - 4800 (JEDEC) MT/s
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6400 MT/s
• 1DPC 2R Max speed up to 6400 MT/s
Supports Intel® POR Speed and JEDEC Speed
Supports Intel® XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM
• The DIMM slots on this motherboard have double-sided latches.
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
6400
1 x HDMI™
Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
1 x DisplayPort
Support DisplayPort 1.4, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
N/A
Realtek® ALC897 Codec
7.1-Channel High Definition Audio
1 x PCI-E x16 slot
2 x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)
PCIe 5.0
1 x M.2
M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4 x SATA 6G
*Please refer to the manual for M.2 SSD heatsink restrictions.
NVMe
1
4 x USB 2.0 (Rear)
4 x USB 2.0 (Front)
2 x USB 5Gbps Type A (Rear)
2 x USB 5Gbps Type A (Front)
1 x USB 10Gbps Type C (Front)
1 x Power Connector(ATX_PWR)
1 x Power Connector(CPU_PWR)
1 x CPU Fan
2 x System Fan
2 x Front Panel (JFP)
1 x Chassis Intrusion (JCI)
1 x Front Audio (JAUD)
1 x Tuning Controller connector(JDASH)
3 x Addressable V2 RGB LED connector (JARGB_V2)
1 x RGB LED connector(JRGB)
1 x TPM pin header(Support TPM 2.0)

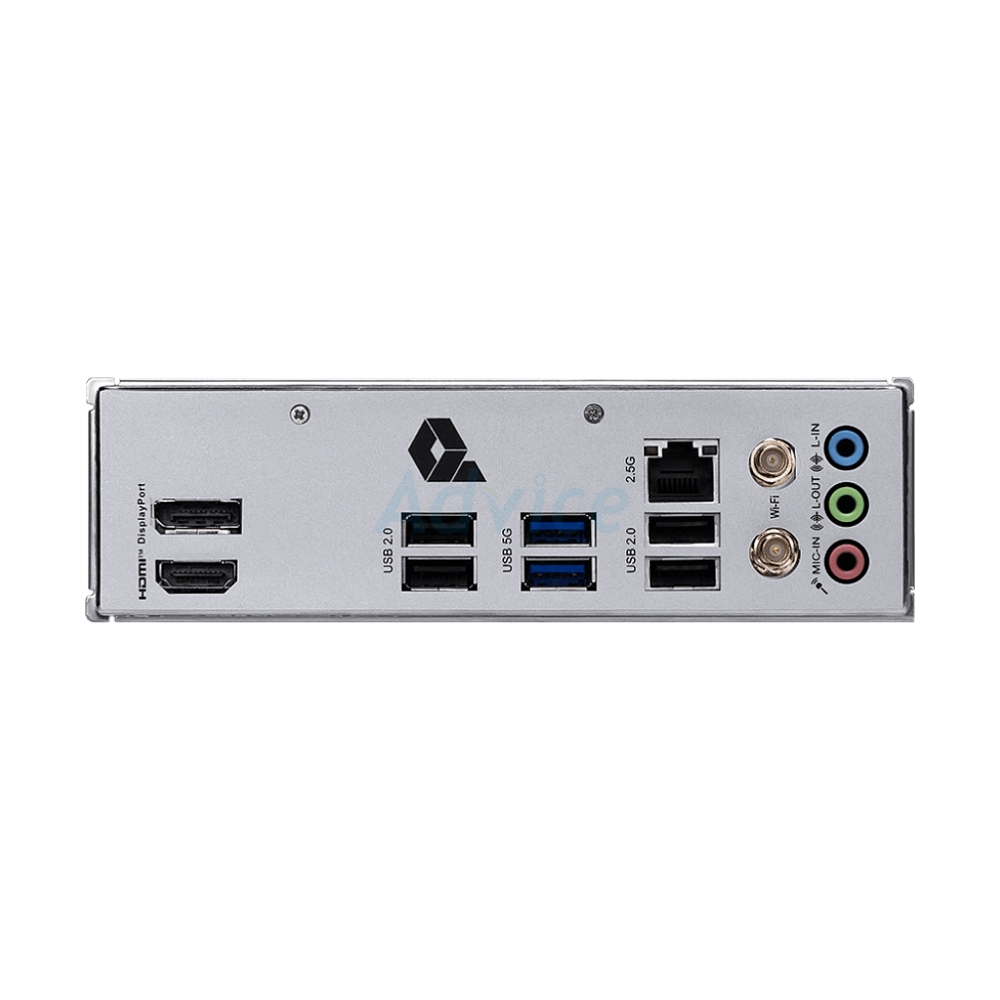

4 x USB 2.0 ports
2 x USB 5Gbps Type A ports
1 x USB 10Gbps Type C ports
4 x USB 2.0
2 x USB 5Gbps Type-A
1 x DisplayPort
1 x HDMI
Audio Connectors
2.5G LAN
Wi-Fi / Bluetooth
Realtek® 8125 2.5Gbps LAN
Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.3**, FIPS, FISMA
* 6GHz band support may depend on every country’s regulations and Wi-Fi 6E will be ready in Windows 11 version 24H2.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
Micro ATX
N/A
N/A
LED FEATURE
4 x EZ Debug LED
1 x EZ Memory Detection LED
N/A
Support for Windows® 11 64-bit
N/A
