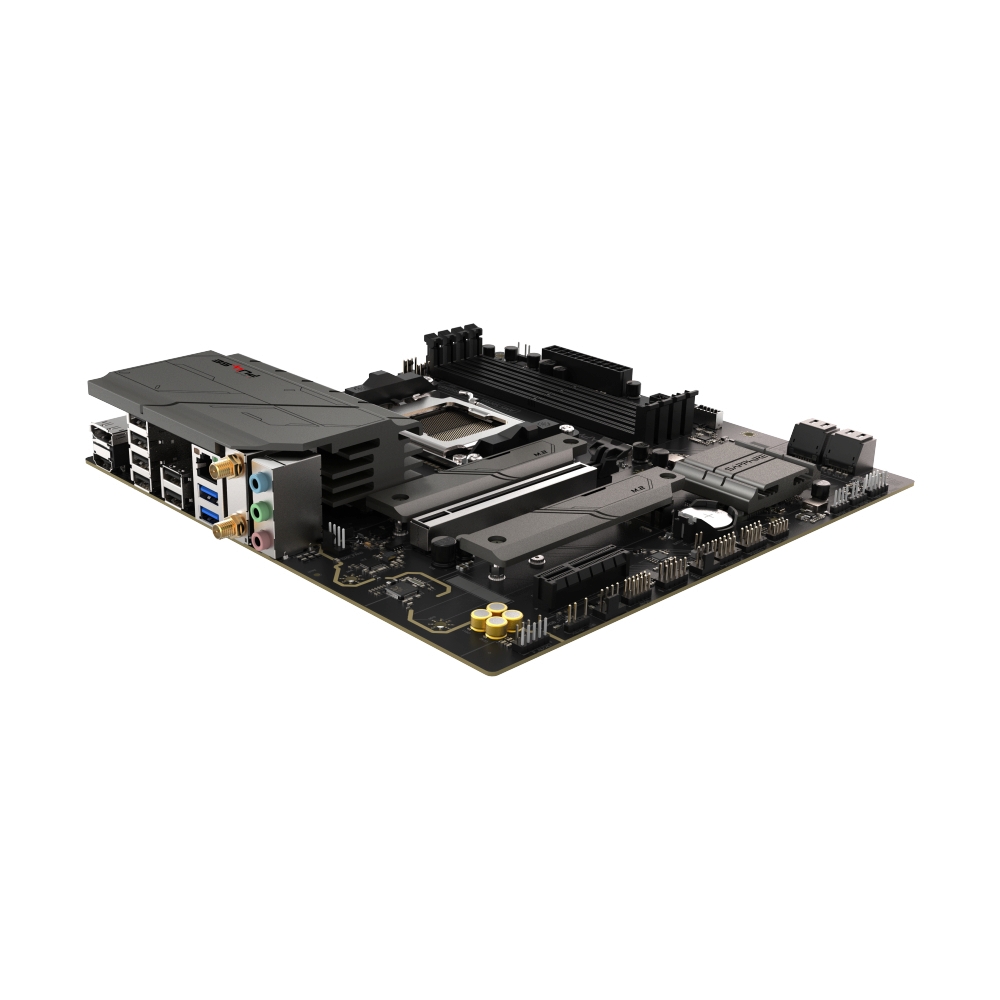

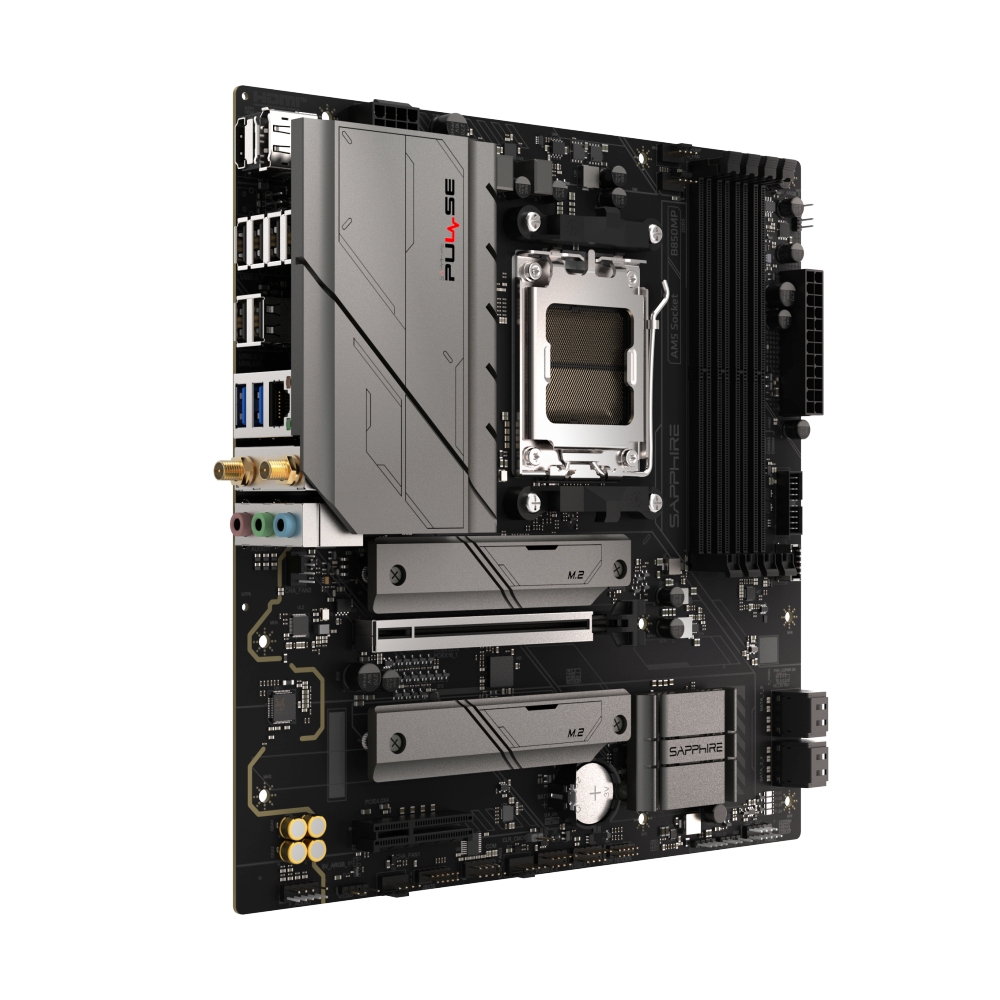

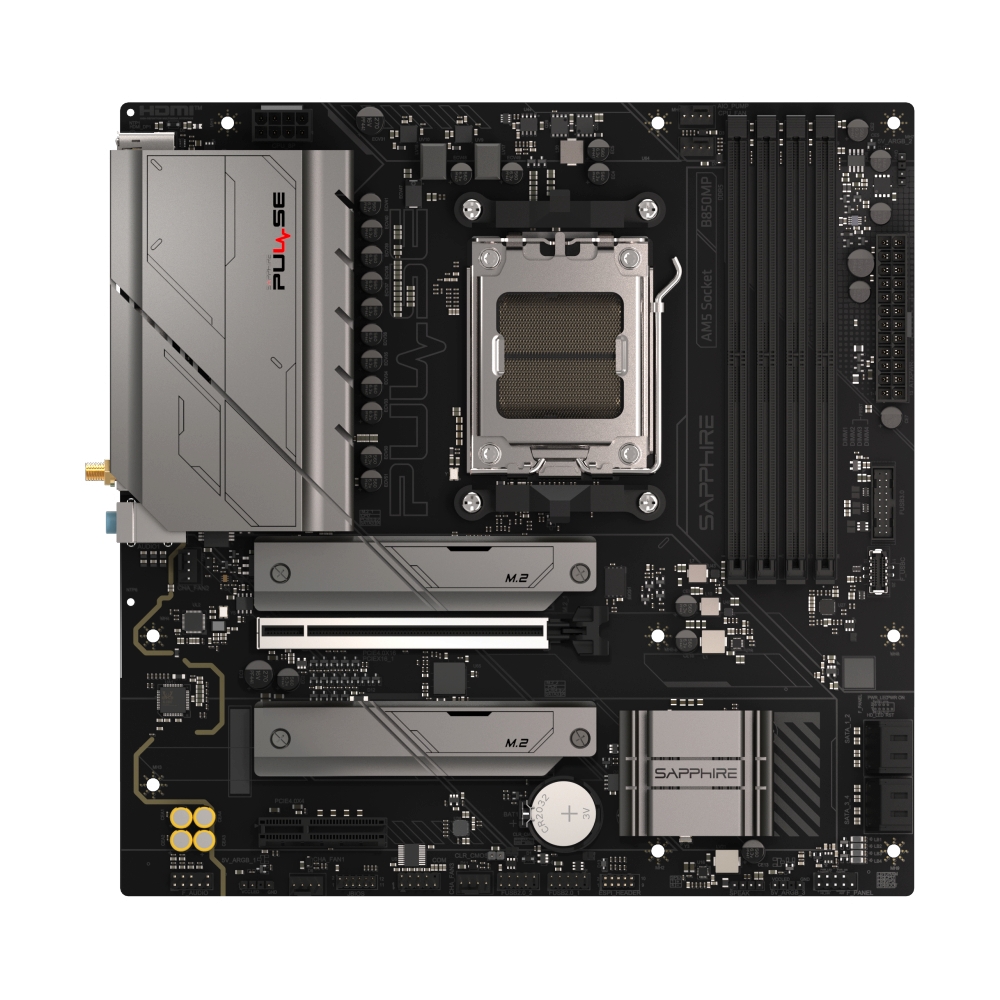

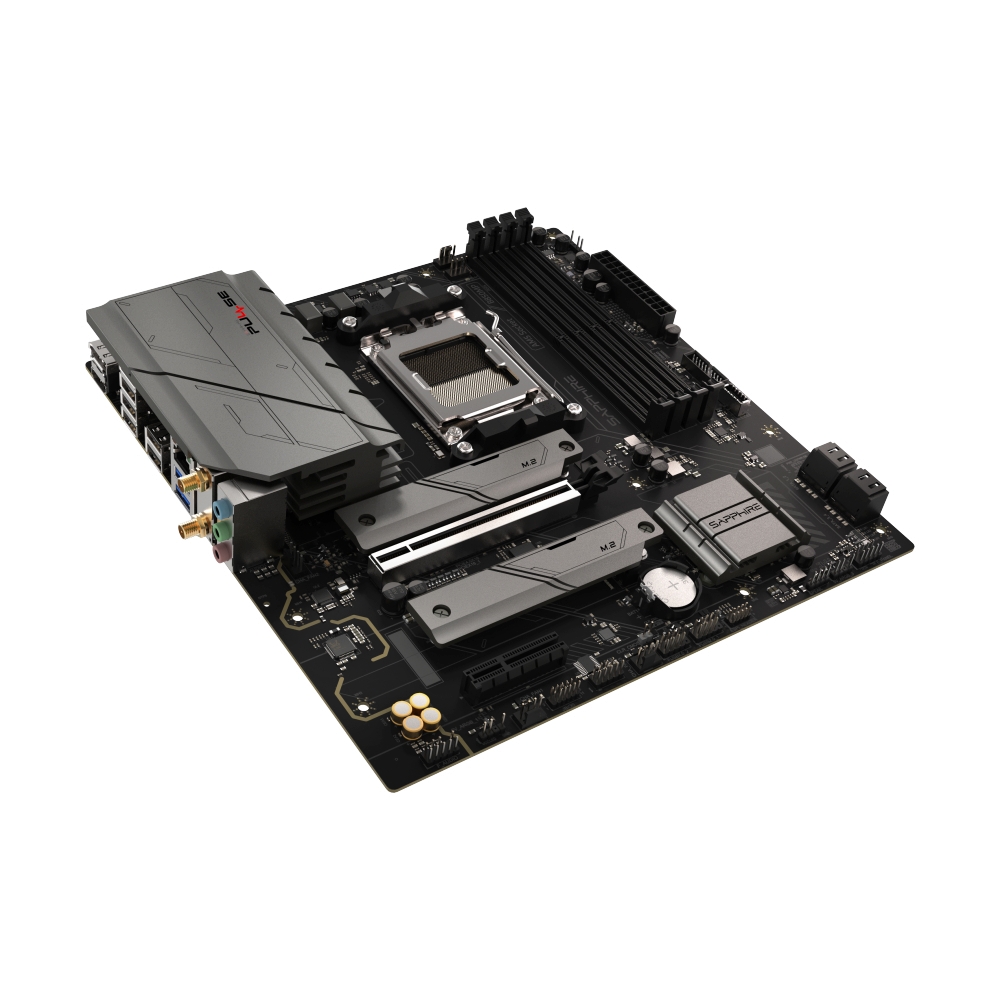

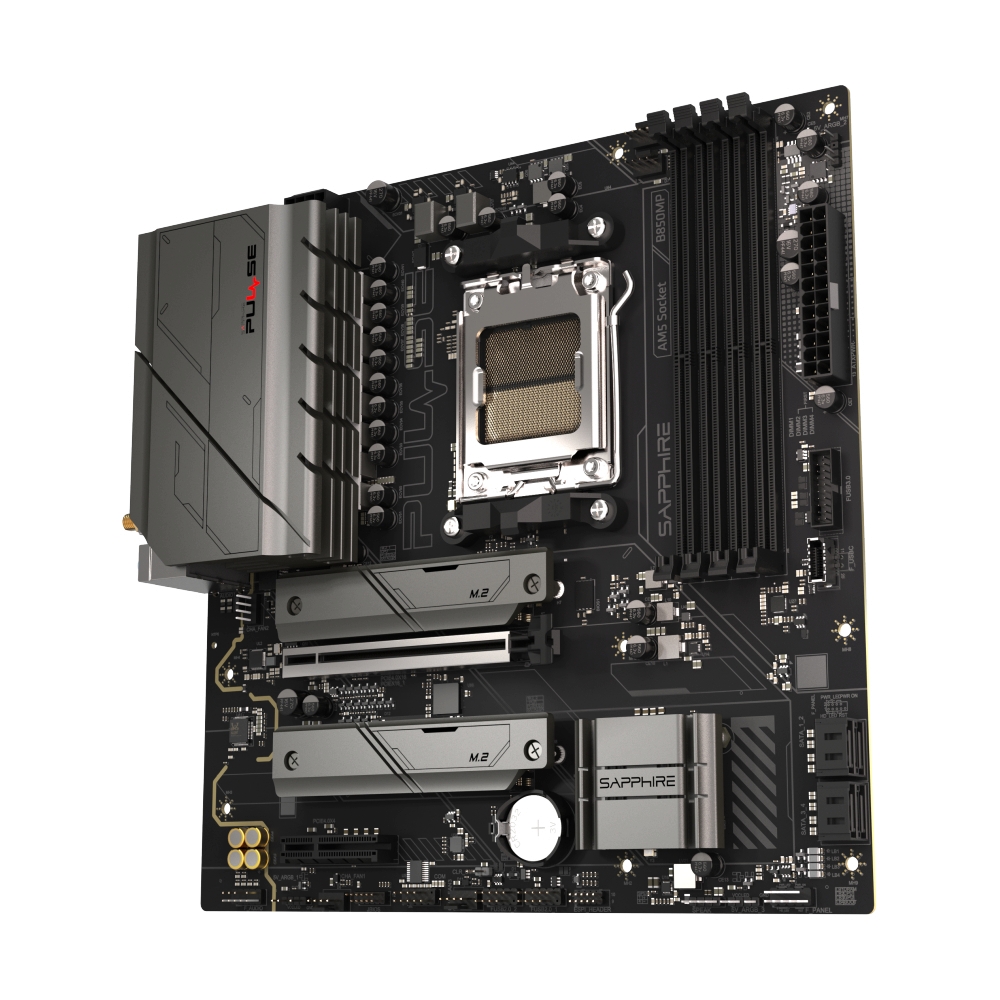

MAINBOARD (AM5) SAPPHIRE PULSE B850M WIFI DDR5
- Support CPU : AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors
- Form Factor : Micro ATX
- Chipset : AMD B850 Chipset
- Memory Channel : Dual Channel DDR5 4DIMM
- Memory Support : up to 7600(O.C.)
- Memory MAX : 192GB
- M.2 Slot : 2 slots
- SATA III 6G : 4 ports
- PCIe 4.0x16 : 1 slot
- Lan Port : 2.5 Gigabit LAN
- Wireless : Wi-Fi 6
- SAPPHIRE CORE BIOS
- 7+2+1 Phase CPU Power, 60A Per Phase,
- Robust VRM, M.2 and PCH Cooling
- PCIe 5.0 M.2 Support
รายละเอียดสินค้า
อ้างอิงจาก : www.sapphiretech.com
ข้อมูลผลิตภัณฑ์
PULSE B850M WIFI DDR5
Support AMD® Ryzen™ 7000 Series desktop processors
Support AMD® Ryzen™ 8000 Series desktop processors
Support AMD® Ryzen™ 9000 Series desktop processors
- Support AM5 socket processors
AMD
AM5
AMD B850
4 x DDR5 memory slots
- Only support DDR5 memory
- Up to 7600 MT/s (OC)
- Maximum system memory capacity: 48GB * 4 Total 192GB
- Support dual-channel memory technology
- Support Extended Profiles for Overclocking (EXPO) memory module
and Extreme Memory Profiles (XMP)
7600
1 x HDMI
1 x DisplayPort
None
Realtek® ALC897 high-fidelity decoding chip (support up to 5.1 channels)
1 x PCIE 4.0 x16 slot
1 x PCIE 4.0 x4 slot
PCIe 4.0
1 x PCIE 5.0 M.2 supports 2280/2260 specification
1 x PCIE 4.0 M.2 supports 2280/2260 specification
4 x SATA 3.0 6GB/s
NVMe
2
Front
2 x USB 2.0 pin can expand 2 USB 2.0 interfaces (FUSB2.0_1)
1 x USB 3.2 Gen 1 pin can extend 2 USB 3.2 Gen 1 Type-A interfaces (FUSB3.0)
1 x USB 3.2 Gen 1 pin can extend 1 USB 3.2 Gen 1 Type-C interface (F_USC)
Back
6 x USB 2.0 interfaces
2 x USB 3.2 GEN2 Type-A interfaces
1 x CPU fan pin (CPU_FAN)
1 x water cooling pump pin (AIO_PUMP)
3 x system fan pins (CHA_FAN1, CHA_FAN2, CHA_FAN3)
1 x front audio pin (F_AUDIO)
1 x front panel pin (F_PANEL)
3 x 5V ARGB pins (5V_ARGB_1, 5V_ARGB_2, 5V_ARGB_3)
1 x speaker pin (SPEAK)
1 x serial port pin (COM)
1 x clearing CMOS jumper (CLR_CMOS)
1 x Flash BIOS pin (FL_BIOS1)
1 x BIOS burner pin (JBIOS)
1 x diagnostic card pin (ESPI_HEADER)
1 x DisplayPort interface
1 x HDMI™ interface
6 x USB 2.0 interfaces
2 x USB 3.2 GEN2 Type-A interfaces
1 x LAN (RJ45) interface
2 x WiFi 6 antenna interfaces
3 x audio jacks
Realtek® RTL8125BG network controller
- Support 2.5G wired network
Wi-Fi 6 module
- Support 802.11 a/b/g/n/ac/ax
- Support 2.4GHz/5GHz wireless spectrum
- Support Bluetooth 5 wireless transmission
Micro ATX
N/A
N/A
Debug indicator light
- DIMM yellow indicator light
- CPU red indicator light
- GPU white indicator light
- BOOT green indicator light
N/A
Windows 11
N/A
