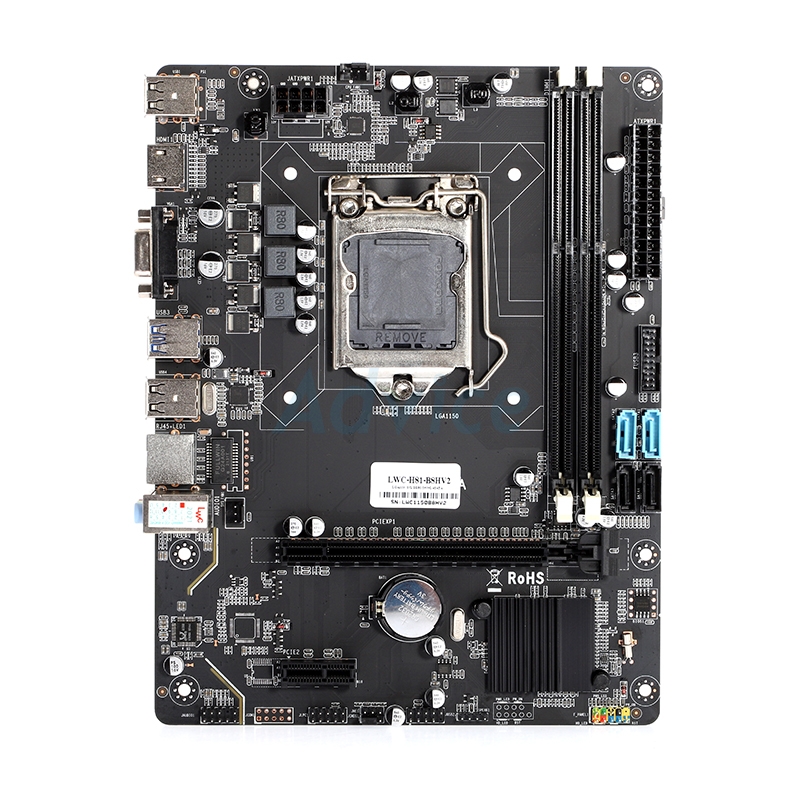

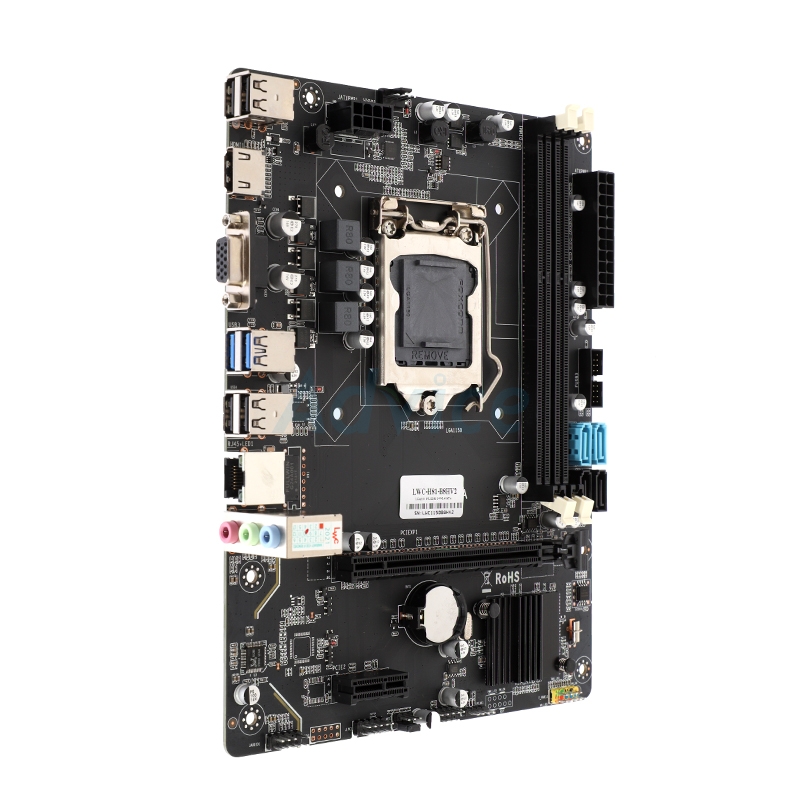

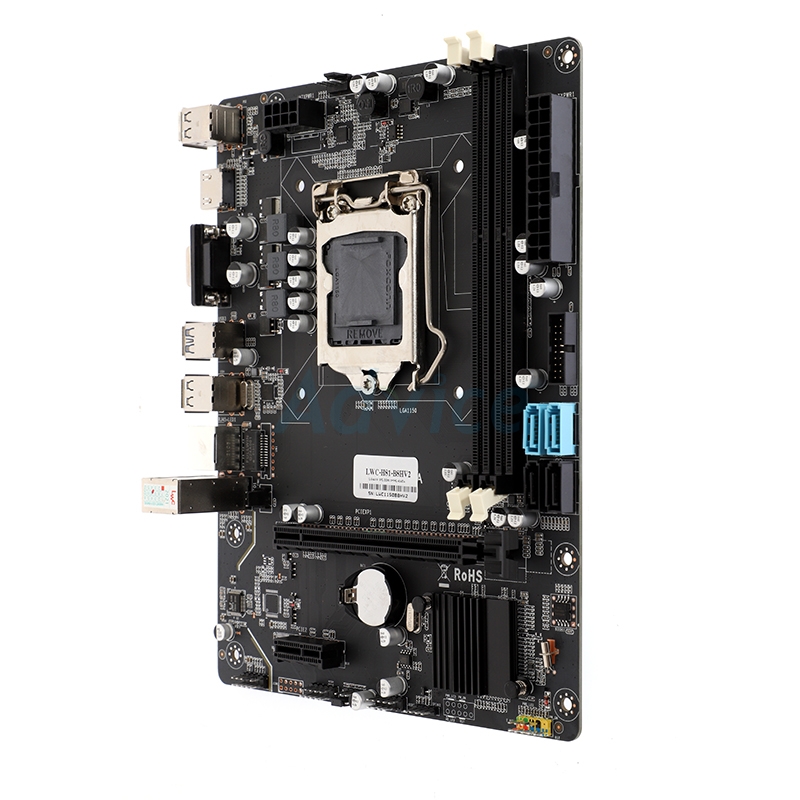

MAINBOARD (1150) LONGWELL H81-B8HV2 DDR3
- Support CPU : 4th generation Intel® Core™ i7 / Core™ i5 / Core™ i3 processors
- From Factor : Micro ATX
- Chipset : Intel H81 Chipset
- Memory Channel : Dual Channel DDR3 2DIMM
- Memory Support : up to 1600
- Memory MAX : 16GB
- M.2 Slot : 0 slot
- SATA : 4 ports
- PCIe 2.0x16 : 1 slot
- Lan Port : 1 Gigabit LAN
ข้อมูลผลิตภัณฑ์
LWC H81-B8HV2
Supports 4th generation Intel® Core™ i7 / Core™ i5 / Core™ i3 processors
Intel
1150
Intel H81
2 x DIMM Max 16GB Support DDR3-1600/1333/1066 MHz Non-ECC, Un-Buffered Memory
1600
Integrated Graphics Processor
None
Realtek® High Definition Audio Code
1 x PCI Express 2.0 x16 (x16 mode)
1 x PCI Express 2.0 x1
PCIe 2.0
2 x SATA II 3.0Gb/s Connector
2 x SATA III 6.0Gb/s Connector
None
None
N/A
1 x 24-pin EATX Power Connector
1 x 8-pin ATX 12V Power Connector
1 x CPU Fan Connector
1 x System Fan Connector
1 x F USB 3.0 connectors
1 x F USB 2.0 Connector
1 x CMOS
1 x Front Panel Audio Connector (AAFP)
1 x Speaker Connector
1 x System Panel Connector
4 x USB 2.0 Ports
2 x USB 3.0 Ports
1 x HDMI Port
1 x VGA (D-Sub) Port
1 x RJ-45 LAN port
3 x Audio Jacks: Line in / Speaker / Microphone
10/100/1000 Mb/s auto negotiation Half/Full duplex capability
None
Micro ATX
N/A
N/A
N/A
N/A
Microsoft Window 7 / 8 / 8.1 / 10
N/A
