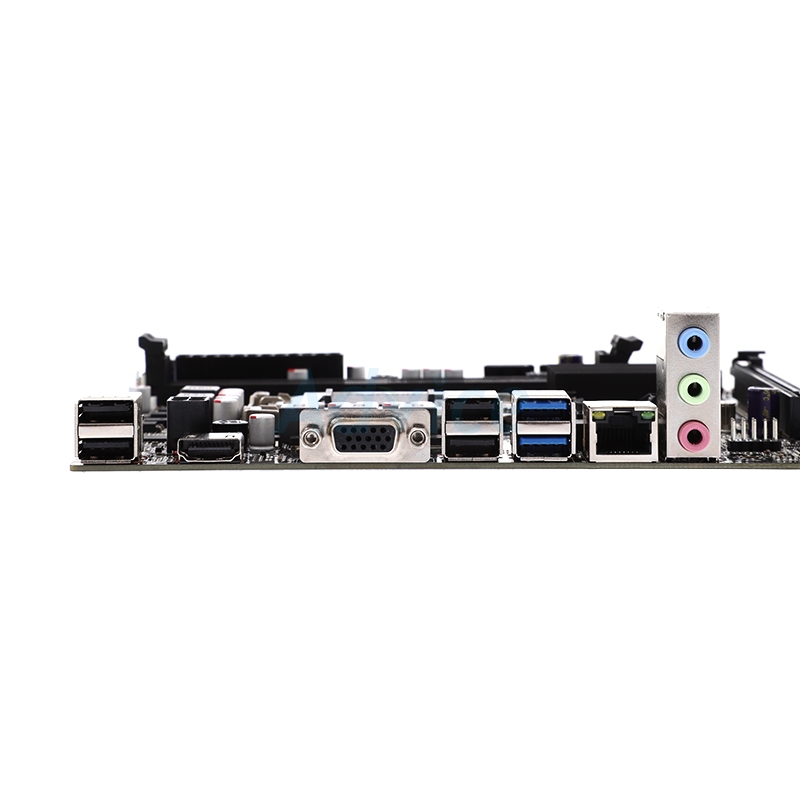

(1151) LONGWELL H110-D4C (REV.2.0)

H110-D4C (REV.2.0)

Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel®
Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron®
processors in the LGA1151 package Gen 6, 7

Intel

1151

Intel H110

2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
Due to a Windows 32-bit operating system limitation, when more than
4 GB of physical memory is installed, the actual memory size
displayed will be less than the size of the physical memory installed.

Dual channel memory architecture
Support for DDR4 2400/2133 MHz memory modules

2400

Intel® HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
Maximum shared memory of 512 MB

None

Audio Realtek® ALC662 codec
High Definition Audio
2/4/5.1-channel

1 x PCI Express x16 3.0 slot, running at x16

PCIe 3.0

1 x M.2 PCIe M.2 and M.2 SATA3 6.0 Gb/s (There are switch to enable/disable between PCIe and SATA)
Supports M.2 Type 2242/2260/2280 SSD module

3 x SATA 6Gb/s connectors

NVMe, SATA

1

3 x USB 3.0/2.0 ports (2 ports on the back panel, 1 ports available through the internal USB header)

6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB headers)

1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
3 x SATA 6Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x USB 3.0/2.0 header
1 x USB 2.0/1.1 headers
1 x Clear CMOS jumper

1 x USB2.0 mouse port
1 x USB2.0 Keyboard port
1 x VGA port
1 x HDMI port
2 x USB 3.0/2.0 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line In, Line Out, Mic In)

10/100/1000 Mb/s auto negotiation Half/Full duplex capability
Realtek® RTL8111H

None

Micro ATX

N/A

N/A

Boot Mode Support UEFI mode

N/A

Win 7-10

1 x SATA cable
1 x I/O Rear Panel
1 x User Manua
