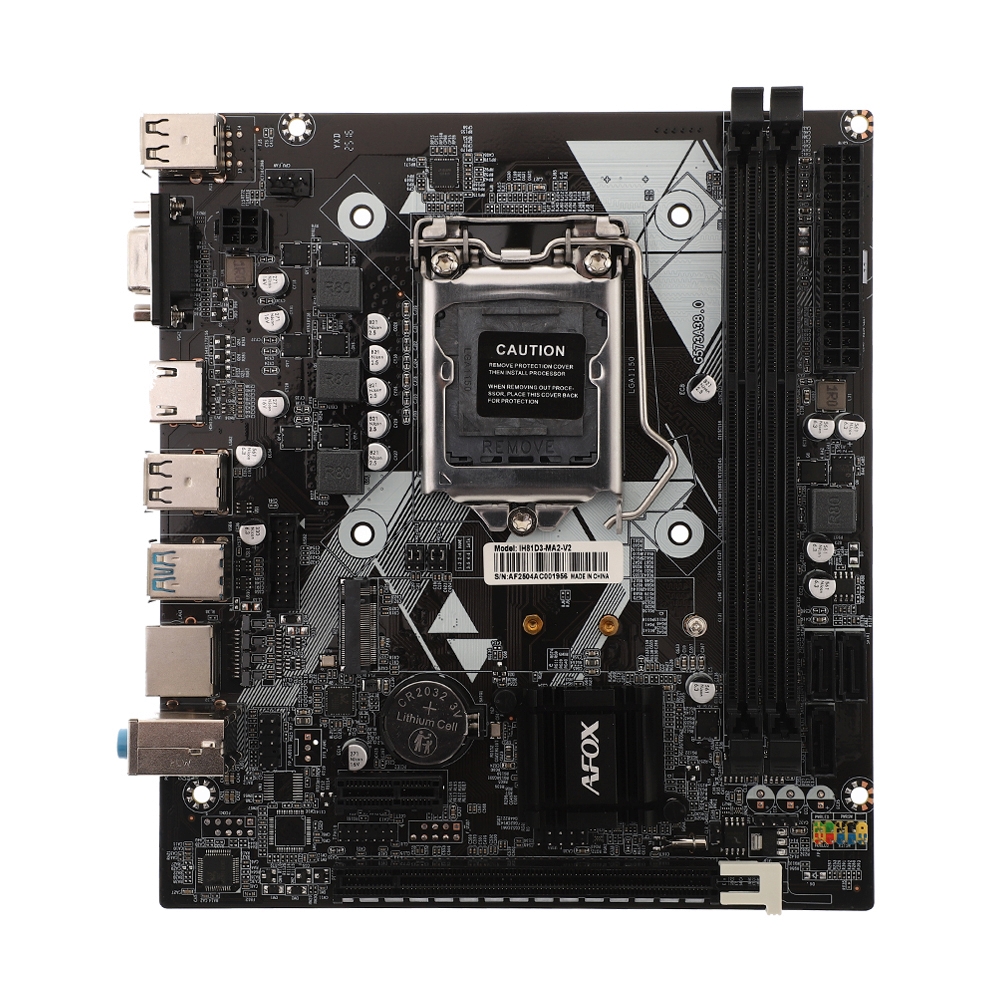

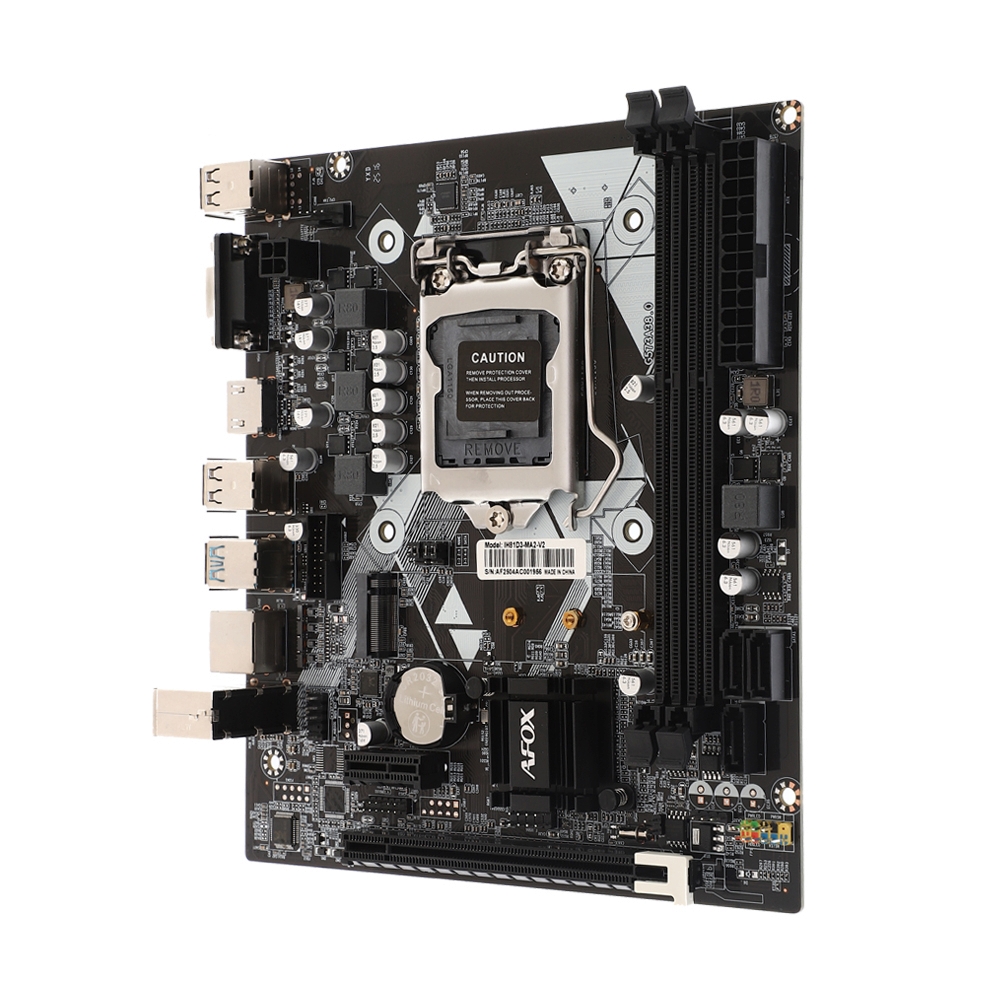

(1150) AFOX IH81D3-MA2-V2 DDR3
- Support CPU : 4th Gen Intel Core Processors, Pentium and Celeron Processors
- From Factor : Micro ATX
- Chipset : Intel H81 Chipset
- Memory Channel : Dual Channel DDR3 2DIMM
- Memory Support : up to 1860
- Memory MAX : 16GB
- M.2 Slot : 1 slot
- SATA III 6G : 3 ports
- PCIe 2.0x16 : 1 slot
- Lan Port : 1 Gigabit LAN
- Rapid transmission is always ready
- Rambling mainstream game world
- Wonderful design rendering effect
- Satisfy all your computing demands
- Microsoft Windows 8 compatible
ข้อมูลผลิตภัณฑ์
IH81D3-MA2-V2 DDR3
Intel 4th generation Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® / Xeon® Processors (CPU up to 95 watts)
Intel
1150
Intel H81
2 x Memory Slots (Max. capacity of system memory 16GB)
Dual Channel DDR3 1066 / 1333 / 1600 / 1860MHz
1860
Integrated Graphics Processor
1 x HDMI Port
1 x D-Sub (VGA) Port
None
Supports 6-channel audio-out
1 x PCI Express x16 2.0 slot
1 x PCI Express x1 slot
PCIe 2.0
1 x M.2 (PCIe NVMe Gen3 x4 & SATA3)
3 x SATA3
NVMe, SATA
1
1 x USB 2.0 pinheader (supports additional 2 USB 2.0s)
1 x USB 3.0 pinheader (supports additional 2 USB 3.0s)
2 x USB 3.0 Ports
4 x USB 2.0 Ports
1 x USB 2.0 pinheader (supports additional 2 USB 2.0s)
1 x USB 3.0 pinheader (supports additional 2 USB 3.0s)
1 x Front Panel Audio pinheader
1 x TPM

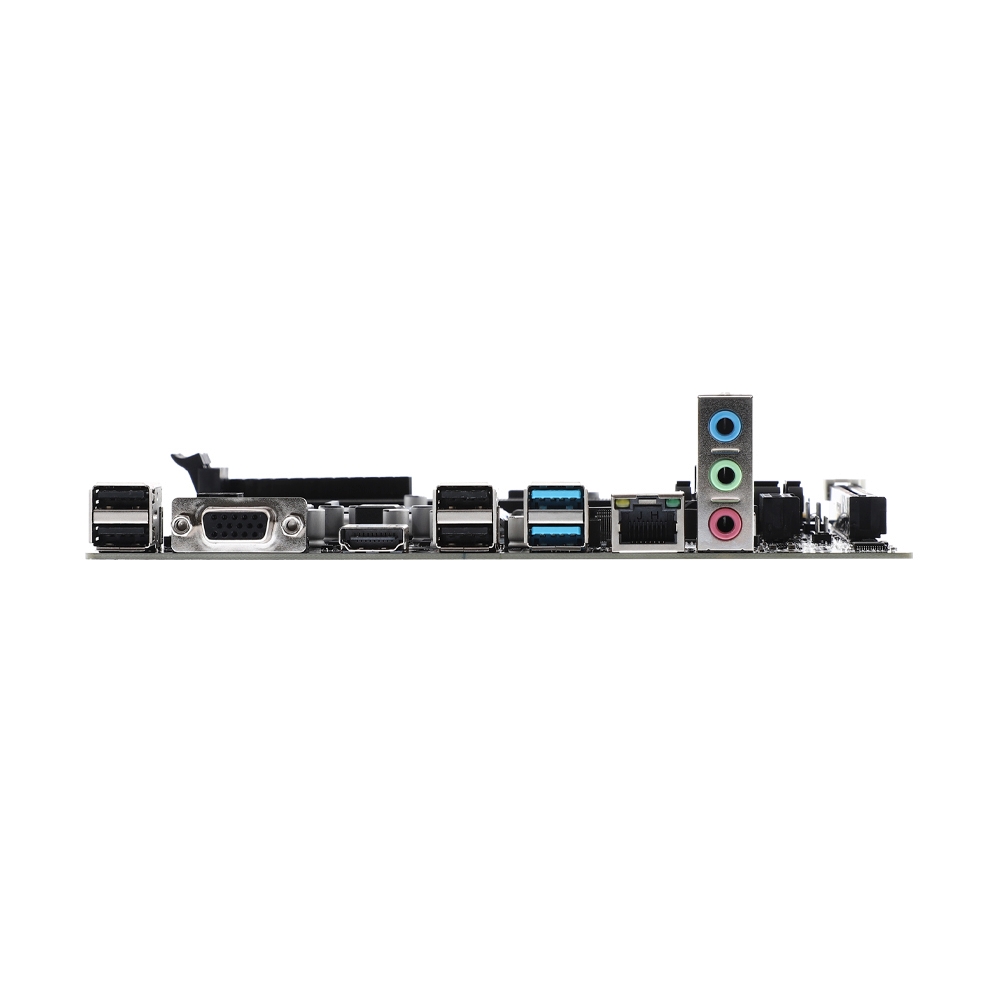

1 x HDMI Port
1 x D-Sub (VGA) Port
2 x USB 3.0 Ports
4 x USB 2.0 Ports
1 x RJ-45 LAN Port with LED
3 x HD Audio Jacks (Line in / Front Speaker / Microphone)
Realtek RTL8111 Gigabit Ethernet on board
None
Micro ATX
N/A
UEFI BIOS
N/A
N/A
Microsoft Windows 8 compatible
1 x SATA II cable
1 x I/O Rear Panel
1 x User Manual
1 x Driver CD
