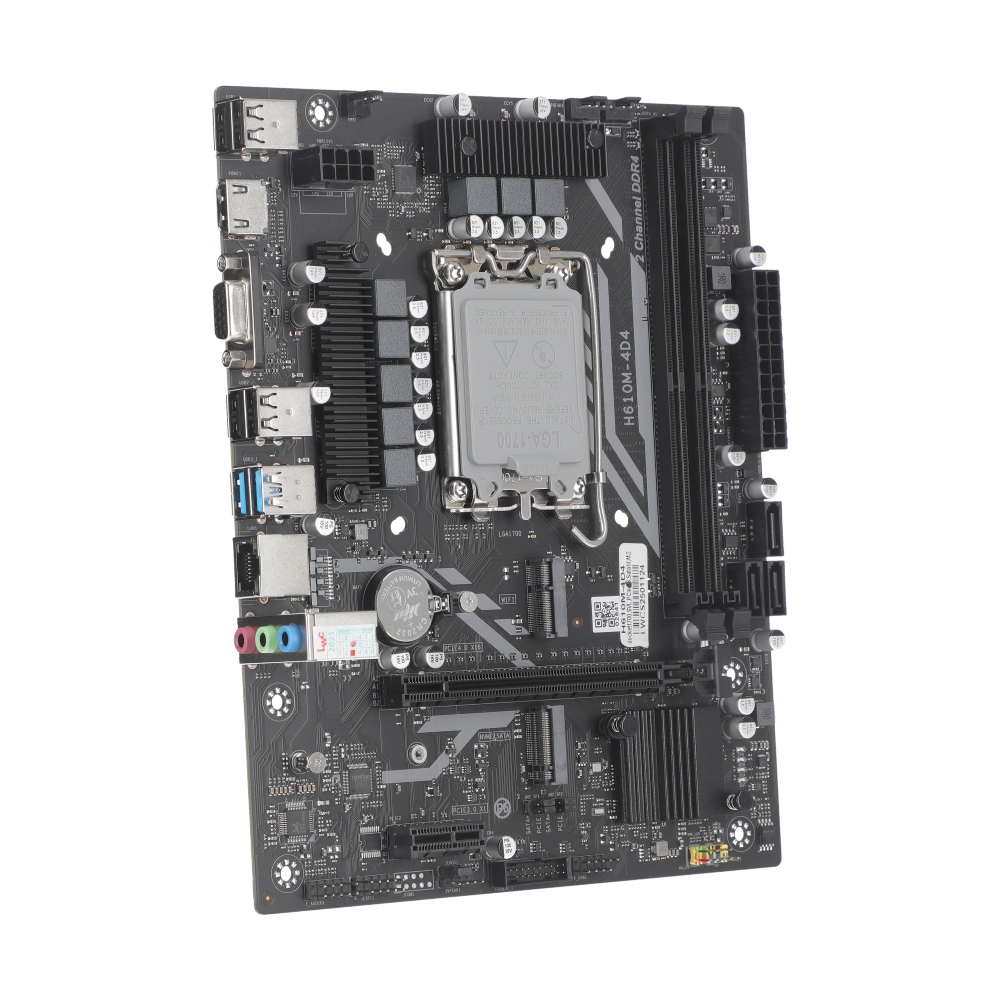

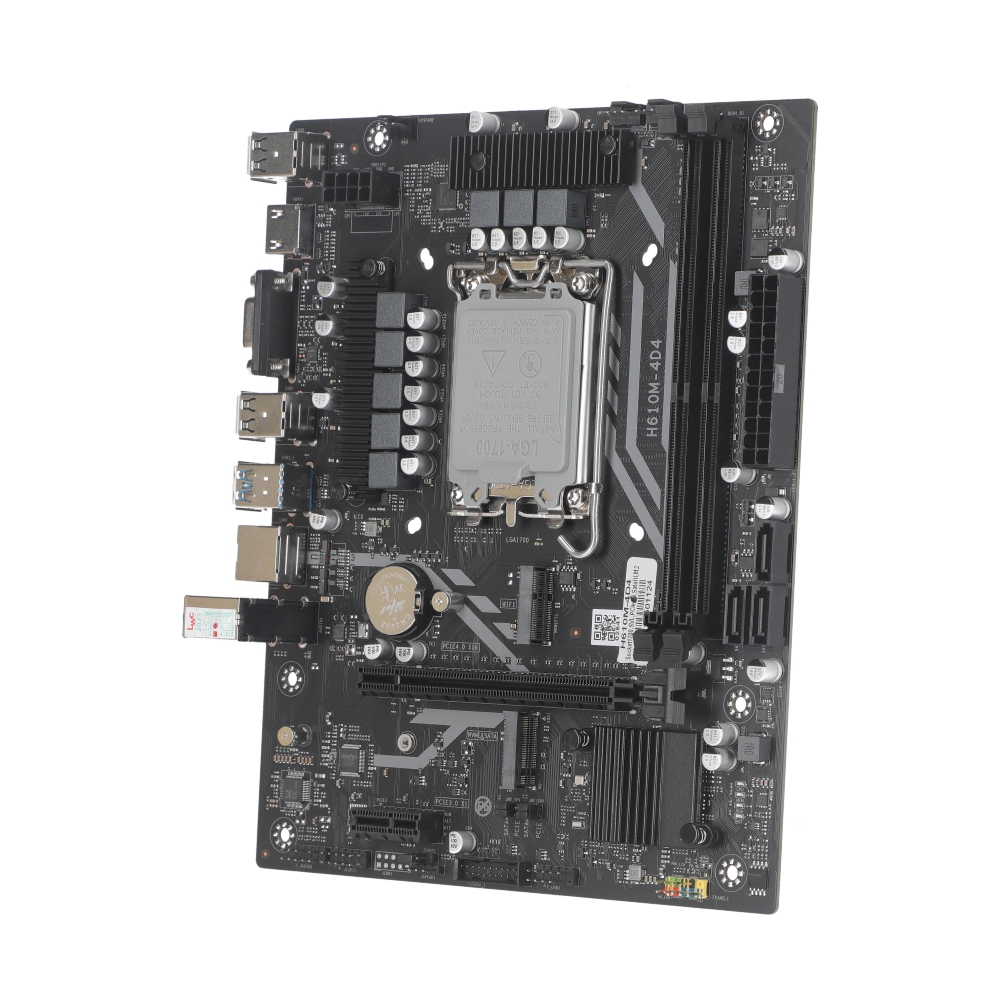

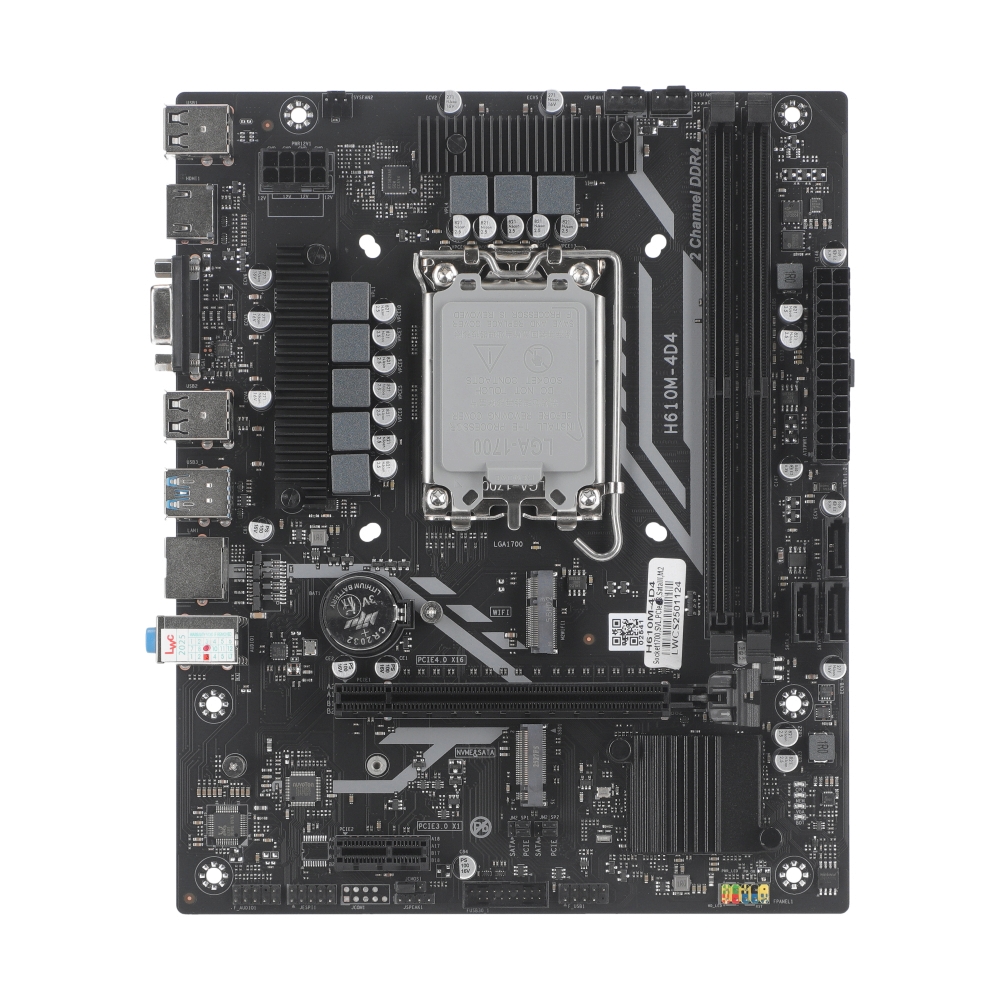

MAINBOARD (1700) LONGWELL H610M-4 DDR4
- Support CPU : 14th /13th /12th Gen Intel Core Processors, Pentium Gold and Celeron Processors
- Form Factor : Micro ATX
- Chipset : Intel Q670 Chipset
- Memory Channel : Dual Channel DDR4 2DIMM
- Memory Support : up to 3200
- Memory MAX : 64GB
- M.2 Slot : 1 slot
- SATA III 6G : 3 ports
- PCIe 4.0x16 : 1 slot
- Lan Port : 1 Gigabit LAN
ข้อมูลผลิตภัณฑ์
H610M-4D4
Support for 12th ,13th and 14th Generation Intel® Core™ i9 processors
Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors
Intel® Pentium® processors/Intel® Celeron® processors in the LGA1700 package
Intel
1700
Intel Q670
Memory Support 2 x DDR4 DIMM sockets supporting up to 64 GB of system memory
Dual channel memory architecture
Support for DDR4 3200/2933/2666/2400/2133 MHz memory modules
3200
1 x HDMI port
1 x VGA port
N/A
Audio Realtek® ALC897 codec
High Definition Audio
1 x PCI Express 4.0 x16 slot
1 x PCI Express 3.0 x1 slot
PCIe 4.0
3 x SATA 6Gb/s connectors
1 x M.2 (M Key) Supports M.2 Type 2240 / 2280 SSD module
Supports PCIe 3.0 x4
1
4 x USB 2.0 ports
2 x USB 3.2 ports Gen2
1 x USB 3.0 header (Internal)
1 x USB 2.0 header (Internal)
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
3 x SATA 6Gb/s connectors
1 x CPU fan header
2 x system fan header
1 x front panel header
1 x front panel audio header
1 x USB 3.0 header
1 x USB 2.0 header
1 x Clear CMOS jumper
1 x Speaker Connector

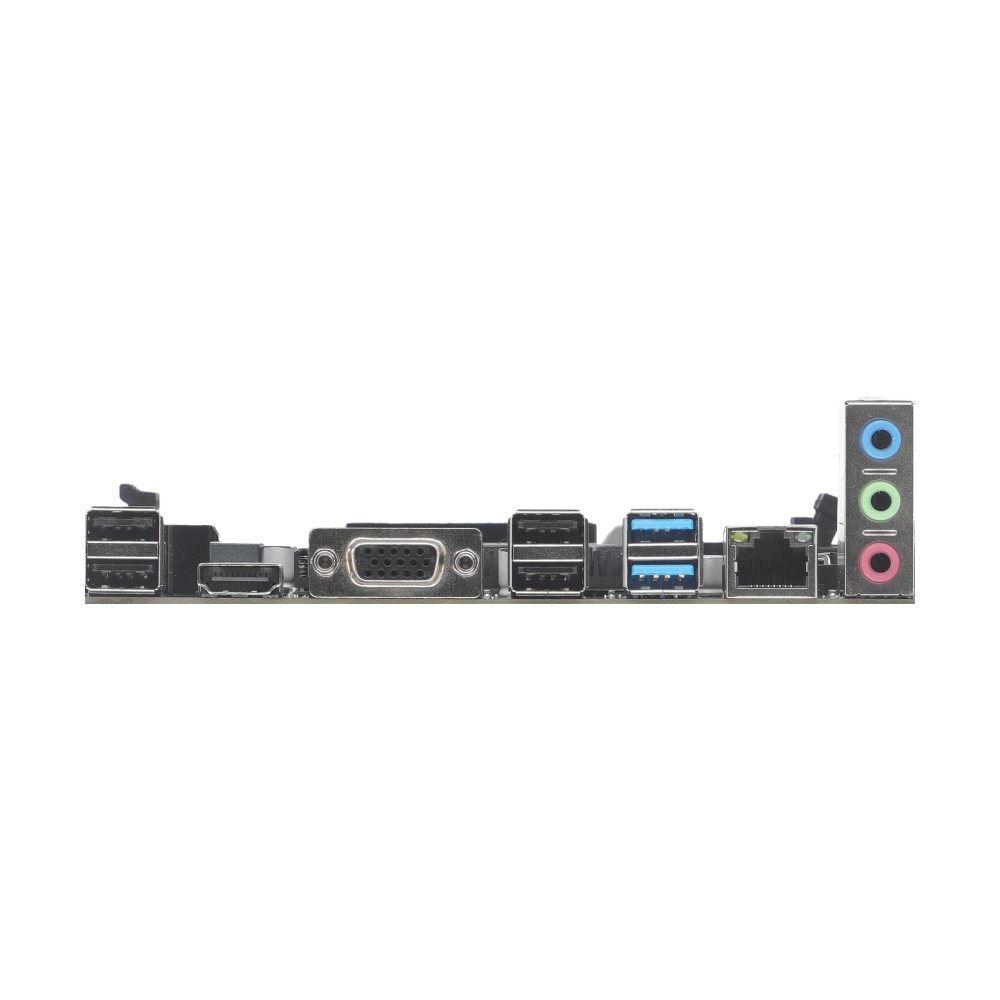

1 x HDMI port
1 x VGA port
4 x USB 2.0 ports
2 x USB 3.2 ports Gen2
1 x Lan port
3 x audio connector
10/100/1000 Mb/s auto negotiation Half/Full duplex capability
Realtek® RTL8111H
None
Micro ATX
N/A
N/A
Support UEFI mode
N/A
Win 10-11
N/A
