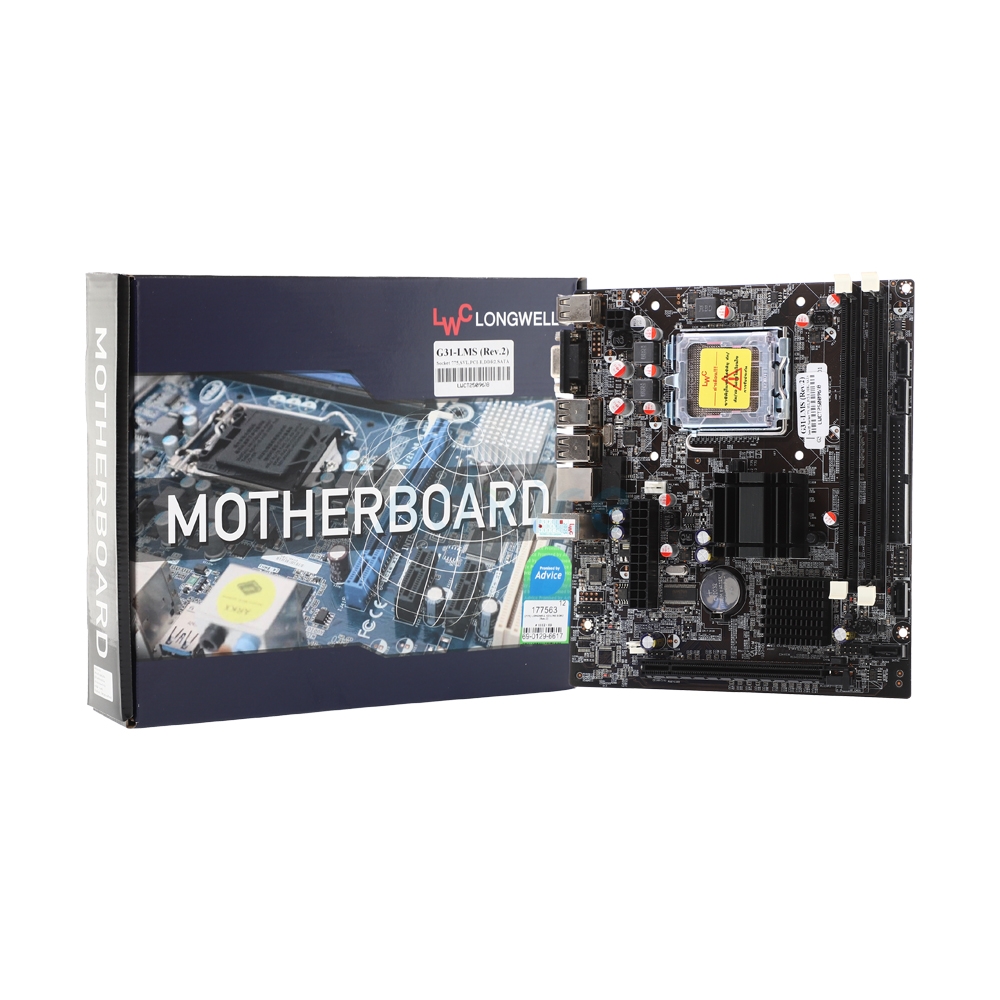

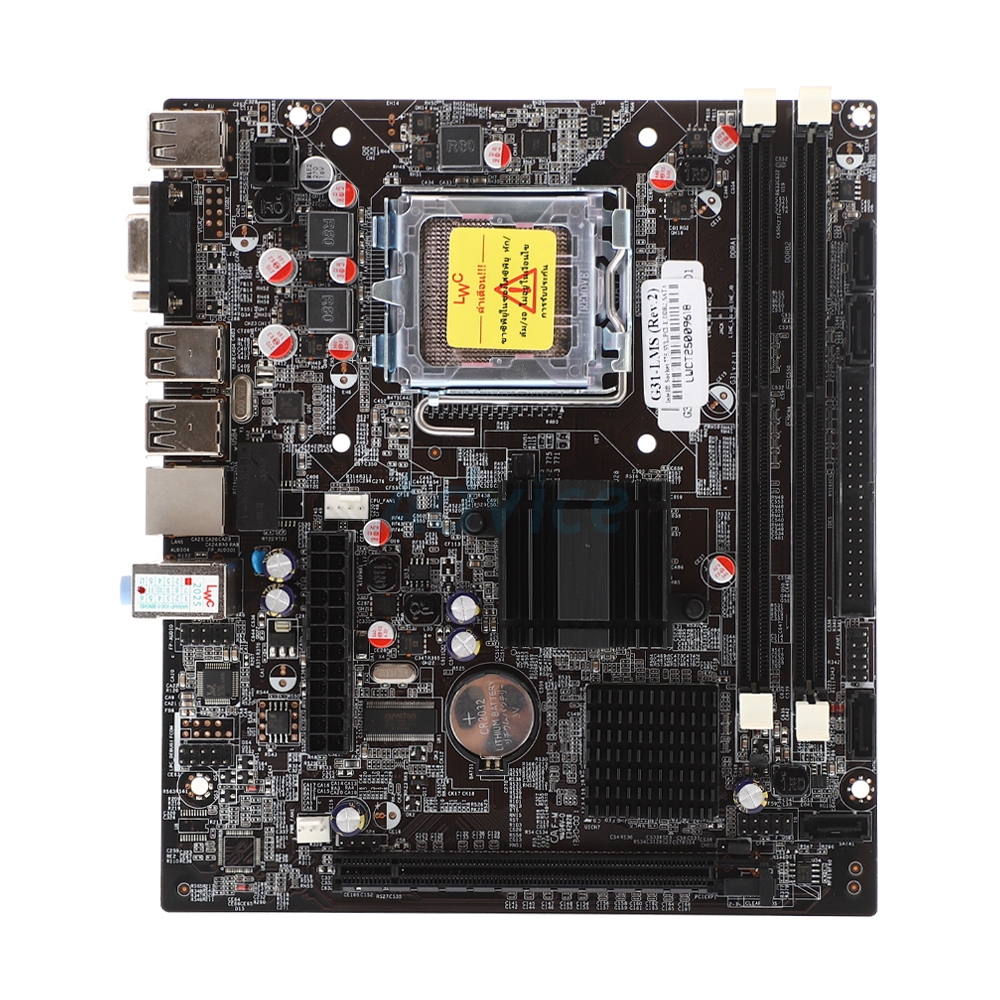

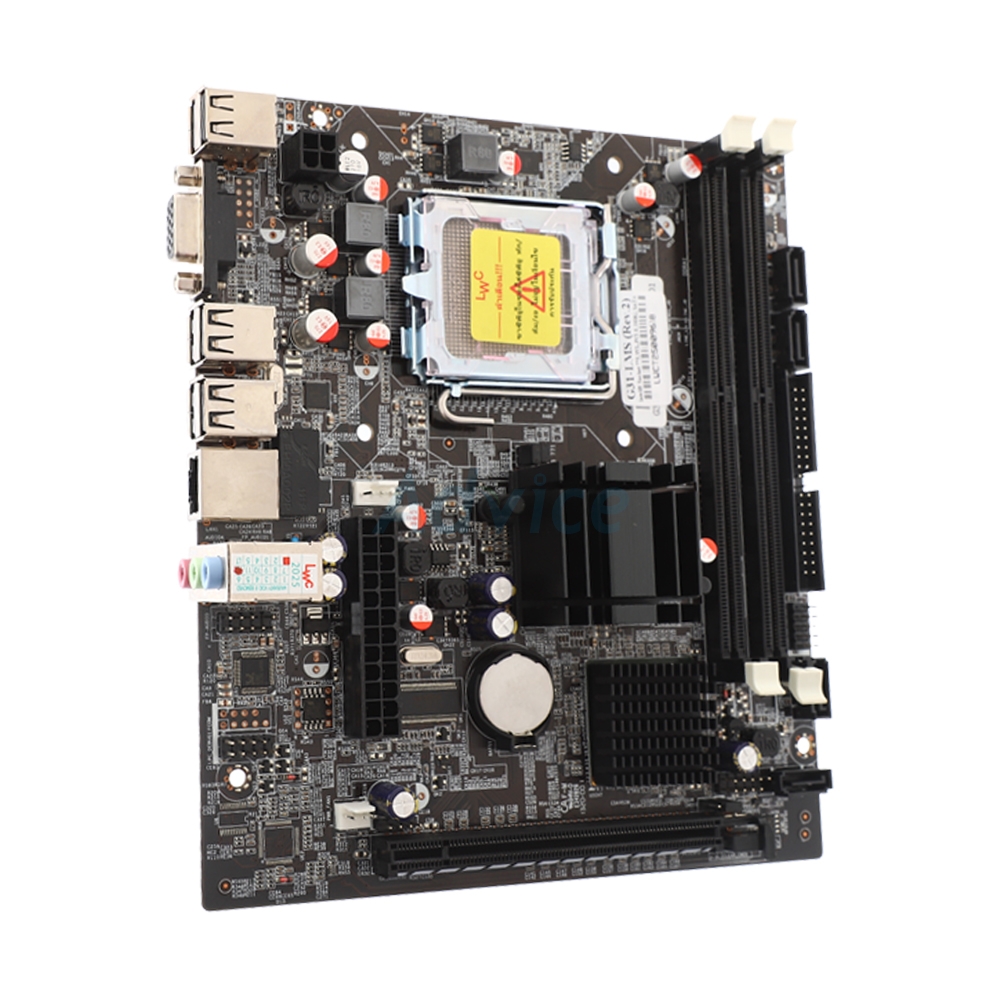

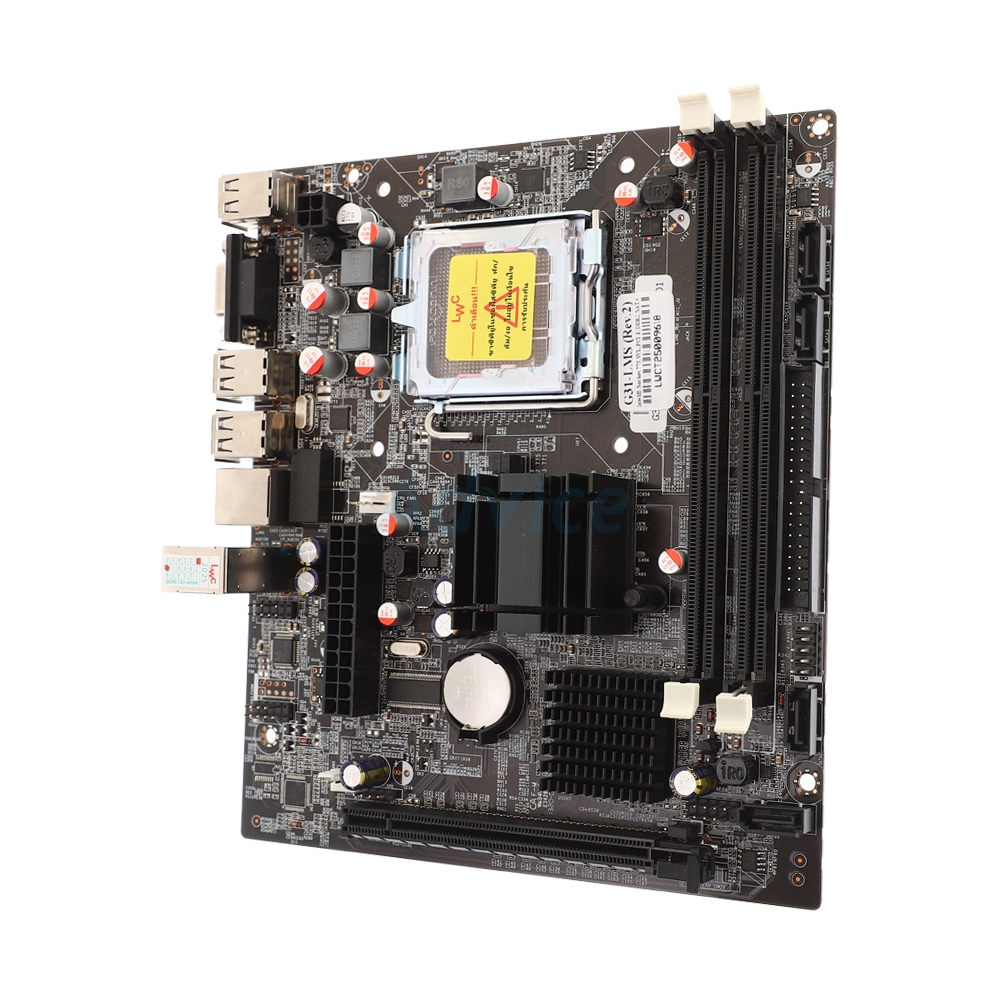

MAINBOARD (775) LONGWELL G31LMS DDR2 (REV. 2.0)

ประกัน 1 ปี

รหัสสินค้า: A0177563

Support CPU : Intel Celeron / Celeron D / Celeron Dual-Core / Core 2 Duo / Core 2 Quad / Pentium 4 / Pentium D / Pentium Dual Core Processor
From Factor : Micro ATX
Chipset : Intel G31 Chipset
Memory Channel : Dual Channel DDR2 2DIMM
Memory Support : up to 800
Memory MAX : 4GB
M.2 Slot : 0 slot
SATA : 4 ports
IDE : 1 port
PCIe 1.0x16 : 1 slot
Lan Port : 100Mb LAN

คำค้นหาLongwell Motherboard Mainboard เมนบอร์ด 775 Intel G31 Micro ATX G31LMS DDR2 Rev.2

ราคาหน้าร้าน ฿1,050

ข้อมูลผลิตภัณฑ์

BrandLONGWELL

Model
G31LMS DDR2 (Rev.2)

CPU Support
Intel® Celeron
Intel® Celeron D
Intel® Celeron Dual-Core
Intel® Core 2 Duo
Intel® Core 2 Quad
Intel® Pentium 4
Intel® Pentium D
Intel® Pentium Dual Core

CPU Brand
Intel

Socket
775

Chipset
Intel G31

Memory Support
Dual Channel DDR2 Memory Technology
2 x DDR2 DIMM Slots
2 x DDR2 667/800 MHz
Max.capacity up to 4GB Memory

Maximum Memory Bus
800

Graphics
1 x VGA (D-Sub) Port

Multi Graphic Support
None

Audio
Realtek ALC 662

Expansion Slots
1 x PCI Express 1.0 x16 (x16 mode)

Maximum PCIe Version
PCIe 1.0

Storage
4 x SATA II Connector
1 x IDE port

M.2 Storage Type Support
None

M.2 Slot
None

USB
Back Panel
6 x USB 2.0 Port

Internal
1 x F USB 2.0 Connector

Internal I/O Connectors
1 x 24-pin EATX Power Connector
1 x 4-pin ATX 12V Power Connector
1 x CPU Fan Connector
1 x System Fan Connector
1 x F USB 2.0 Connector
1 x Front Panel Audio Connector (AAFP)
1 x Speaker Connector

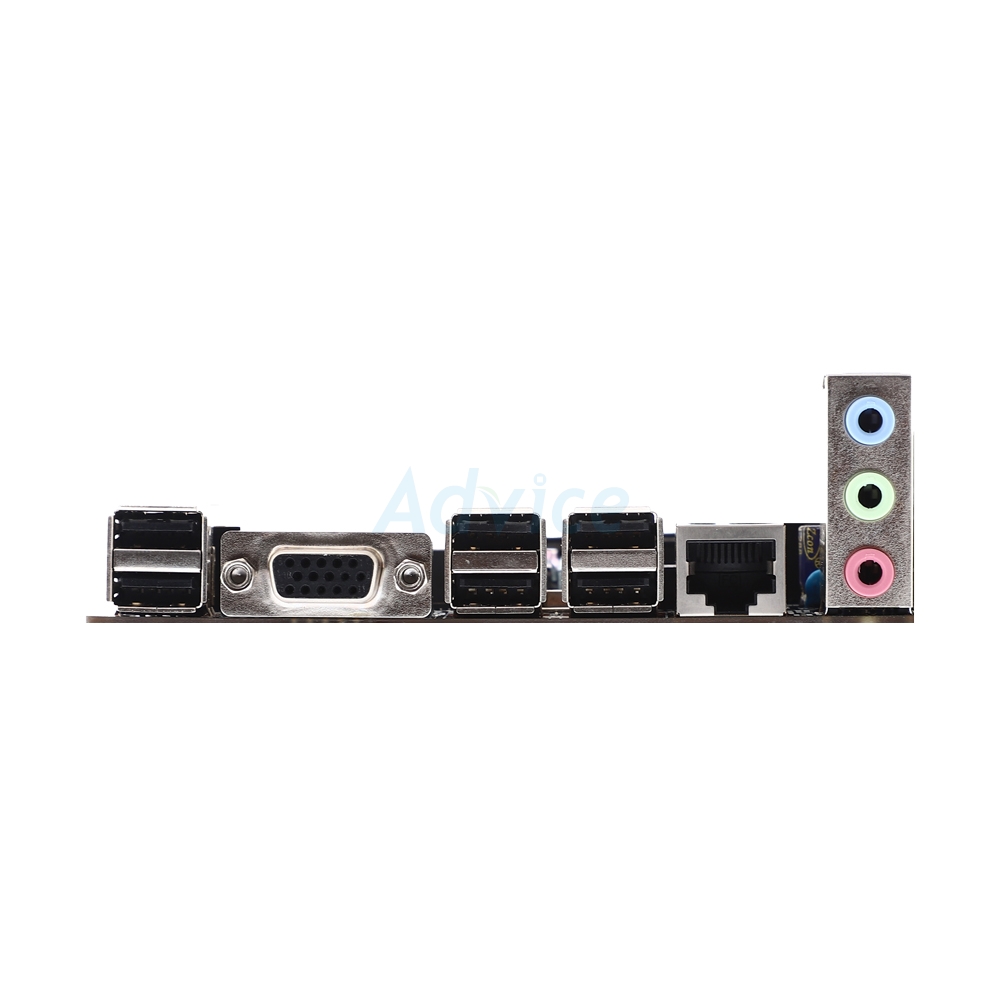

Back Panel Connectors
1 x VGA (D-Sub) Port
6 x USB 2.0 Port
1 x RJ-45 LAN port with LED (ACT/LINK LED and SPEED LED)
3 x Audio Jacks: Line in / Speaker / Microphone

LAN
10/100 Mb/s auto negotiation Half/Full duplex capability
Realtek® RTL8105E

Wireless Data Network
None

Form Factor
Micro ATX

H/W Monitoring
N/A

BIOS
N/A

Special Features
N/A

Software Features
N/A

Operating System Support
Microsoft® Window® XP / Vista / 7 / 8 / 10

Package Contents
1 x SATA cable
1 x I/O Rear Panel
1 x User Manual
