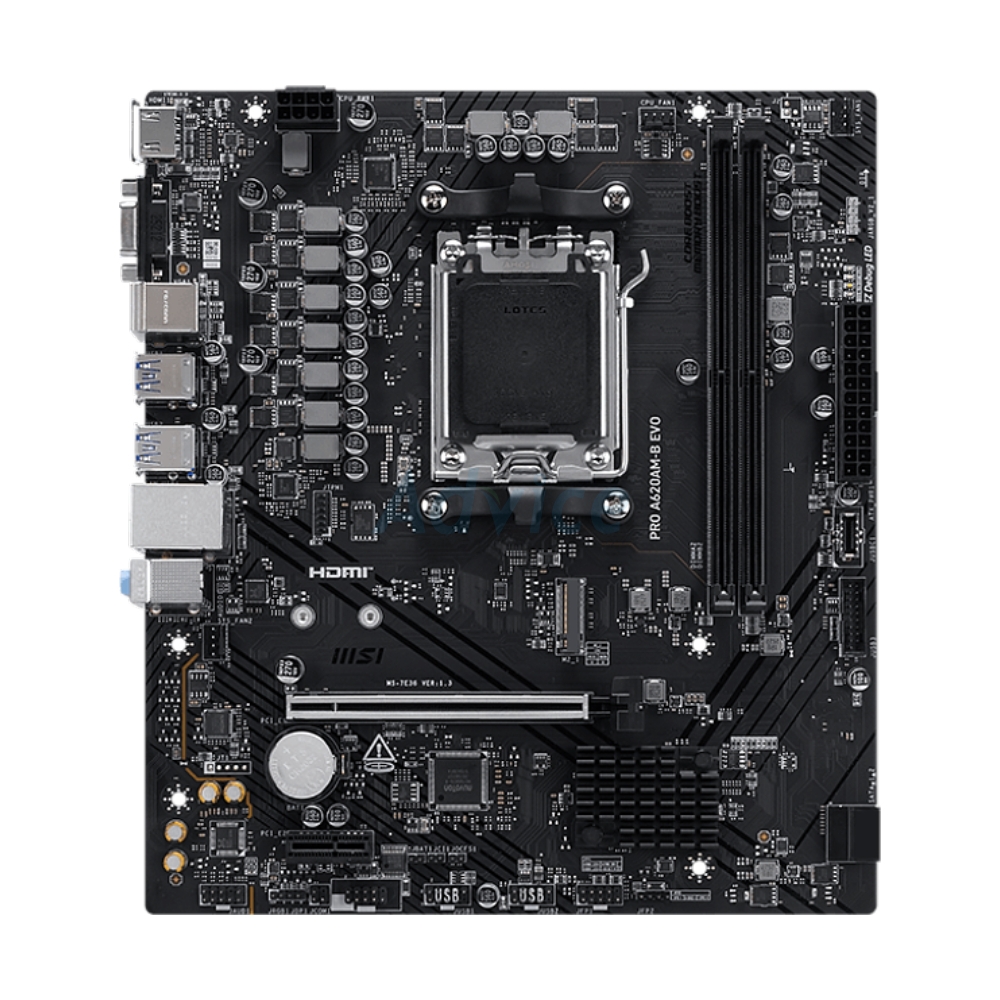

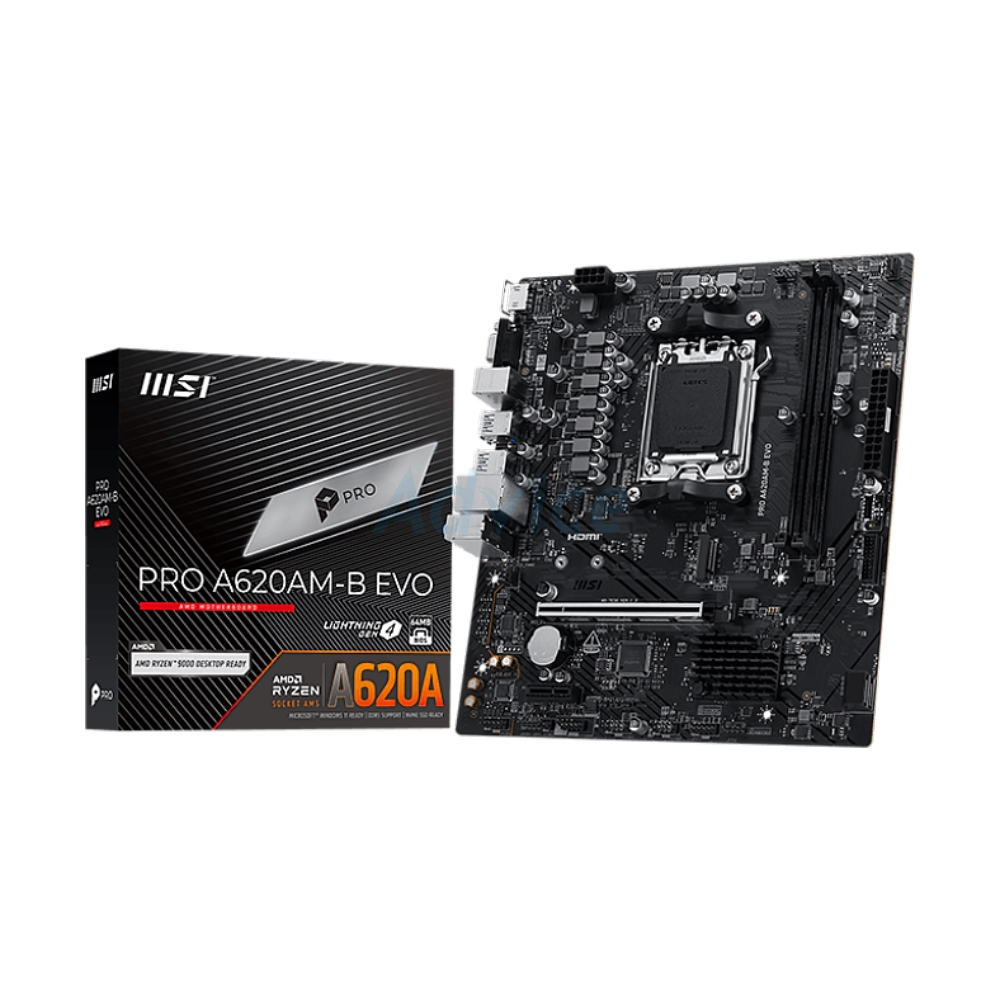

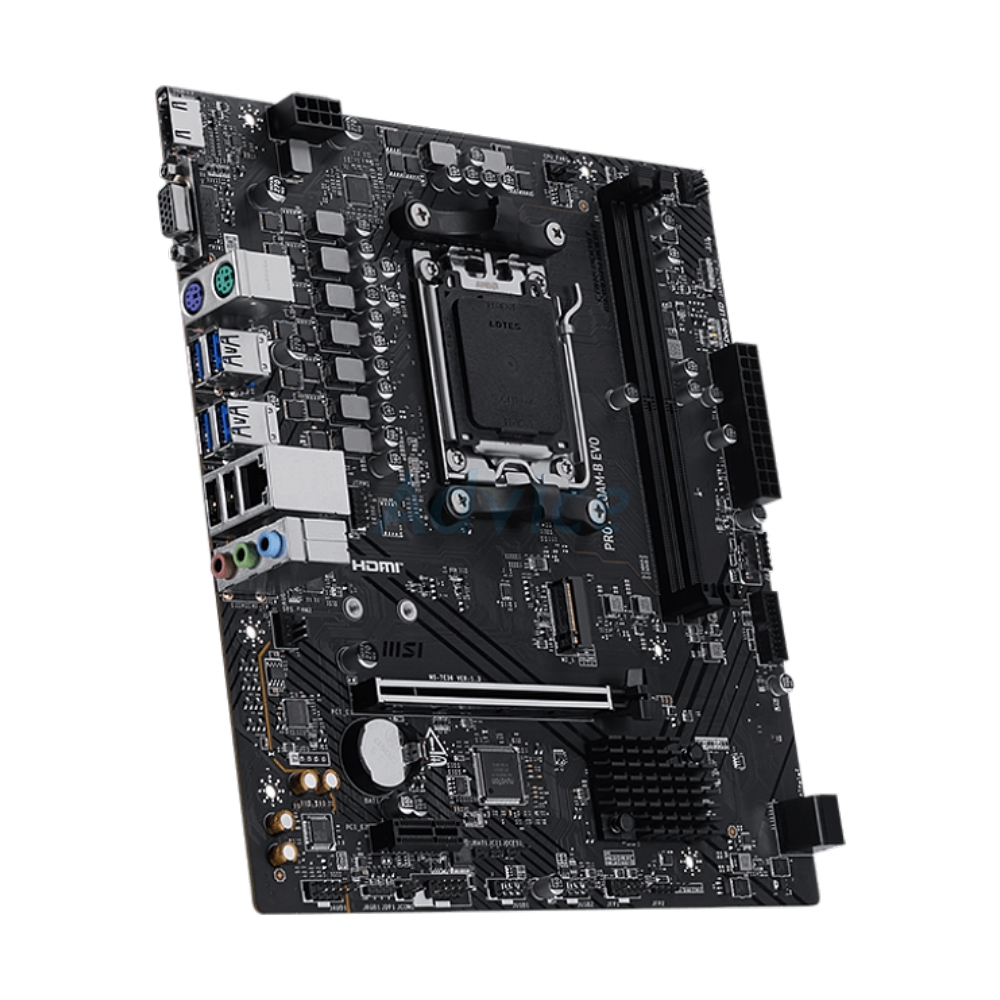

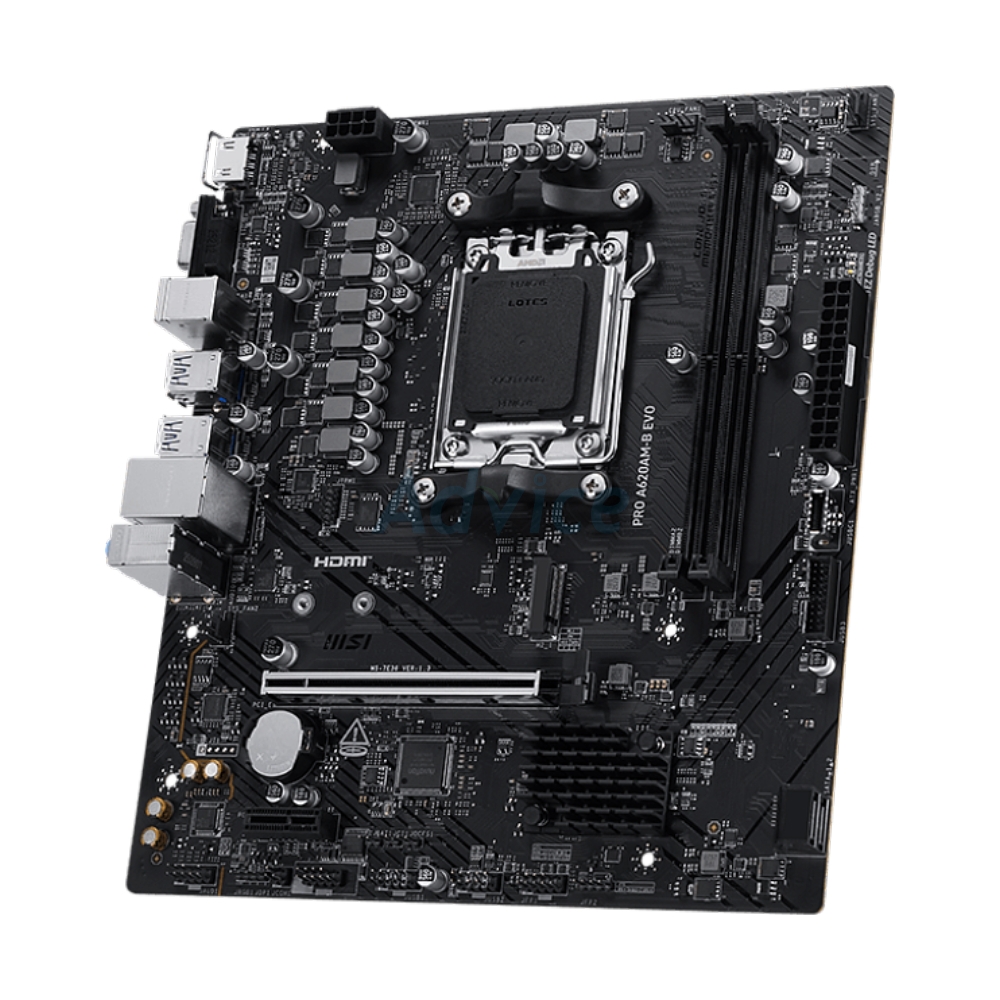

MAINBOARD (AM5) MSI PRO A620AM-B EVO DDR5
- Support CPU : AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors
- Form Factor : Micro ATX
- Chipset : AMD A620A Chipset
- Memory Channel : Dual Channel DDR5 2DIMM
- Memory Support : up to 6800(O.C.)
- Memory MAX : 128GB
- M.2 Slot : 1 slot
- SATA III 6G : 2 ports
- PCIe 4.0x16 : 1 slot
- Lan Port : 2.5 Gigabit LAN
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost : Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- AUDIO BOOST : Reward your ears with studio grade sound quality for the most immersive gaming experience
- Steel Armor : Protecting VGA cards against bending and EMI for better performance, stability and strength
รายละเอียดสินค้า
อ้างอิงจาก : www.msi.com
ข้อมูลผลิตภัณฑ์
PRO A620AM-B EVO DDR5
Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
AMD
AM5
AMD A620A
2 x DDR5, Maximum Memory Capacity 128GB
Memory Support DDR5 6800 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6800+ MT/s
• 1DPC 2R Max speed up to 6000+ MT/s
Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPO™
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*
* CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
• The DIMM slots on this motherboard only have single-sided latches.
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/
6800
1 x HDMI™
Support HDMITM 2.1, maximum resolution of 4K 60Hz*
1 x VGA
Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
N/A
Realtek® ALC897 Codec
7.1-Channel High Definition Audio
1 x PCI-E x16 slot
• Supports x16 (For Ryzen™ 9000 and 7000 Series processors)
• Supports x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports x4 (For Ryzen™ 8500/ 8300 Series processors)
1 x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCIe 4.0
1 x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
2 x SATA 6G
M2_1 slot
• Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors)
• Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)
RAID
Supports RAID 0 and RAID 1 for SATA storage devices
NVMe
1
2 x USB 2.0 (Rear)
4 x USB 2.0 (Front)
4 x USB 5Gbps Type A (Rear)
2 x USB 5Gbps Type A (Front)
1 x USB 5Gbps Type C (Front)
1 x Power Connector(ATX_PWR)
1 x Power Connector(CPU_PWR)
1 x CPU Fan
2 x System Fan
2 x Front Panel (JFP)
1 x Chassis Intrusion (JCI)
1 x Front Audio (JAUD)
1 x Com Port (JCOM)
1 x Addressable V2 RGB LED connector (JARGB_V2)
1 x RGB LED connector(JRGB)
1 x TPM pin header(Support TPM 2.0)
4 x USB 2.0 ports
2 x USB 5Gbps Type A ports
1 x USB 5Gbps Type C ports

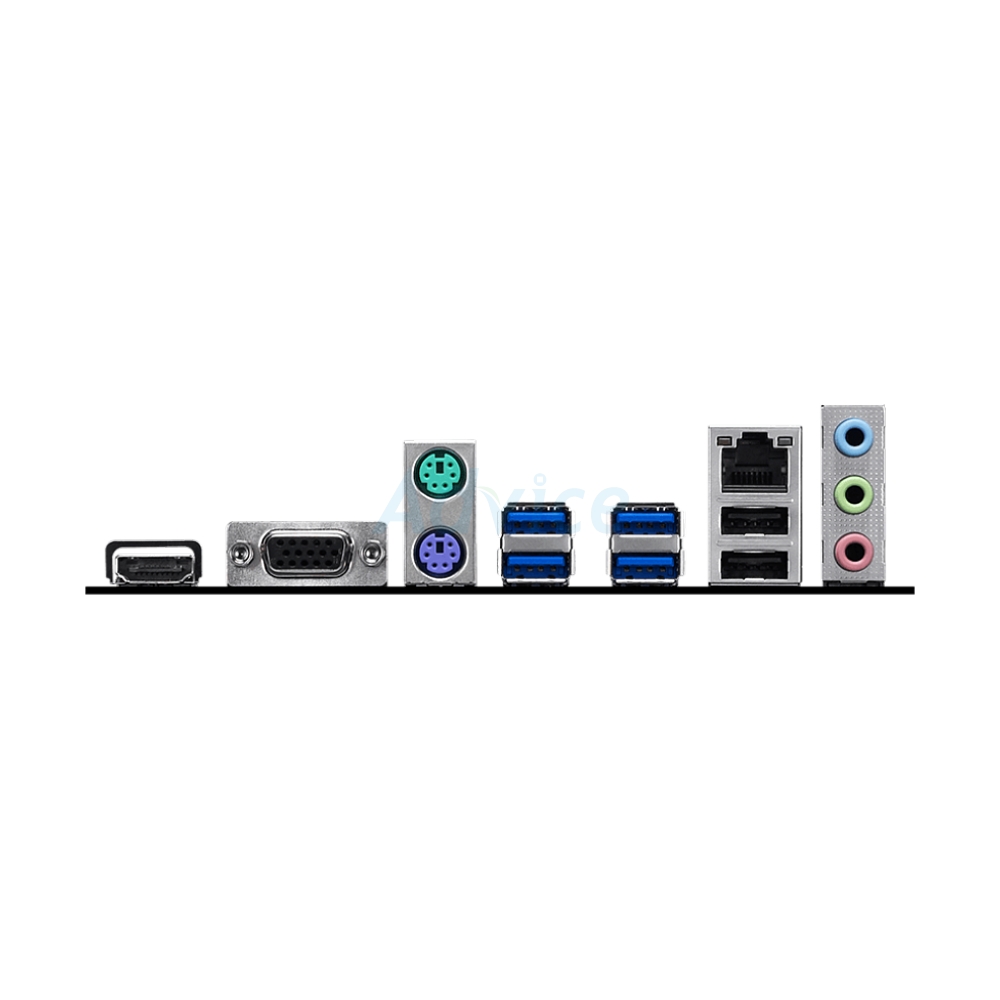

2 x USB 2.0
4 x USB 5Gbps Type-A
1 x VGA
1 x HDMI™
Audio connectors
Keyboard/Mouse
LAN port
Realtek® RTL8125 2.5G LAN
None
Micro ATX
N/A
N/A
LED FEATURE
4 x EZ Debug LED
1 x EZ Memory Detection LED
N/A
Support for Windows® 11 64-bit, Windows® 10 64-bit
