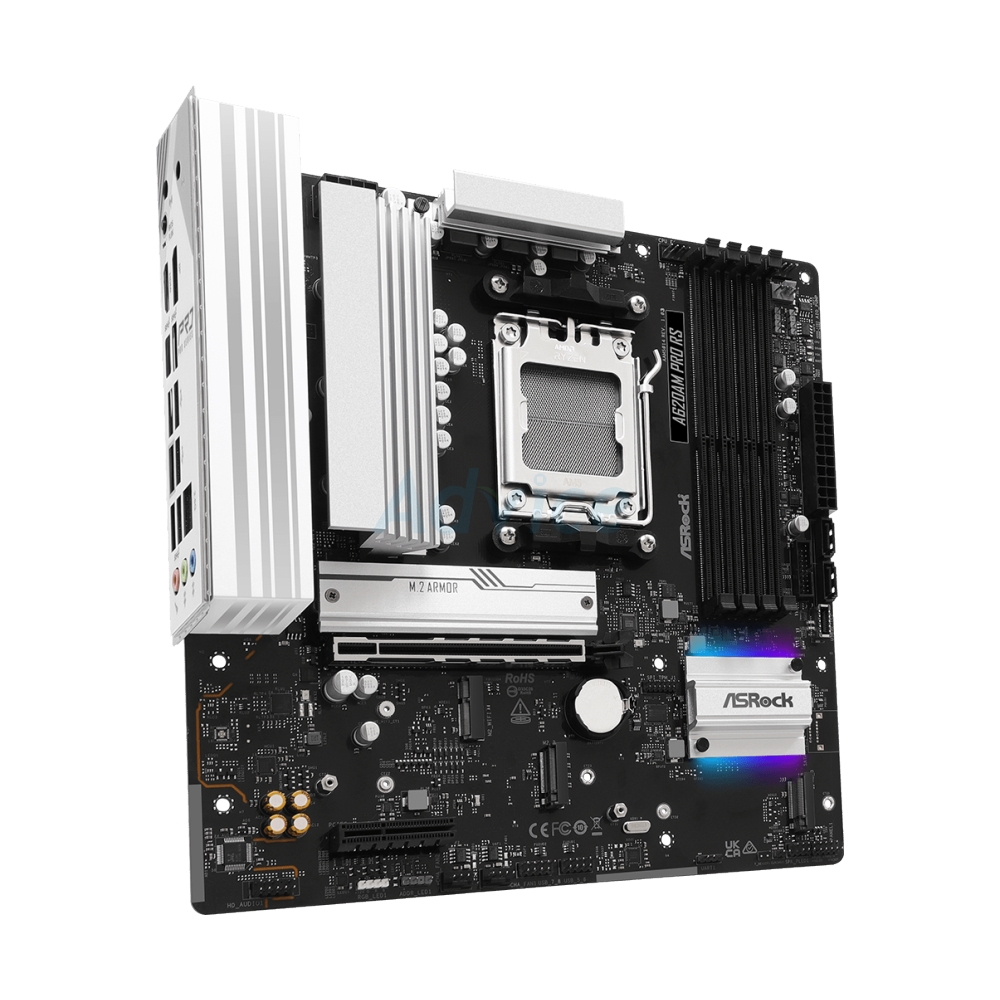

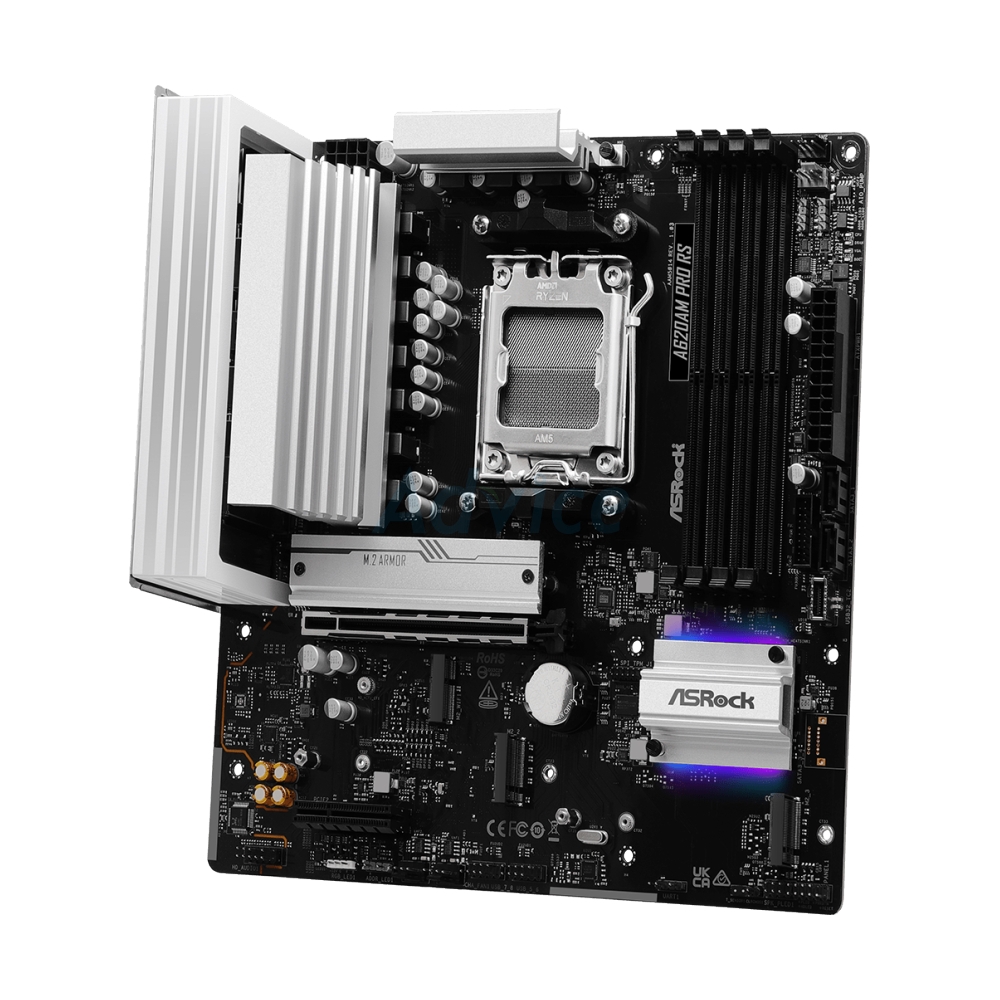

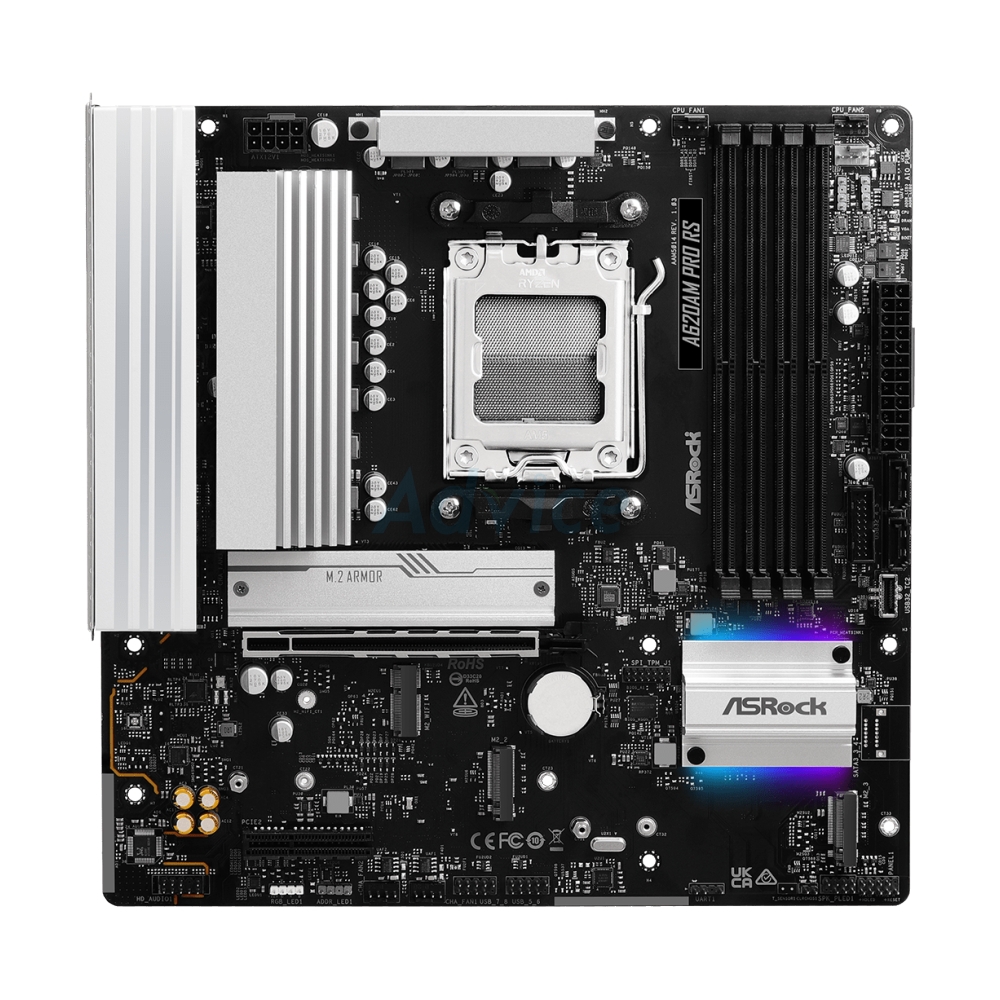

MAINBOARD (AM5) ASROCK A620AM PRO RS DDR5

A620AM PRO RS DDR5

Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors

AMD

AM5

AMD A620A

Dual Channel DDR5 Memory Technology
4 x DDR5 DIMM Slots
Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)
Max. capacity of system memory: 256GB
Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

7200

Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz

None

7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Nahimic Audio

CPU:
1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*

Chipset:
1 x PCIe 3.0 x16 Slot (PCIE2), supports x2 mode*
1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
15μ Gold Contact in VGA PCIe Slot (PCIE1)

* Supports NVMe SSD as boot disks

PCIe 4.0

CPU:
1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*

Chipset:
1 x Ultra M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen3x4 (32 Gb/s) mode*
2 x SATA3 6.0 Gb/s Connectors

* Supports NVMe SSD as boot disks

RAID:
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*

* Requires additional M.2 NVMe expansion cards to support RAID 10

NVMe

3

CPU:
1 x USB 3.2 Gen1 Type-C (Rear)
2 x USB 3.2 Gen1 Type-A (2 Rear (USB32_1, USB32_2)) Chipset:
1 x USB 3.2 Gen1 Type-C (Front)
3 x USB 3.2 Gen1 Type-A (1 Rear (USB32_3), 2 Front)
8 x USB 2.0 (4 Rear, 4 Front)

* All USB ports support ESD Protection

1 x SPI TPM Header
1 x Power LED and Speaker Header
1 x RGB LED Header*
3 x Addressable LED Headers**
1 x CPU Fan Connector (4-pin)***
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
1 x Front Panel Audio Connector
2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
1 x Front Panel Type C USB 3.2 Gen1 Header

* Supports in total up to 12V/3A, 36W LED Strip
** Support in total up to 5V/3A, 15W LED Strip
*** CPU_FAN1 supports the fan power up to 1A (12W).
**** CPU_FAN2/WP supports the fan power up to 2A (24W).
***** CHA_FAN1~3/WP support the fan power up to 2A (24W).
CPU_FAN2/WP and CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use.

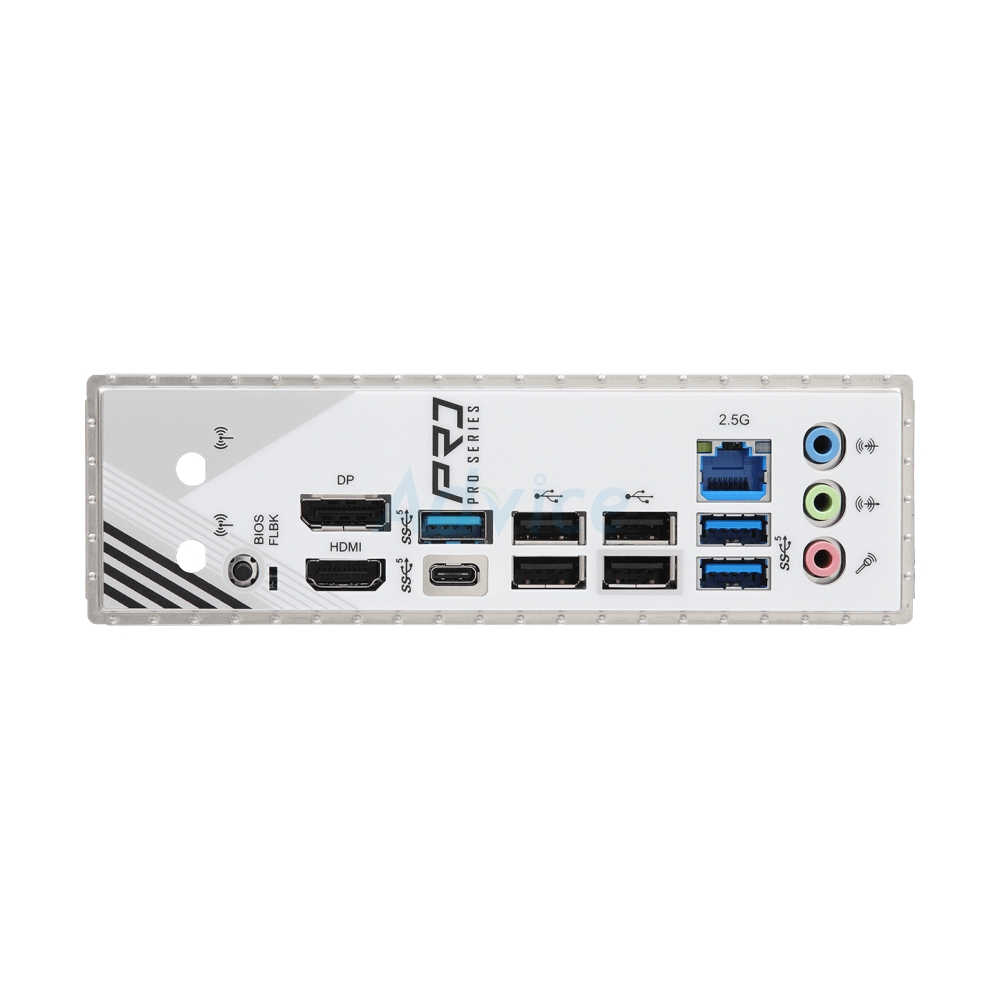

2 x Antenna Mounting Points
1 x HDMI Port
1 x DisplayPort 1.4
3 x USB 3.2 Gen1 Type-A Ports
1 x USB 3.2 Gen1 Type-C Port
4 x USB 2.0 Ports
1 x RJ-45 LAN Port
1 x BIOS Flashback Button
HD Audio Jacks: Line in / Front Speaker / Microphone

2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Dragon RTL8125BG
Supports Dragon 2.5G LAN Software
Smart Auto Adjust Bandwidth Control
Visual User Friendly UI
Visual Network Usage Statistics
Optimized Default Setting for Game, Browser, and Streaming Modes
User Customized Priority Control

None

Micro ATX

N/A

256Mb AMI UEFI Legal BIOS with GUI support

Superb Productivity
- Dual Channel DDR5

Rock-Solid Durability
- 6+2+1 Power Phase, Dr.MOS
- Pre-Installed I/O Shield

Ultrafast Connectivity
- 2.5G LAN

EZ Update
- BIOS Flashback Button
- ASRock Auto Driver Installer

EZ Troubleshooter
- ASRock Post Status Checker

Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock Dragon 2.5G LAN Software
- ASRock Polychrome SYNC*

UEFI
- ASRock Full HD UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash

*These utilities can be downloaded from ASRock Live Update & APP Shop.

Microsoft Windows® 10 64-bit / 11 64-bit

1 x User Manual
2 x SATA Data Cables
4 x Screws for M.2 Sockets
1 x Standoff for M.2 Socket
