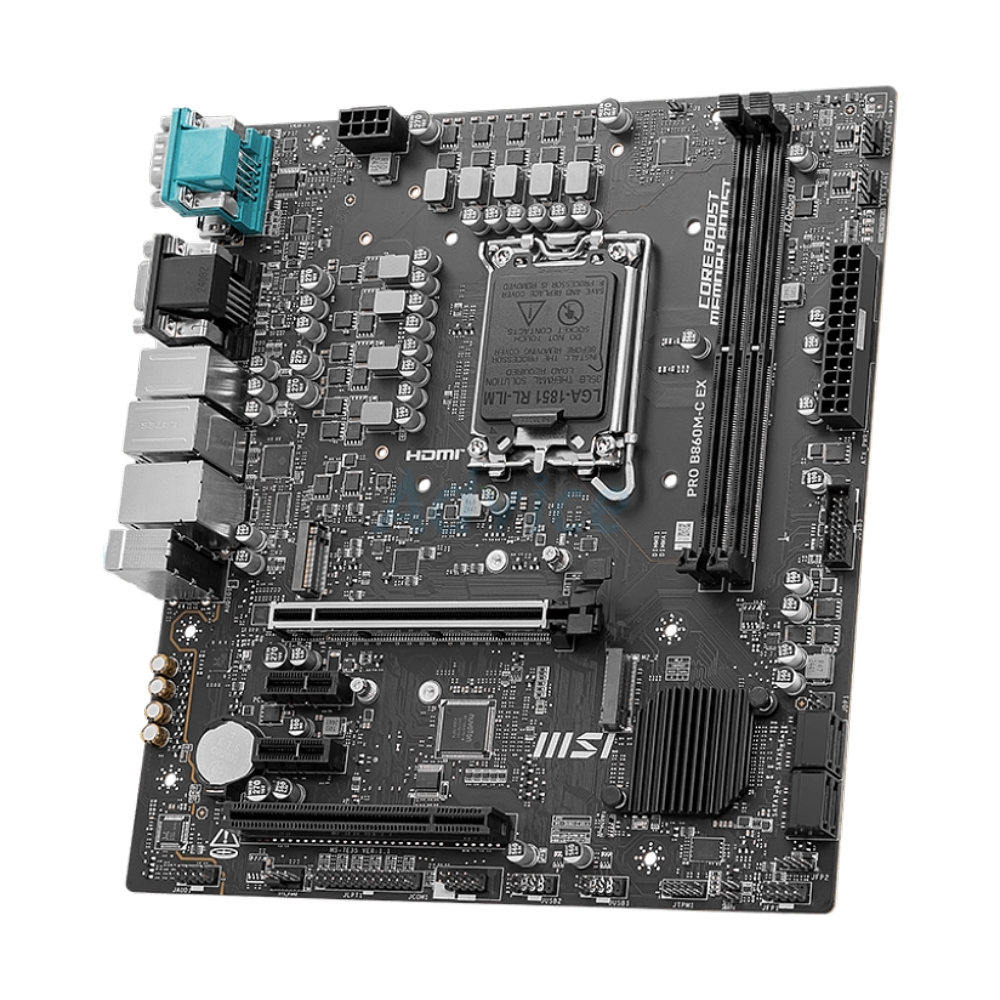

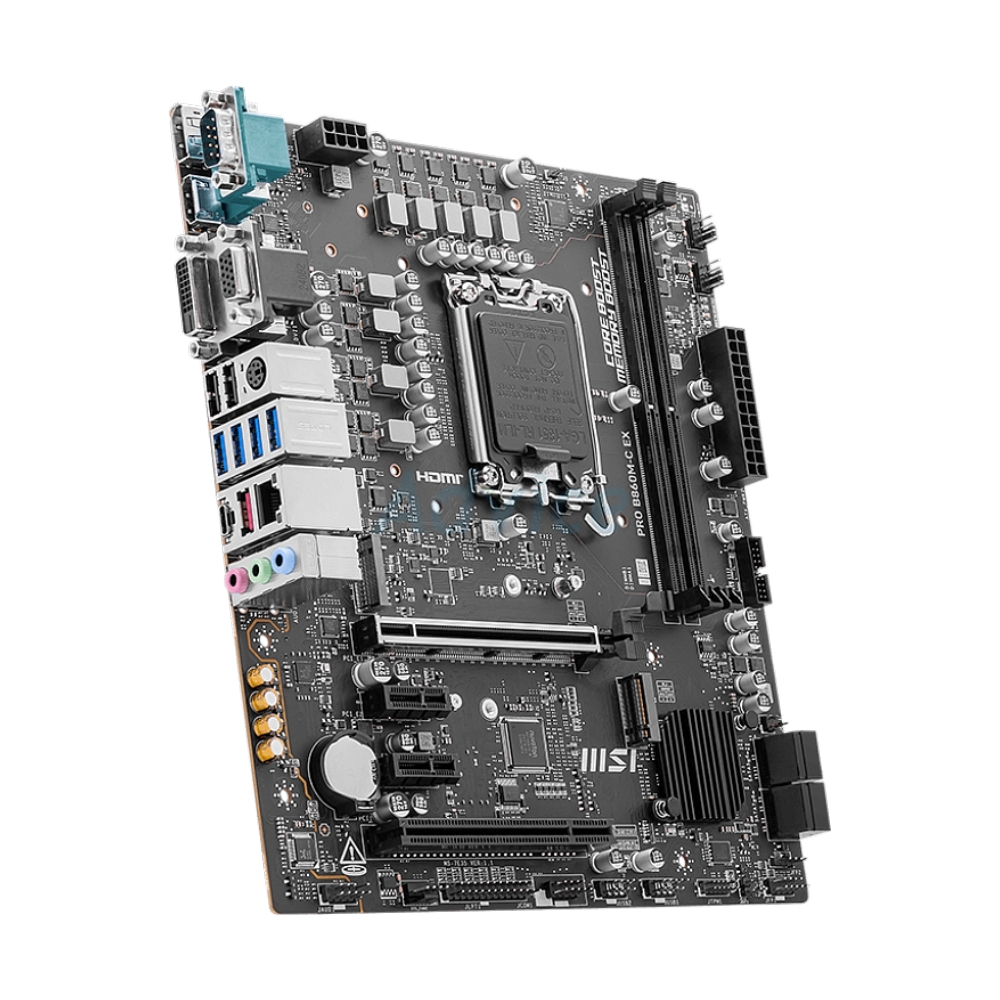

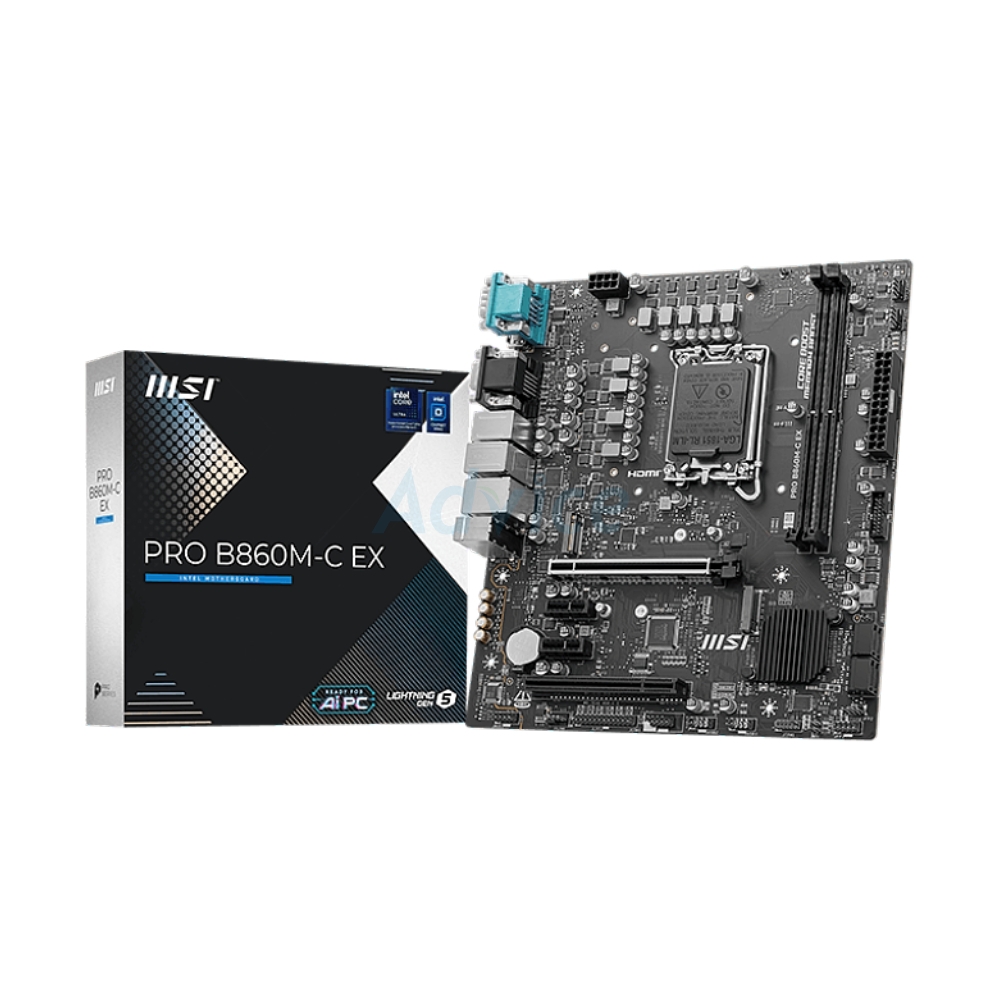

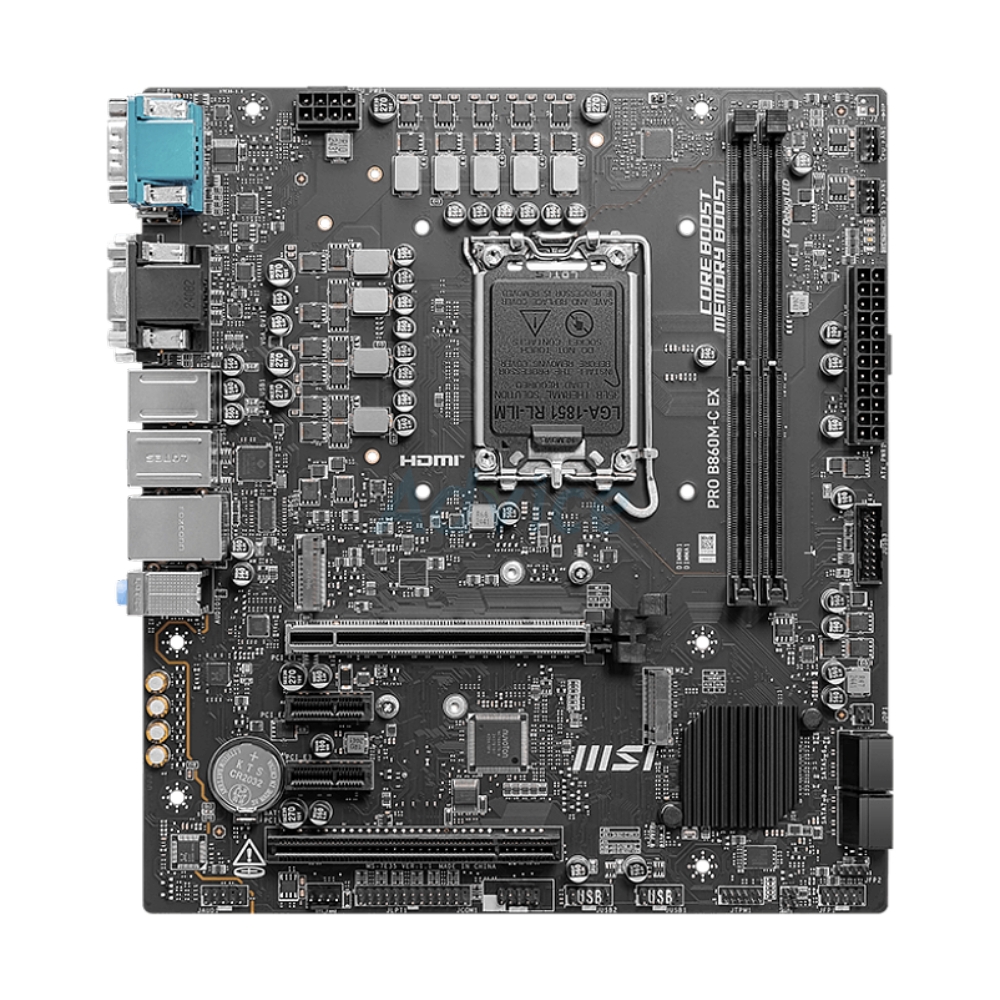

MAINBOARD (1851) MSI PRO B860M-C-EX DDR5
- Support CPU : Intel Core Ultra Processors (Series 2)
- Form Factor : Micro ATX
- Chipset : Intel B860 Chipset
- Memory Channel : Dual Channel DDR5 2DIMM
- Memory Support : up to 9066(O.C.)
- Memory MAX : 128GB
- M.2 Slot : 2 slots
- SATA III 6G : 4 ports
- PCIe 5.0x16 : 1 slot
- Lan Port : 2.5 Gigabit LAN
- Core Boost: With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- EZ PCIe Clip II: Allows for easy removal of the graphics card by pressing the tail-like lock with one finger, even in the cramped case spaces.
- Extended Connectivity: USB Type-C with DP-Alt, DisplayPort, HDMI, DVI and D-SUB
- Audio Boost: Reward your ears with studio-grade sound quality for the most immersive gaming experience
รายละเอียดสินค้า
อ้างอิงจาก : www.msi.com
ข้อมูลผลิตภัณฑ์
PRO B860M-C-EX DDR5
Supports Intel® Core™ Ultra Processors (Series 2)
Intel
1851
Intel B860
2 x DDR5 UDIMM, Maximum Memory Capacity 128GB
Memory Support DDR5 9066 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
Max. overclocking frequency:
• 1DPC 1R Max speed up to 9066+ MT/s
• 1DPC 2R Max speed up to 7200+ MT/s
Supports Intel® POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel® XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM
• The DIMM slots on this motherboard only have single-sided latches.
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
9066
1 x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
1 x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz*
1 x Type-C DisplayPort Supports DisplayPort 1.4 over USB Type-C®, maximum resolution of 4K 60Hz*
1 x DVI Support DVI-D, maximum resolution of 1920x1200 60Hz*
1 x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
**This motherboard limits the onboard graphics to support only four displays. If you utilize all five onboard graphics ports, the DVI-D port will be disabled.
None
Realtek® ALC897 Codec
7.1-Channel High Definition Audio
1 x PCI-E x16 slot
2 x PCI-E x1 slot
1 x PCI slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)
PCIe 5.0
2 x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4 x SATA 6G
*Please refer to the manual for M.2 SSD heatsink restrictions.
RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
NVMe
2
2 x USB 2.0 (Rear)
4 x USB 2.0 (Front)
4 x USB 5Gbps Type A (Rear)
2 x USB 5Gbps Type A (Front)
1 x USB 10Gbps Type A (Rear)
1 x USB 10Gbps Type C (Rear)
1 x Power Connector(ATX_PWR)
1 x Power Connector(CPU_PWR)
1 x CPU Fan
2 x System Fan
2 x Front Panel (JFP)
1 x Chassis Intrusion (JCI)
1 x Front Audio (JAUD)
1 x Printer Port (JLPT)
1 x Com Port (JCOM)
1 x TPM pin header(Support TPM 2.0)
4 x USB 2.0 ports
2 x USB 5Gbps Type A ports

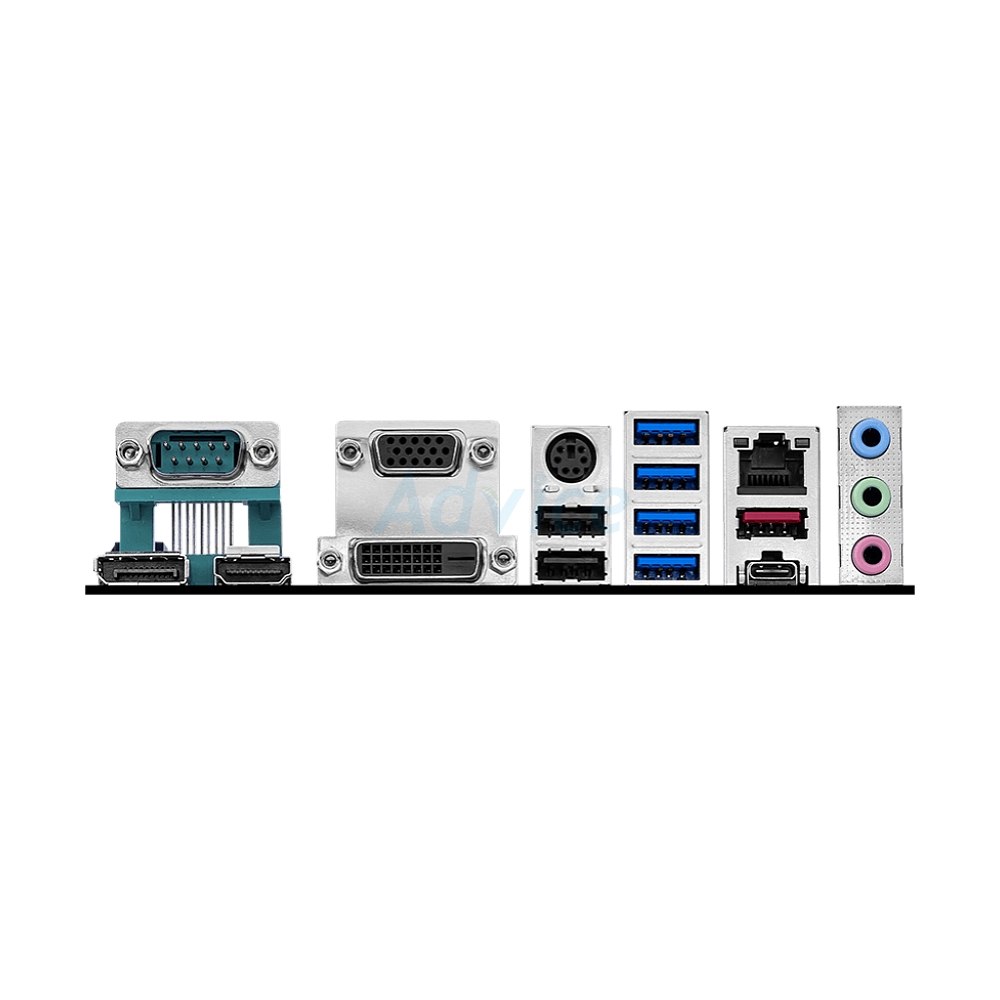

2 x USB 2.0
4 x USB 5Gbps Type-A
1 x USB 10Gbps Type-A
1 x USB 10Gbps Type-C (Type-C Display port)
1 x VGA
1 x DVI-D
1 x HDMI™
1 x DisplayPort
Audio Connectors
Keyboard / Mouse
COM Port
2.5G LAN
Realtek® 8125 2.5Gbps LAN
None
Micro ATX
N/A
N/A
LED FEATURE
4 x EZ Debug LED
1 x EZ Memory Detection LED
N/A
Support for Windows® 11 64-bit
N/A
