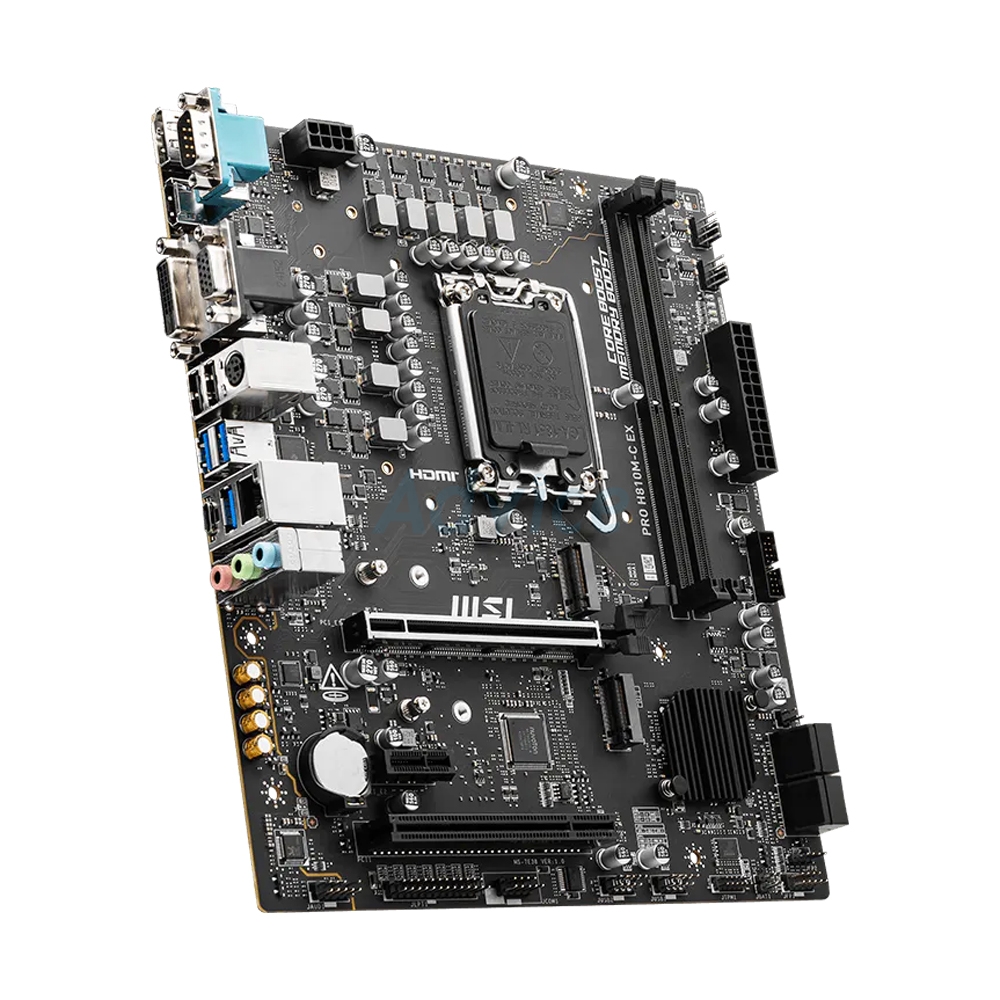

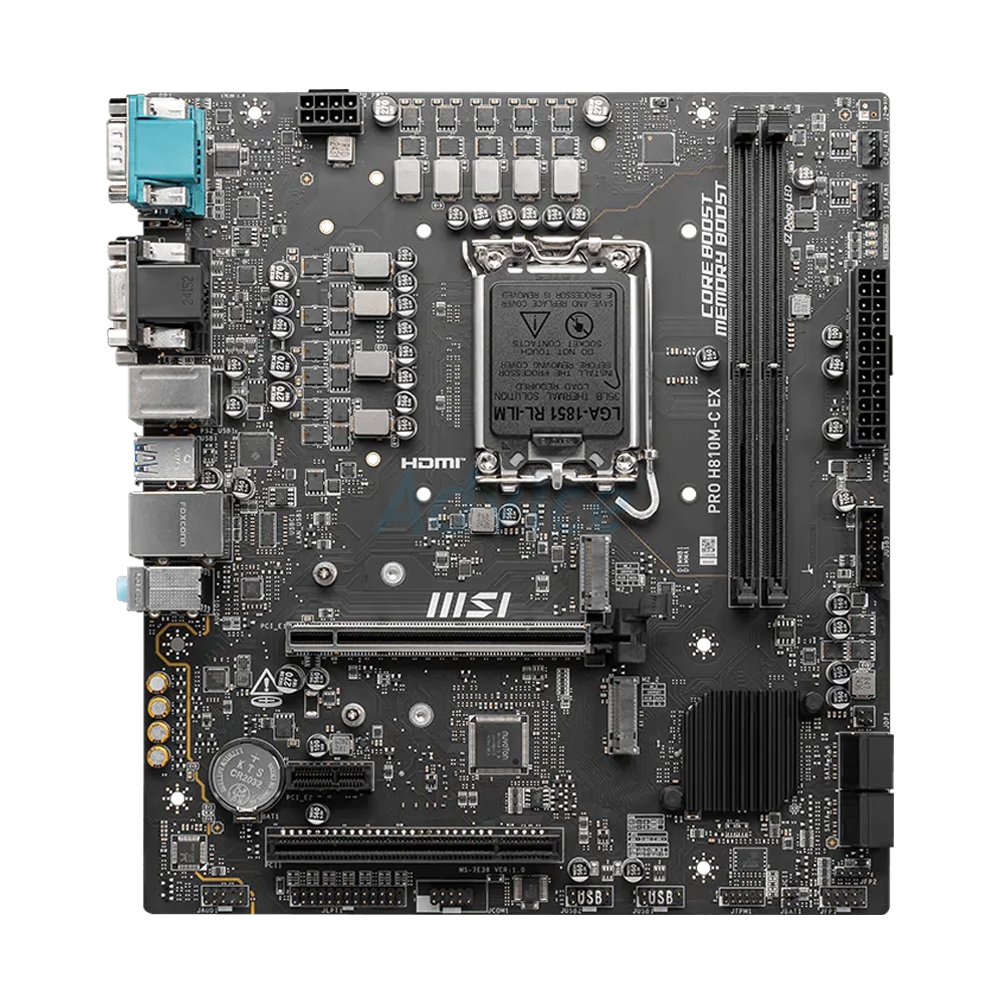

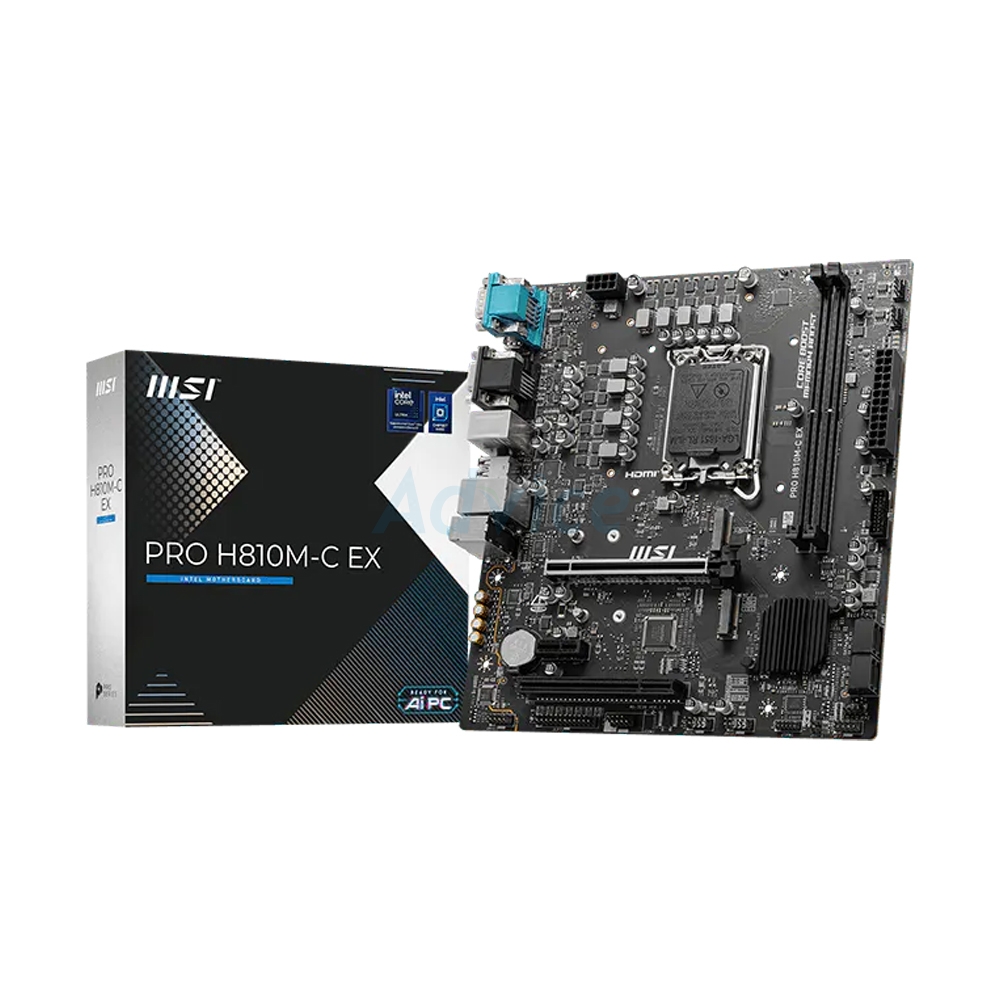

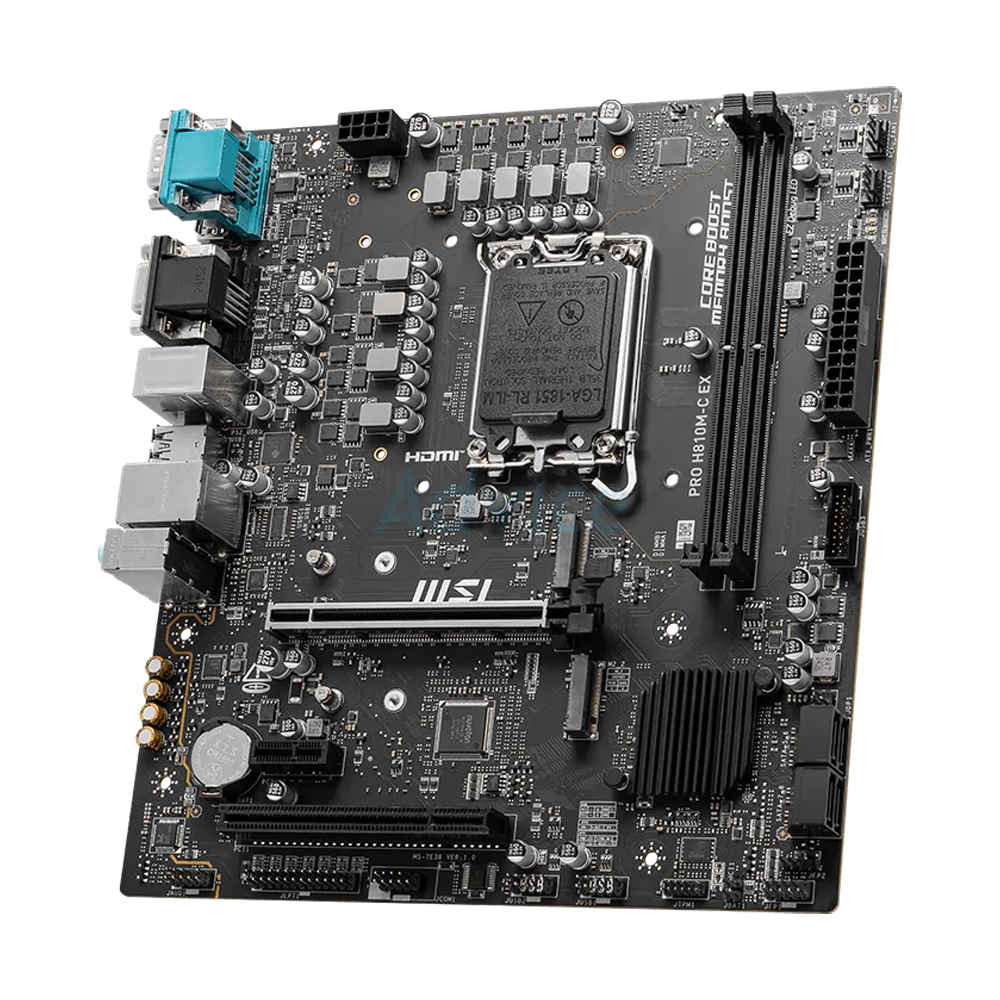

MAINBOARD (1851) MSI PRO H810M-C-EX DDR5
- Support CPU : Intel Core Ultra Processors (Series 2)
- Form Factor : Micro ATX
- Chipset : Intel H810 Chipset
- Memory Channel : Dual Channel DDR5 2DIMM
- Memory Support : up to 6400
- Memory MAX : 128GB
- M.2 Slot : 2 slots
- SATA III 6G : 4 ports
- PCIe 5.0x16 : 1 slot
- Lan Port : 1 Gigabit LAN
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost : Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- EZ PCIe Clip II : Allows for easy removal of the graphics card by pressing the tail-like lock with one finger, even in the cramped case spaces.
- Extended Connectivity : USB Type-C with DP-Alt, DisplayPort, HDMI, DVI and D-SUB
- Audio Boost : Reward your ears with studio grade sound quality for the most immersive gaming experience
รายละเอียดสินค้า
อ้างอิงจาก : www.msi.com
ข้อมูลผลิตภัณฑ์
PRO H810M-C-EX DDR5
Supports Intel® Core™ Ultra Processors (Series 2)
LGA 1851
Intel
1851
Intel H810
2 x DDR5 UDIMM, Maximum Memory Capacity 128GB
Memory Support DDR5 6400 - 4800 (JEDEC) MT/s
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6400 MT/s
• 1DPC 2R Max speed up to 6400 MT/s
Supports Intel® POR Speed and JEDEC Speed
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
• The DIMM slots on this motherboard only have single-sided latches.
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
6400
1 x HDMI™
Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
1 x DisplayPort
Support DisplayPort 1.4, maximum resolution of 4K 60Hz*
1 x Type-C DisplayPort
Supports DisplayPort 1.4 over USB Type-C®, maximum resolution of 4K 60Hz*
1 x DVI
Support DVI-D, maximum resolution of 1920x1200 60Hz*
1 x VGA
Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
**This motherboard limits the onboard graphics to support only four displays. If you utilize all five onboard graphics ports, the DVI-D port will be disabled.
None
Realtek® ALC897 Codec
7.1-Channel High Definition Audio
1 x PCI-E x16 slot
1 x PCI-E x1 slot
1 x PCI slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
PCIe 5.0
2 x M.2
M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices
4 x SATA 6G
NVMe
2
2 x USB 2.0 (Rear)
4 x USB 2.0 (Front)
3 x USB 5Gbps Type A (Rear)
2 x USB 5Gbps Type A (Front)
1 x USB 10Gbps Type C (Rear)
1 x Power Connector(ATX_PWR)
1 x Power Connector(CPU_PWR)
1 x CPU Fan
1 x System Fan
2 x Front Panel (JFP)
1 x Chassis Intrusion (JCI)
1 x Front Audio (JAUD)
1 x Printer Port (JLPT)
1 x Com Port (JCOM)
1 x TPM pin header(Support TPM 2.0)
4 x USB 2.0 ports
2 x USB 5Gbps Type A ports

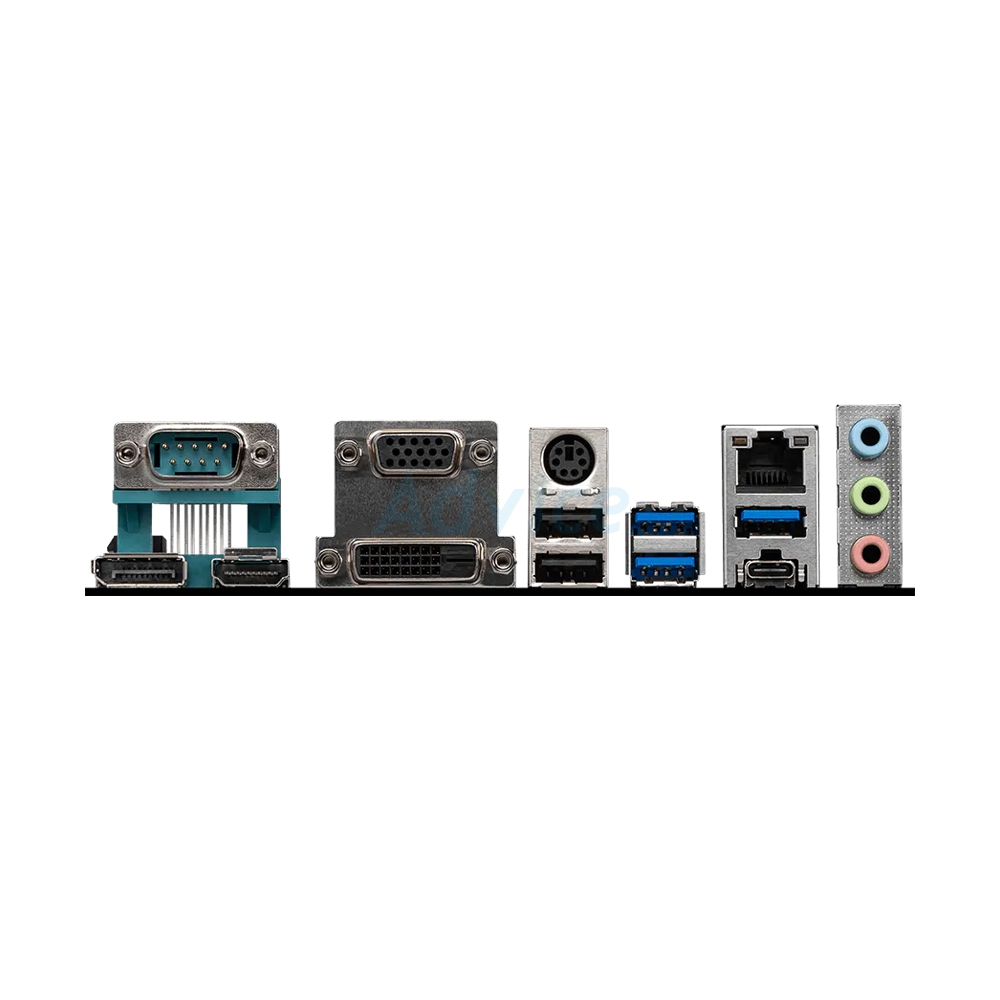

2 x USB 2.0
3 x USB 5Gbps Type-A
1 x USB 10Gbps Type-C (Type-C Display port)
1 x VGA
1 x DVI-D
1 x HDMI™
1 x DisplayPort
1 x COM Port
Audio Connectors
Keyboard / Mouse
1G LAN
Intel® I219V 1Gbps LAN controller
None
Micro ATX
N/A
N/A
LED FEATURE
4 x EZ Debug LED
1 x EZ Memory Detection LED
N/A
Support for Windows® 11 64-bit
N/A
