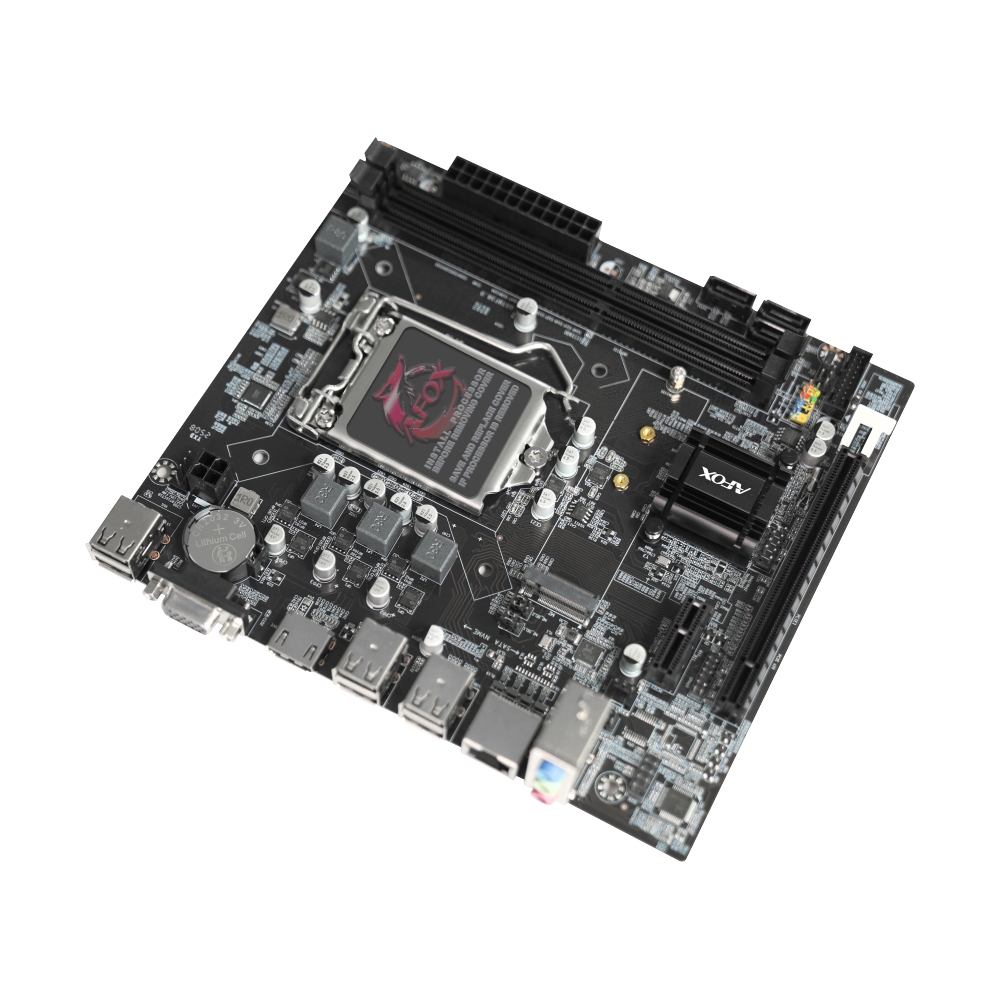

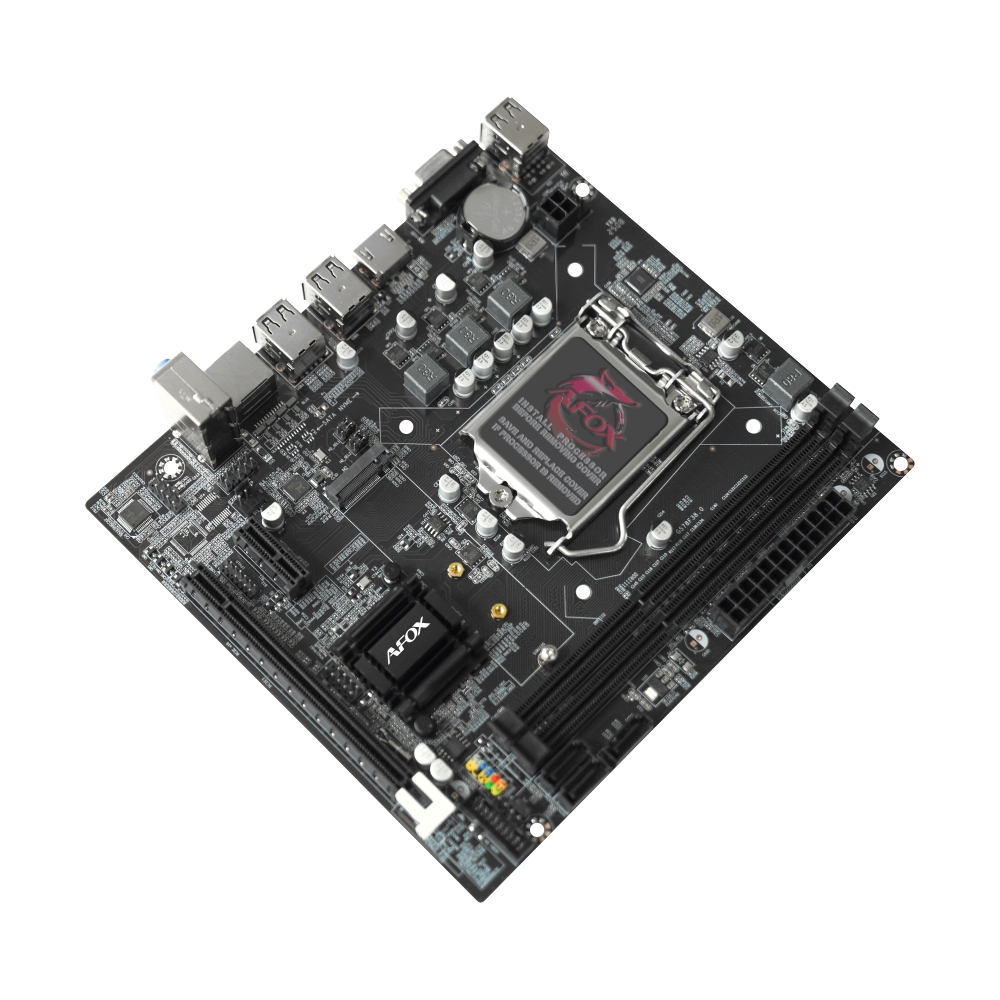

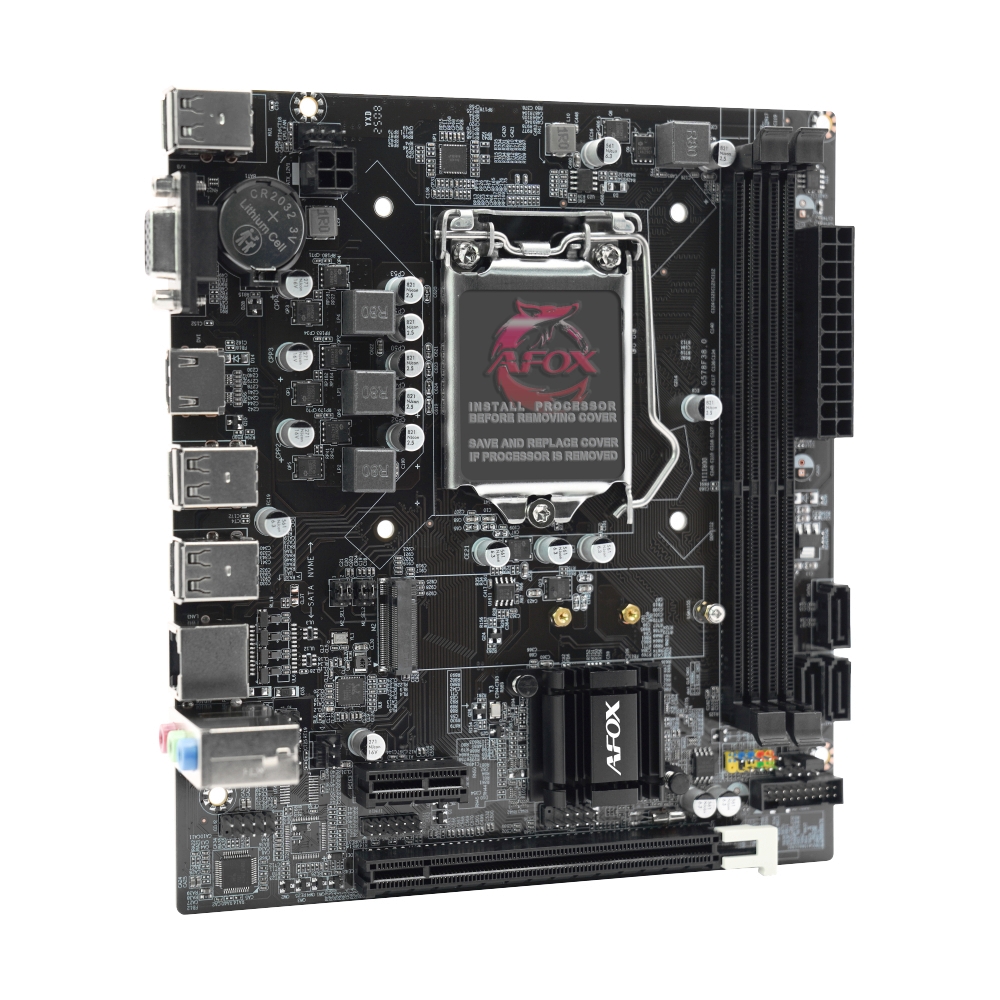

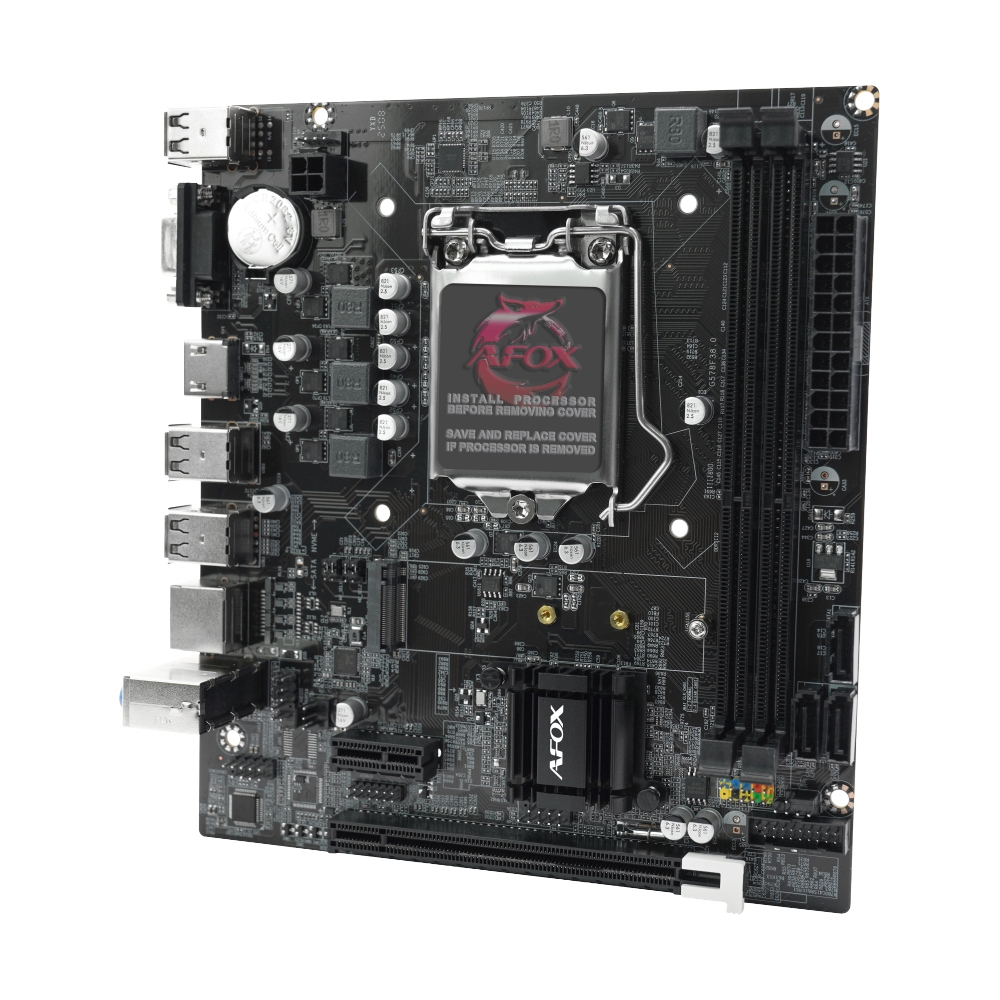

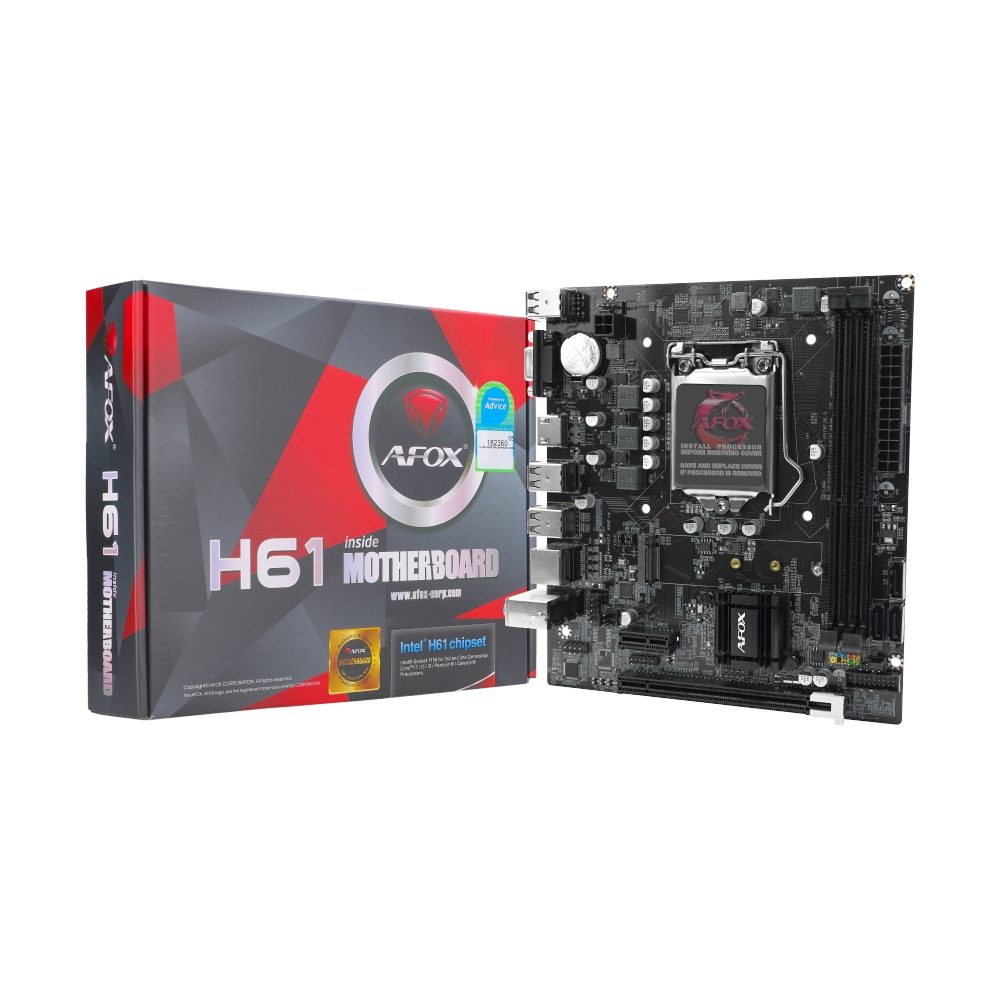

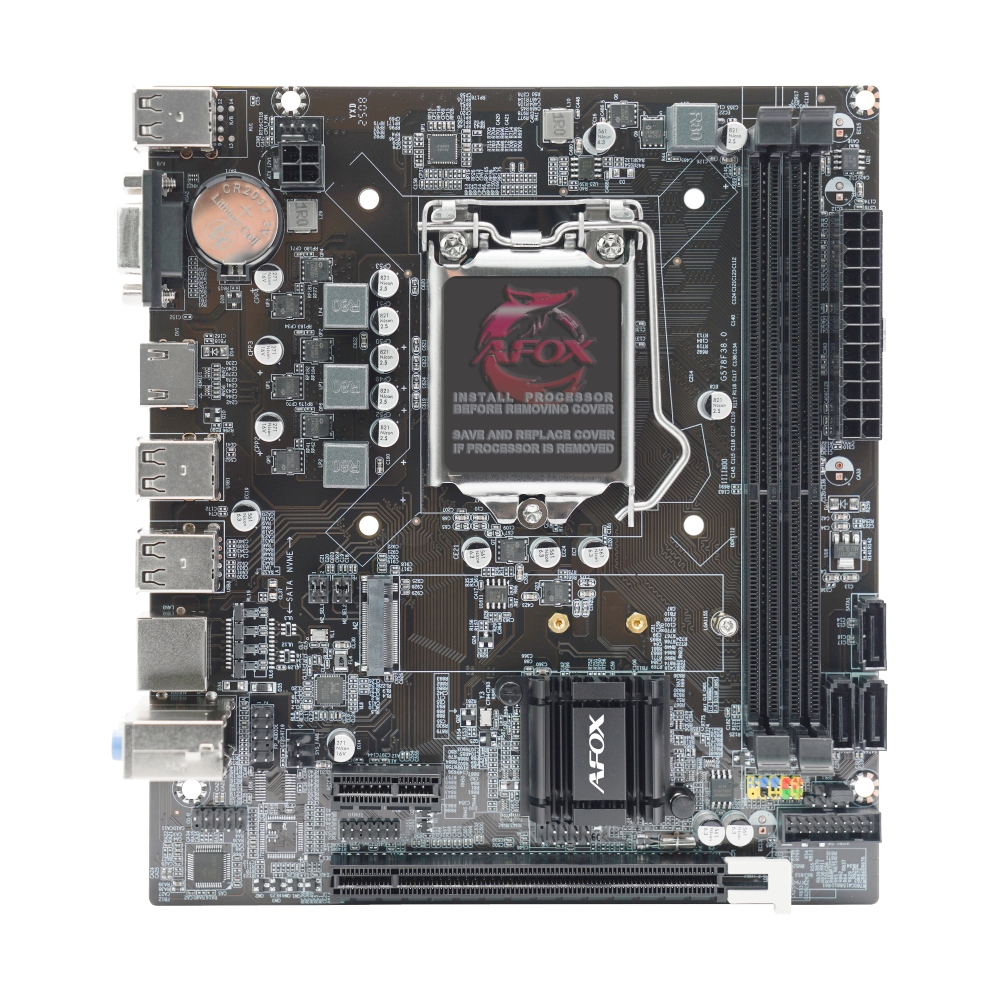

MAINBOARD (1155) AFOX H61-MA2-V2 DDR3
- Support CPU : 2, 3 Gen Intel Core Processors, Pentium Gold and Celeron Processors (CPU up to 95 watts)
- Form Factor : Micro ATX
- Chipset : Intel H61 Chipset
- Memory Channel : Dual Channel DDR3 2DIMM
- Memory Support : up to 1600
- Memory MAX : 16GB
- M.2 Slot : 1 slot
- SATA III 6G : 3 ports
- PCIe 1.0x16 : 1 slot
- Lan Port : 1 Gigabit LAN
- High speed USB interface
- High quality audio special capacitor+independent audio block LED isolation line
- Design of Gigabit high-speed network card
- Excellent in multitasking, a wise choice for gaming players
- Stable power supply, smooth game performance
ข้อมูลผลิตภัณฑ์
IH61D3-MA2-V2 DDR3
CPU Intel Gen2-3 Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® Processors
(CPU up to 95 watts)
Intel
1155
Intel H61
2 x Memory Slots (Max. capacity of system memory 16GB)
Dual Channel DDR3 1066 / 1333 / 1600MHz
1600
Integrated Graphics Processor
1 x HDMI Port
1 x D-Sub (VGA) Port
None
Realtek 662 & 887 on board, Supports 6-channel audio-out
1 x PCI Express x16 slot
1 x PCI Express x1 slot
PCIe 1.0
1 x M.2 (PCIe NVMe Gen3 x4 & SATA3)
3 x SATA3
NVMe, SATA
1
Internal
1 x USB 2.0 pinheader (supports additional 2 USB 2.0s)
1 x USB 3.0 pinheader (supports additional 2 USB 2.0s)
Back Panel
6 x USB 2.0 Ports
1 x USB 2.0 pinheader (supports additional 2 USB 2.0s)
1 x USB 3.0 pinheader (supports additional 2 USB 2.0s)
1 x Front Panel Audio pinheader
1 x HDMI Port
1 x D-Sub (VGA) Port
6 x USB 2.0 Ports
1 x RJ-45 LAN Port
3 x HD Audio Jacks (Line in / Front Speaker / Microphone)
Realtek RTL8111 Gigabit Ethernet on board
None
Micro ATX
N/A
UEFI BIOS
N/A
N/A
Microsoft Windows 8 compatible
1 x SATA II cable
1 x I/O Rear Panel
1 x User Manual
1 x Driver CD
