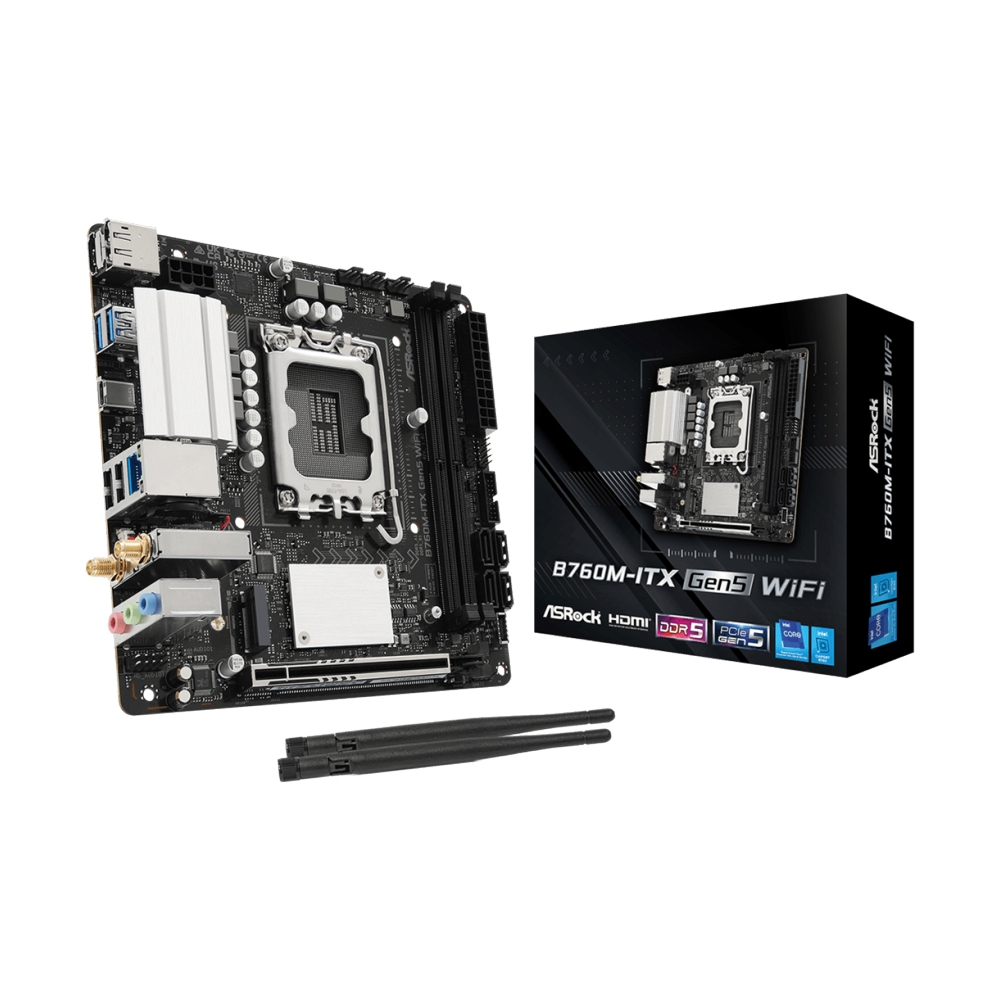

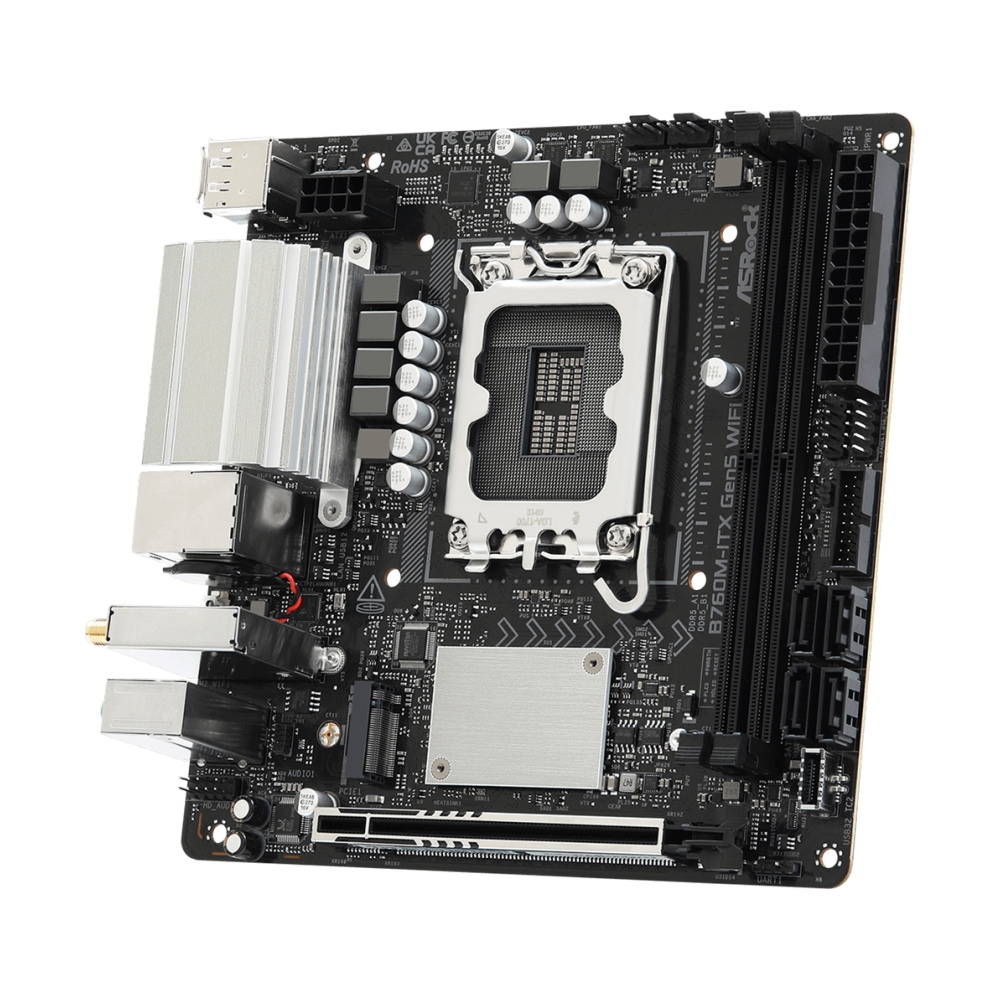

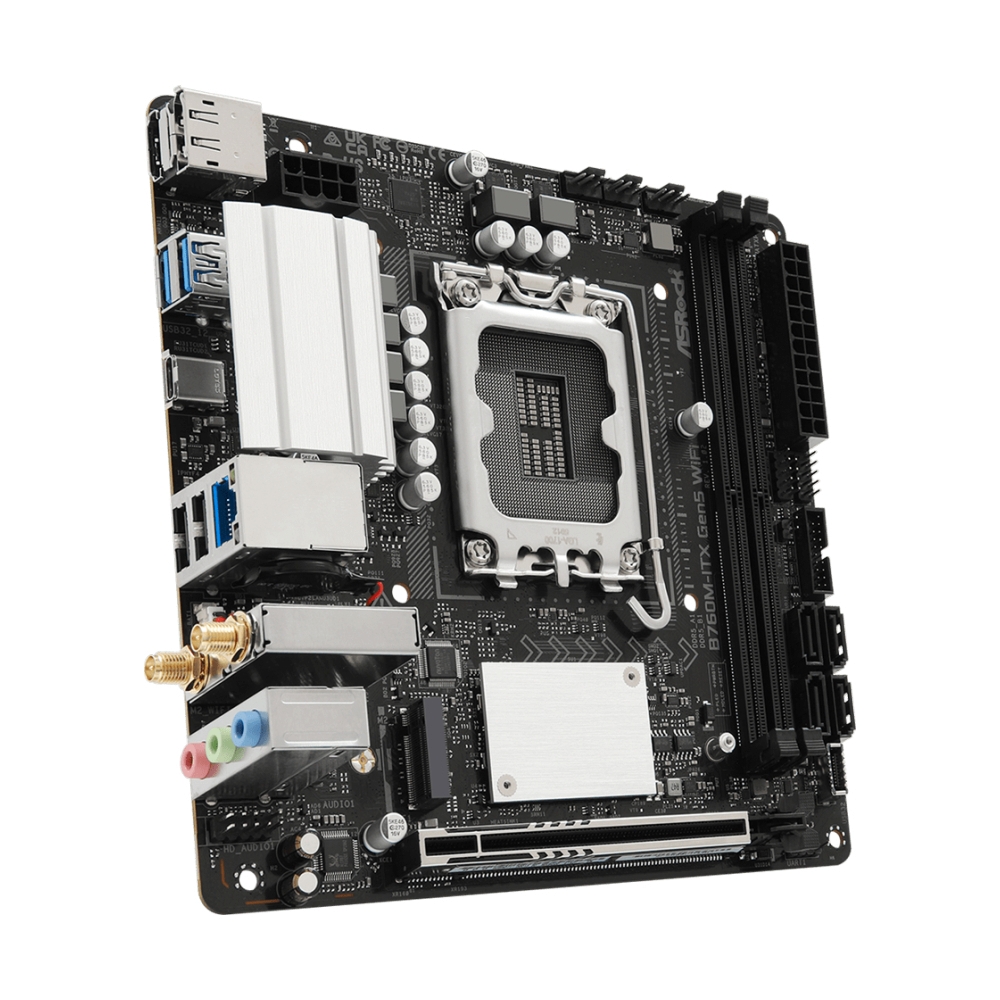

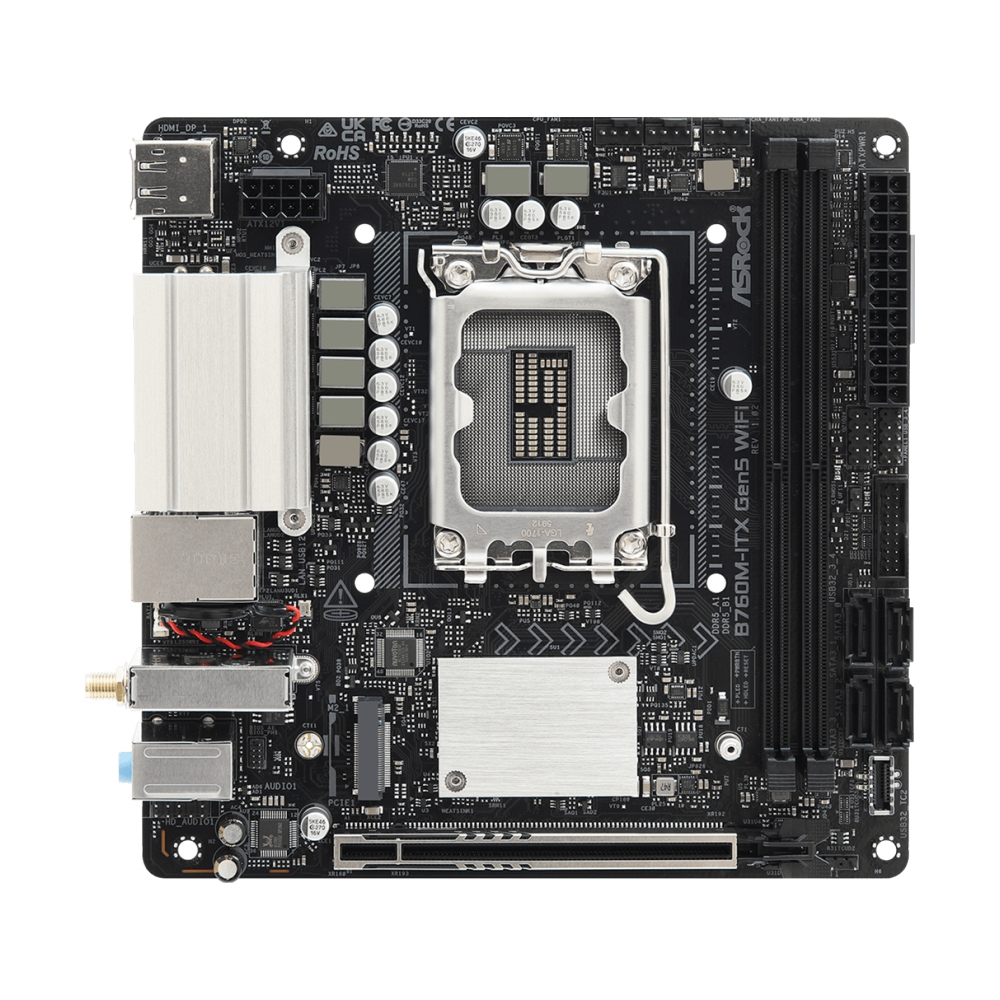

MAINBOARD (1700) ASROCK B760M-ITX GEN5 WIFI DDR5

B760M-ITX GEN5 WIFI DDR5

Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
Supports Intel® Hybrid Technology
Supports Intel® Turbo Boost Max 3.0 Technology
Supports Intel® Thermal Velocity Boost (TVB)
Supports Intel® Adaptive Boost Technology (ABT)

Intel

1700

Intel B760

Dual Channel DDR5 Memory Technology
2 x DDR5 DIMM Slots
Supports DDR5 non-ECC, un-buffered memory up to 7800+(OC)*
Max. capacity of system memory: 128GB*
Supports Intel® Extreme Memory Profile (XMP) 3.0

*1DPC 1R Up to 7800+ MHz (OC), 5600 MHz Natively.
1DPC 2R Up to 6400+ MHz (OC), 5200 MHz Natively.

7800

Intel® Xe Graphics Architecture (Gen 12)
1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz

*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

None

7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Nahimic Audio

CPU:
- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*

Chipset:
- 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)

*Supports NVMe SSD as boot disks

PCIe 5.0

CPU:
- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*

Chipset:
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
- 4 x SATA3 6.0 Gb/s Connectors

*Supports Intel® Volume Management Device (VMD)
Supports NVMe SSD as boot disks

RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

NVMe

2

Chipset:
2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front)
4 x USB 3.2 Gen1 (2 Rear, 2 Front)
4 x USB 2.0 (2 Rear, 2 Front)

*All USB ports support ESD Protection

1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)*
1 x Chassis Fan Connector (4-pin) (Smart Fan Speed Control)*
1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
1 x Front Panel Audio Connector
1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
1 x Front Panel Type C USB 3.2 Gen1 Header

*CPU_FAN1 and CHA_FAN2 support the fan power up to 1A (12W).
**CHA_FAN1/WP support the fan power up to 2A (24W).
CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.

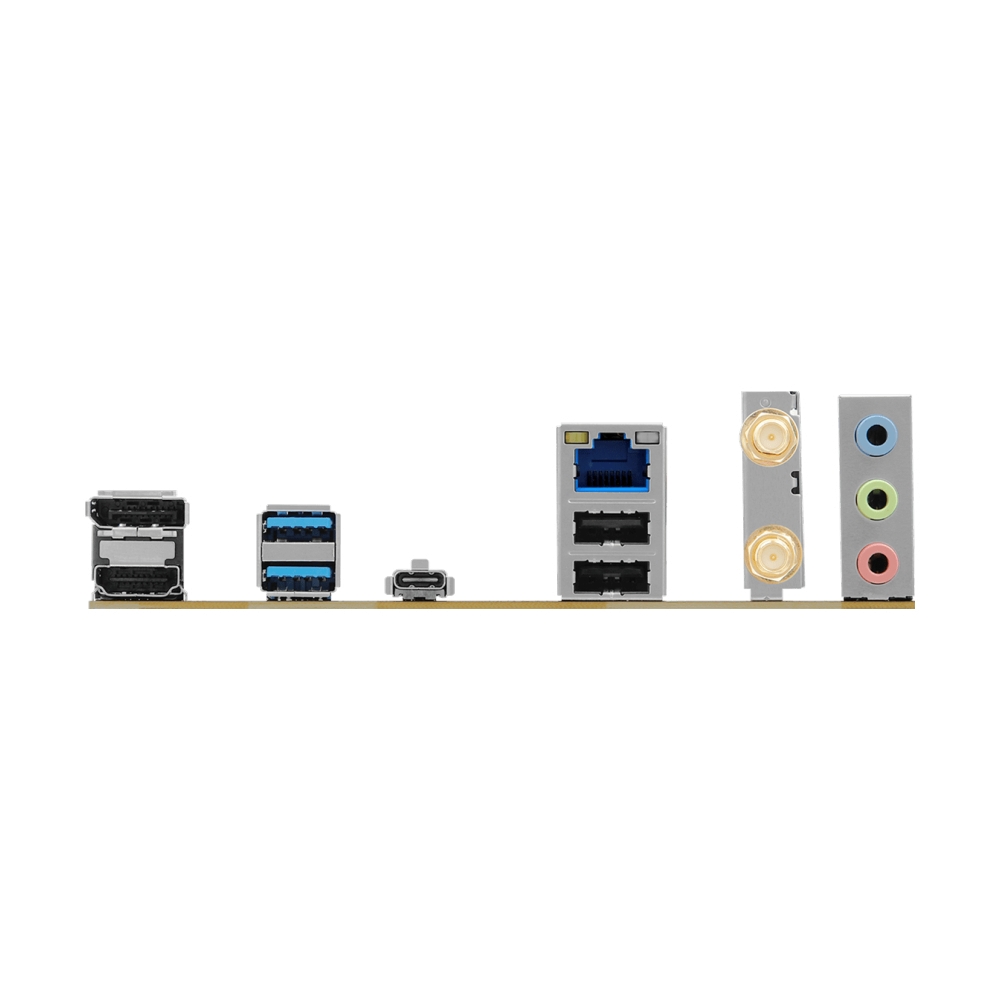

2 x Antenna Ports
1 x HDMI Port
1 x DisplayPort 1.4
1 x USB 3.2 Gen1 Type-C Port
2 x USB 3.2 Gen1 Ports
2 x USB 2.0 Ports
1 x RJ-45 LAN Port
HD Audio Jacks: Line in / Front Speaker / Microphone

2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Dragon RTL8125BG

Supports Dragon 2.5G LAN Software
- Smart Auto Adjust Bandwidth Control
- Visual User Friendly UI
- Visual Network Usage Statistics
- Optimized Default Setting for Game, Browser, and Streaming Modes
- User Customized Priority Control

802.11axe Wi-Fi 6E Module
Supports IEEE 802.11a/b/g/n/ac/ax/axe
Supports Dual-Band 2x2 with extended 6GHz band support*
2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
Supports Bluetooth 5.3
Supports MU-MIMO

*The 6GHz band of Wi-Fi 6E module is supported by Microsoft Windows® 11 only. The availability of the 6GHz band will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available.
A 6GHz compatible router is required for 6E functionality.

Mini ITX

N/A

128Mb AMI UEFI Legal BIOS with GUI support

Superb Productivity
- PCIe Gen5 (Graphics)
- Dual Channel DDR5

Rock-Solid Durability
- 5+1+1 Power Phase, Dr.MOS for VCore+GT

Ultrafast Gaming
- 2.5G LAN, 802.11axe Wi-Fi 6E Module

EZ Update
- ASRock Auto Driver Installer

Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock Dragon 2.5G LAN Software*

UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
- ASRock Easy RAID Installer

*These utilities can be downloaded from ASRock Live Update & APP Shop.

Microsoft Windows® 10 64-bit / 11 64-bit

1 x I/O Shield
2 x SATA Data Cables
2 x ASRock WiFi 2.4/5/6 GHz Antennas
2 x Screws for M.2 Sockets
